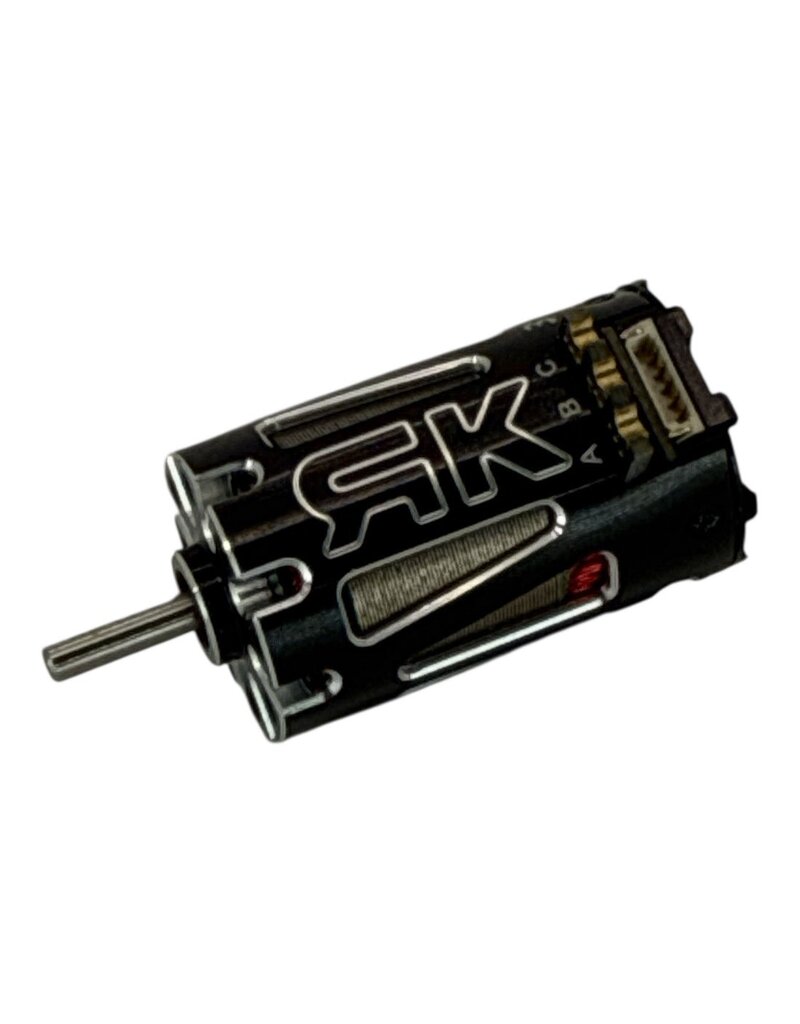

MARKA RACING PRODUCTS MRK-MZR-2500-V3 MINI-Z V3 SENSORED BRUSHLESS MOTOR 2500KV

Marka Racing 1:28 Mini-Z V3 Brushless Motor 2500kv (MZR-2500-V3)

Introducing the new Marka Racing sensored brushless motor - engineered specifically for competitive 1/28th scale racing. This Italian-designed motor features strategically placed ventilation openings in the can for enhanced cooling during extended run times.

High Advance Timing Design: The Marka Racing motor utilizes aggressive mechanical advance for strong acceleration and high top-end speed. To optimize performance and motor longevity, consider these ESC programming guidelines as a starting point:

Suggested gearing: 12T pinion / 53T spur

• Boost (Initial Timing): 5°
• Turbo (Max Timing): 10°

Suggested gearing: 14T pinion / 53T spur

• Boost (Initial Timing): 10°
• Turbo (Max Timing): 10°

Note: These are recommended baseline settings. Adjust gearing and timing based on your specific track layout, surface conditions, and driving style.

Important:

• Monitor motor temperature during use - high advance timing generates additional heat
• Never exceed 20° total combined timing (Boost + Turbo) to prevent motor damage and maintain performance
• Fine-tune timing settings based on track conditions and motor temperature

The high mechanical advance design delivers explosive throttle response and competitive straight-line speed when properly configured.
