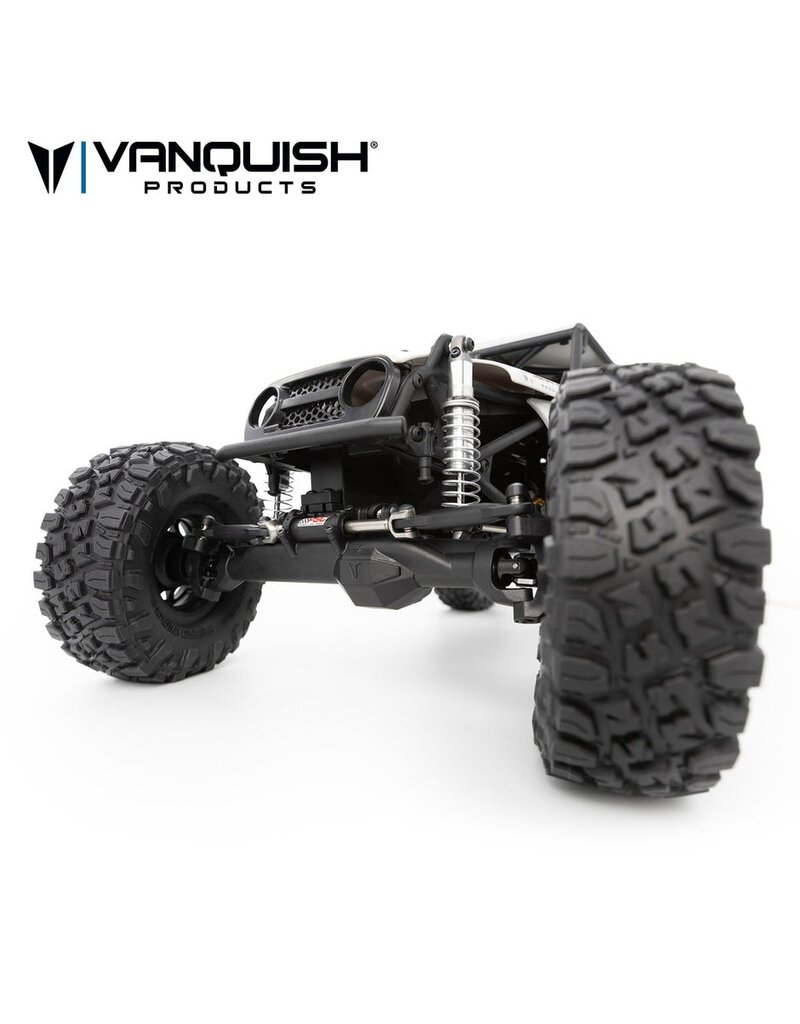

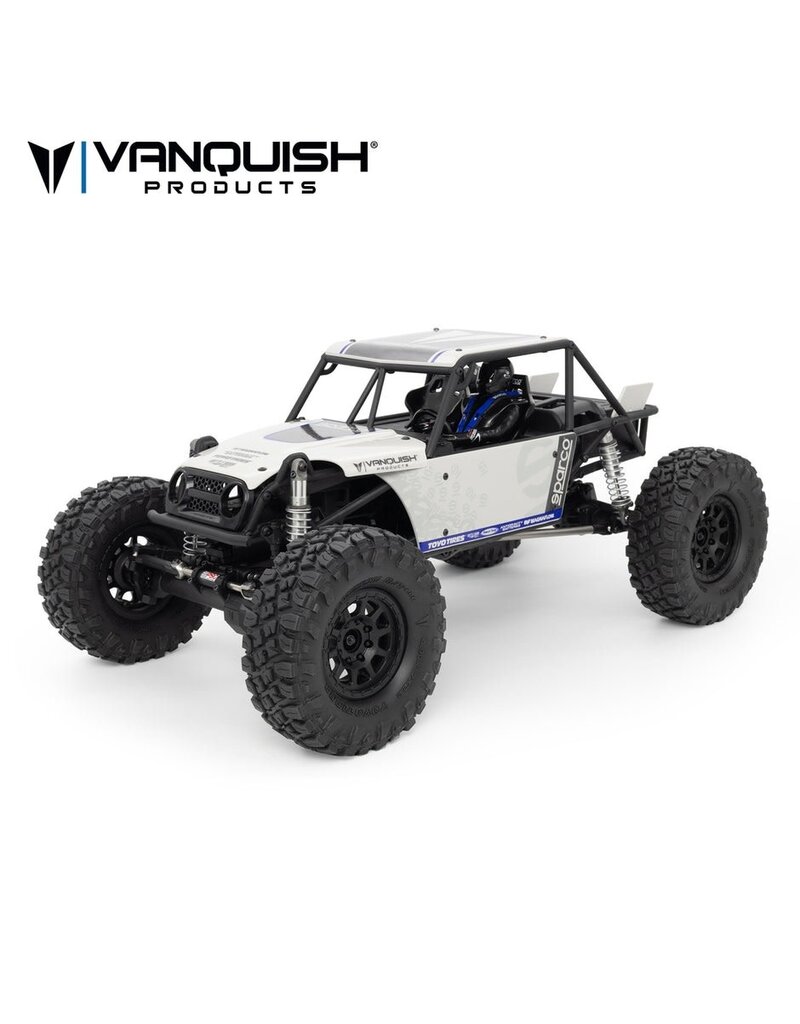

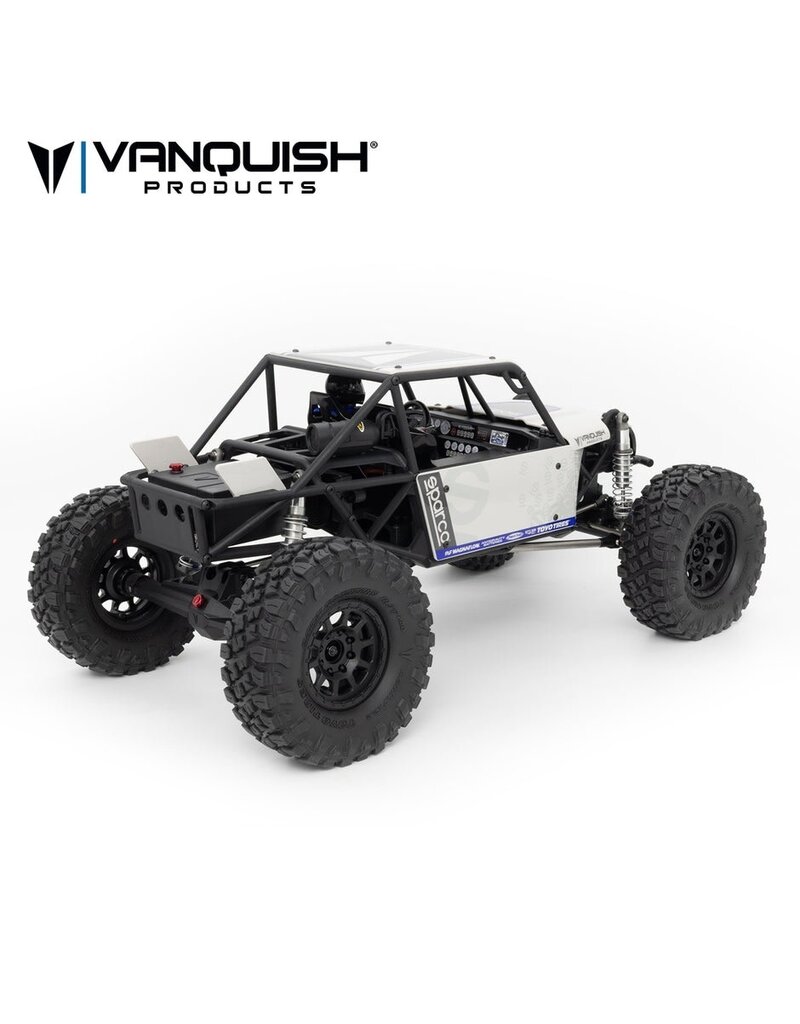

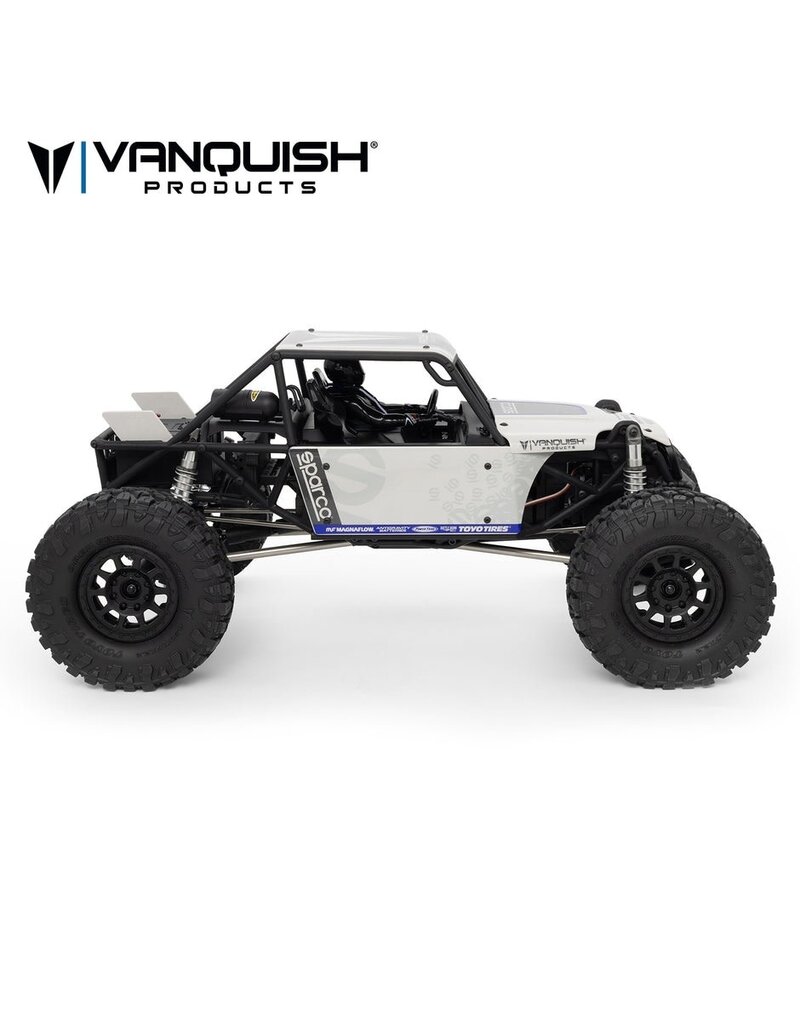

The Vanquish Products H10 Optic Sparco Brushless RTR is a purpose-built 1/10 scale trail buggy designed to combine exceptional trail performance, realistic scale details, and modern brushless power. Featuring a detailed molded ABS hard body, officially licensed Sparco interior components, exclusive H10 axles, and a factory-installed Hobbywing Fusion SE brushless power system, the H10 Optic is ready to tackle demanding terrain right out of the box.
Built around the proven Vanquish VFD transmission with 6% overdrive, the H10 delivers balanced handling, excellent climbing capability, and precise low-speed control. The innovative H10 Hydro Front Axle features a scale-inspired hydraulic ram steering system that conceals the steering servo behind the axle for enhanced scale realism while maintaining outstanding steering performance and durability.
The rugged Optic body utilizes injection-molded ABS construction and features a highly detailed interior complete with a Sparco-equipped driver figure, Sparco racing seat, helmet, and accessories. Quick-access battery compartments make trail-side battery changes fast and convenient.
Features
- Factory-installed Hobbywing Fusion SE Brushless System.
- Smooth and precise FOC brushless control for crawling and trail driving.
- Exclusive H10 front and rear axles with increased width for improved stability.

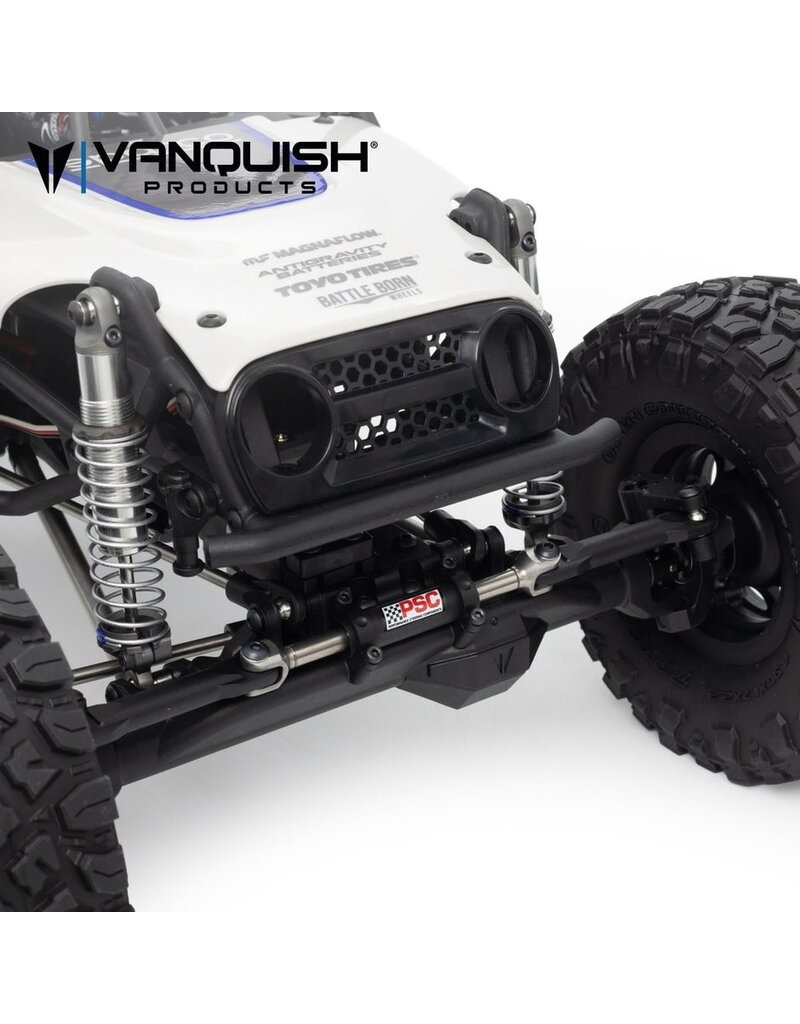

- Licensed PSC Hydro-Style Ram Steering System.
- Hidden axle-mounted steering servo for enhanced scale appearance.
- VDI Universal Front Axle Shafts with up to 47° steering angle.
- Proven VFD transmission with 6% overdrive.
- Durable injection-molded ABS hard body.

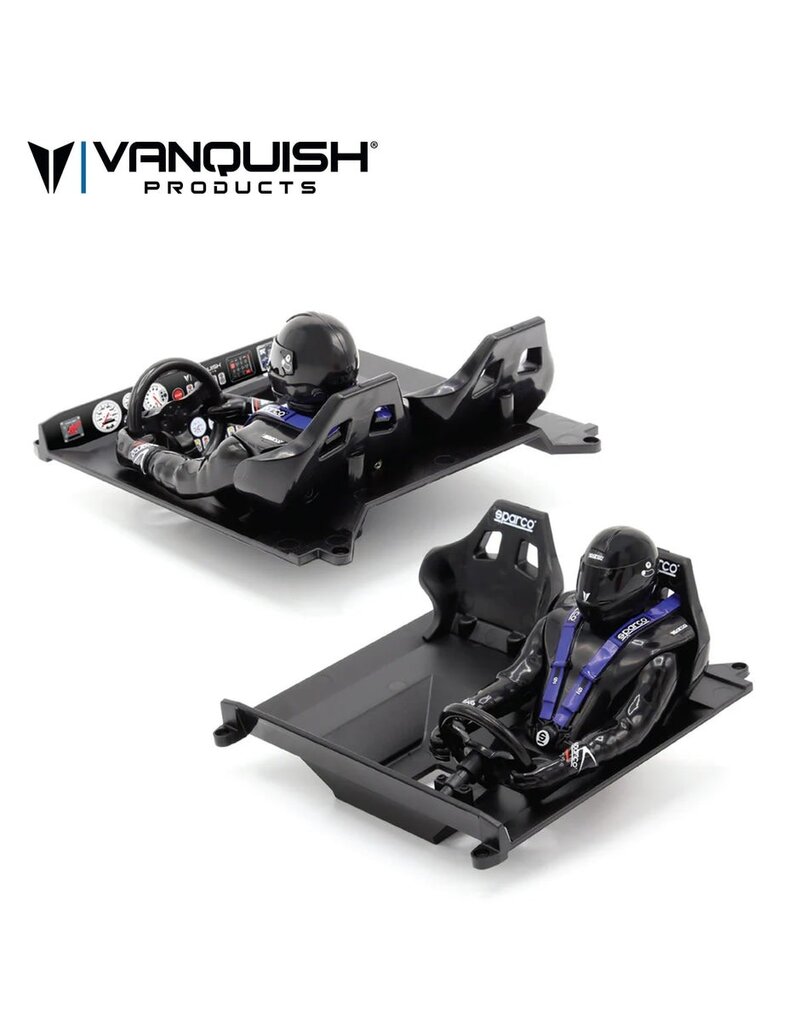

- Officially licensed Sparco interior components and driver figure.
- Detailed molded tube chassis and scale trail buggy styling.
- Quick-access battery compartments with pin-and-latch system.
- 4-Link front and rear suspension design.
- Yokohama Geolandar M/T Red Compound tires mounted on 1.9-inch wheels.
- Ready-to-Run brushless trail buggy platform.
Specifications
- Scale: 1/10
- Drive System: 4WD
- Wheelbase: 337mm (13.26")
- Overall Width: 206mm (8.11")
- Overall Height: 198mm (7.80")
- Axle Ratio: 3.75:1
- Spur Gear: 56T 32P
- Pinion Gear: 15T 32P
- Final Overdrive: 6%
- Front Overall Ratio: 41.3:1
- Rear Overall Ratio: 44.0:1
- Tire Size: 4.75" x 1.9"
- Weight (Without Battery): 2.43kg (5.35 lbs)
- Battery Compartment Size: 93mm x 36mm x 42mm
- Steering Angle: Up to 47°
Needed to Complete
- (1) 2S–3S LiPo Battery with XT60 Connector
- (1) Compatible Battery Charger
