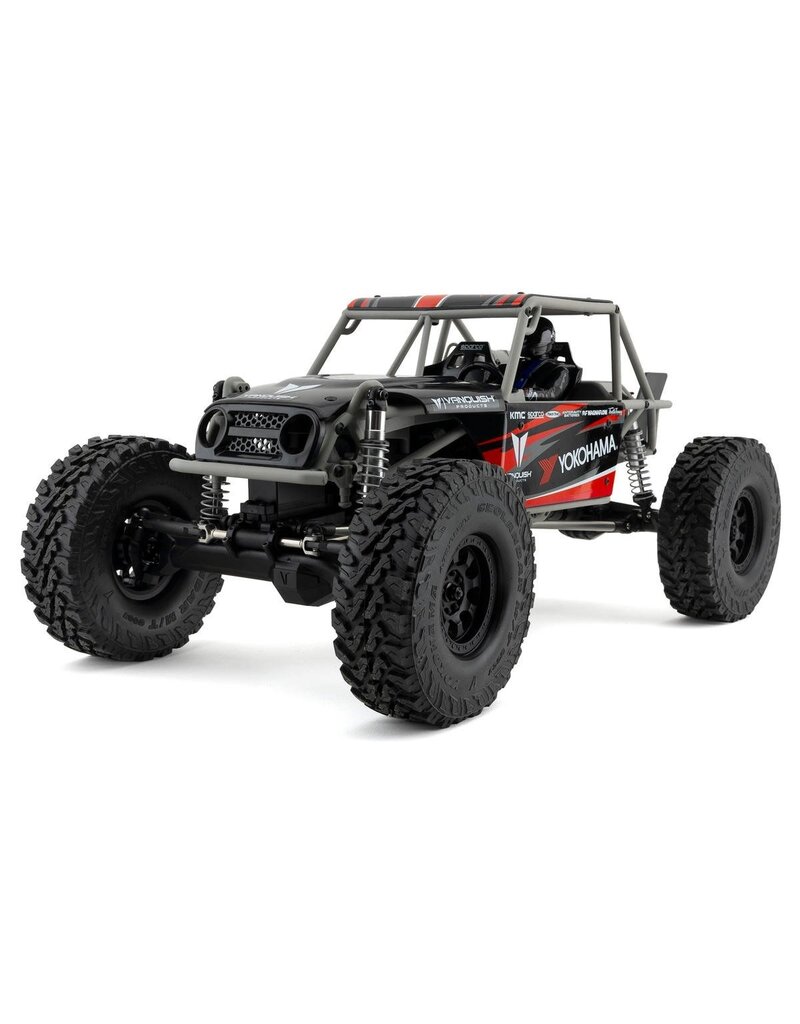

The Vanquish Products H10 Optic Yokohama RTR is a purpose-built 1/10 scale trail buggy that combines highly detailed scale styling with a capable crawler drivetrain. Featuring wide H10 axles, hydro-style front steering, a proven VFD transmission, officially licensed Yokohama Geolandar M/T tires, and a detailed Optic ABS hard body, the H10 is designed to deliver both realistic appearance and dependable trail performance.

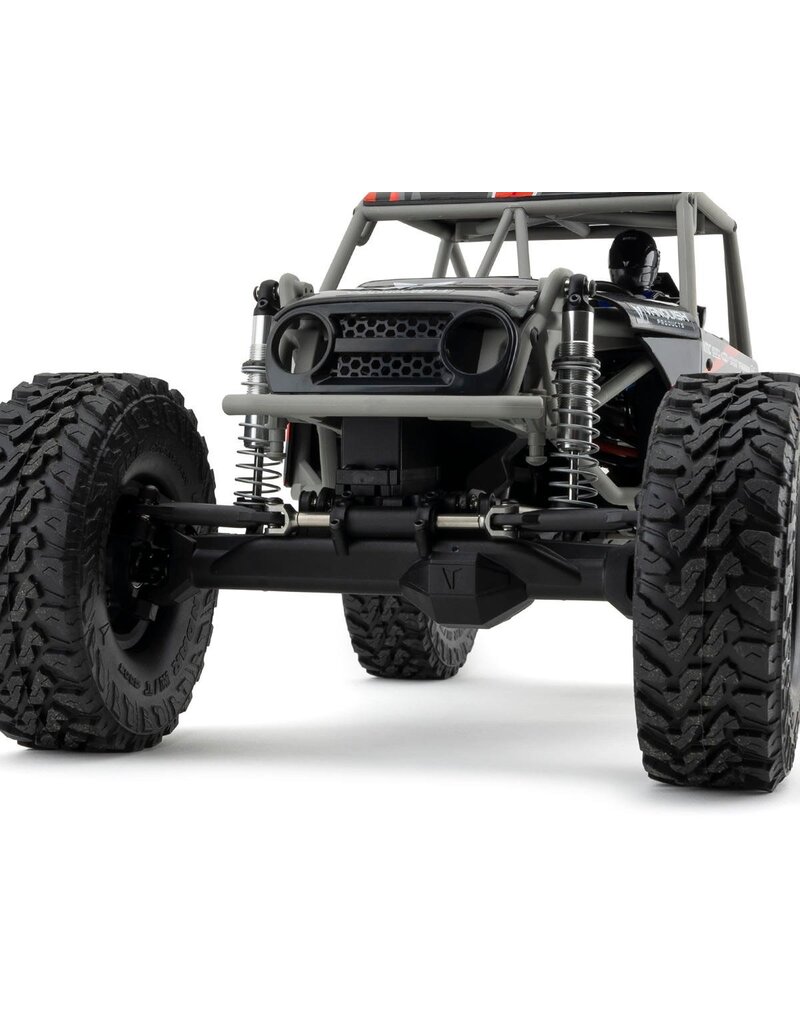

The H10 front axle uses a unique steering arrangement inspired by the double-ended hydraulic ram systems found on full-size off-road rigs. The steering servo is positioned behind the axle, while the hydro-style ram replaces a conventional exposed tie rod. This arrangement helps protect steering components while maintaining a clean scale appearance.
VDI universal front axle shafts provide up to 47° of steering angle, while the H10 axles are 0.600 inches wider than F10 straight axles for increased track width and stability.
At the center of the H10 is Vanquish Products' VFD transmission, which places the motor low and forward to help create predictable weight distribution on technical terrain. The drivetrain uses metal gears and full ball bearings, while a 6% front overdrive helps the front tires pull the vehicle through climbs and tight obstacles.

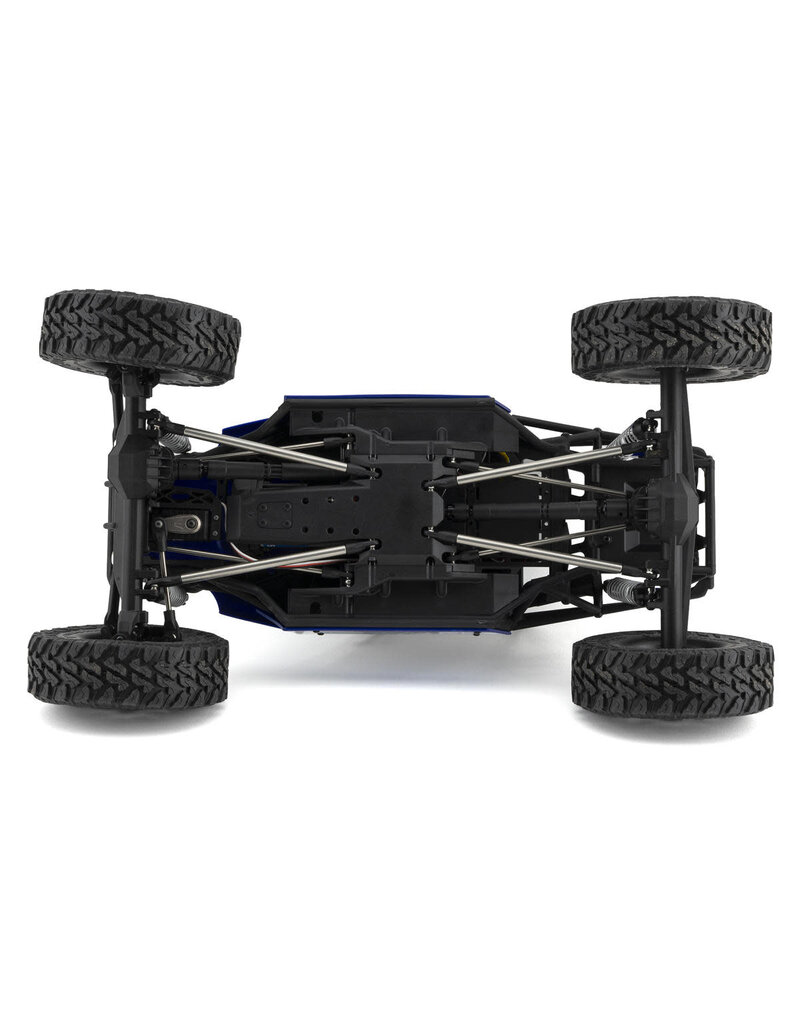

The H10 chassis features a narrow, molded high-impact nylon cage with short front and rear overhangs to help maximize approach and departure clearance. Injection-molded ABS Optic body panels provide the solid feel and detailed appearance of a hard-body trail buggy.

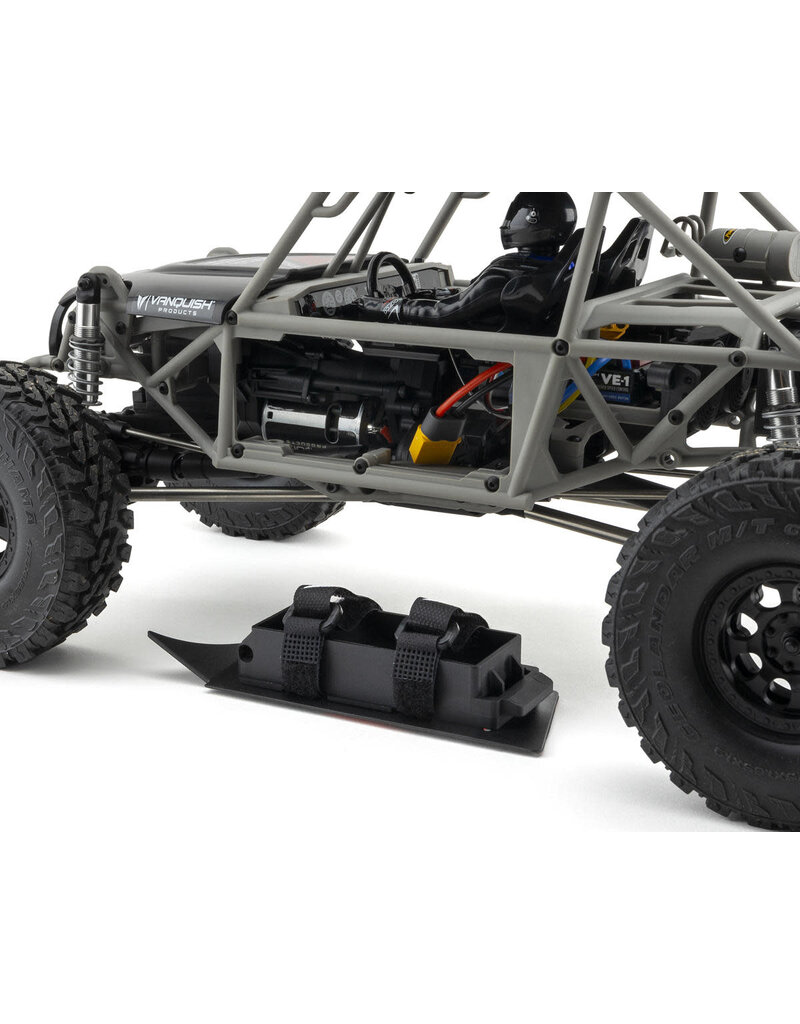

Removable side panels use a pin-and-latch system to provide quick access to the battery compartment without taking apart the body.
Officially licensed Yokohama Geolandar M/T tires measure 4.75 inches tall and use Vanquish Products' sticky Red compound. The aggressive tread provides traction across a variety of trail surfaces while adding authentic Yokohama styling to the H10.
Inside the Optic is a multi-piece molded ABS interior complete with a scale driver and officially licensed Sparco details. Scale components include a Sparco EVO L QRT seat, Competition Race Suit, Air Pro RF-5W helmet, Land+ gloves, and racing harness.
Battery Compartment: 93 x 36 x 42mm
| Specification | Details |
|---|---|
| Scale | 1/10 |
| Drivetrain | 4WD |
| Tire | Yokohama Geolandar M/T Red Compound |
| Tire Size | 4.75" x 1.9" |
| Axle Ratio | 3.75:1 |
| Pinion | 15T 32P |
| Spur Gear | 56T 32P |
| Width (Hex-to-Hex) | 8.11in (206mm) |
| Wheelbase | 13.26in (337mm) |
| Overall Height | 7.80in (198mm) |
| Front Overall Ratio | 41.3:1 |
| Rear Overall Ratio | 44.0:1 |
| Final Overdrive | 6% |
| Weight Without Battery | 5.35lbs (2.43kg) |
| Battery Compartment | 93 x 36 x 42mm |
