- High Performance Aluminum Upgrades
- 6061-T6 aluminum C-hubs
- 6061-T6 aluminum steering blocks
- 6061-T6 aluminum rear hub carriers
- 6061-T6 aluminum differential housings
- 6061-T6 aluminum motor mounts
- VXL-8s™ Waterproof Electronic Speed Control
- 8s LiPo compatible
- Built-in cooling fan
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
- Velineon® 1200XL Brushless Motor
- 4-pole 1275 Kv
- 5 mm output shaft
- Aluminum slip-on heat sink
- Dual motor cooling fans
- 50+ MPH with Two 4s LiPo Batteries and Optional Gearing (sold separately)
- Traxxas Stability Management® (TSM)
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz 2-Channel Radio System with Wireless Module
- Factory-installed telemetry sensors
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Clipless Body Mount System
- Quick one-handed installation and removal
- Uses pivoting rear latch mechanism
- Eliminates body posts and clips
- Reinforced for extra protection
- 8s Drivetrain
- Machined, hardened steel pinion and spur gear
- Full-time shaft-driven 4-wheel drive
- Heavy-duty steel CV driveshafts with laser etching
- Beefed-up steel differential output cups
- Splined aluminum center driveshaft
- Machined aluminum stub axles
- Torque-Biasing Center Drive™ absorbs shocks and distributes power
- 24 mm splined wheel hexes
- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Fixed Motor Mounting System
- Rigid aluminum motor mounts
- Preset gear mesh adjustments
- No manual adjustments required
- Motor retention separate from gear mesh

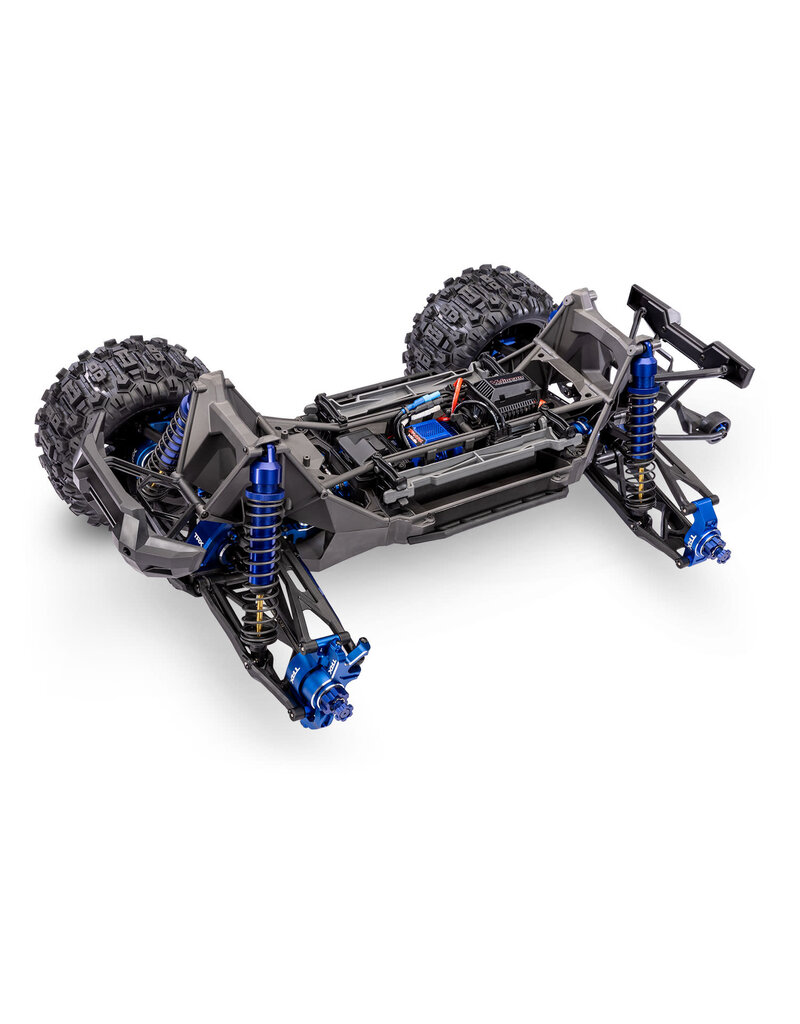

- Heavy-Duty Modular Composite Chassis
- Interlocking front and rear bulkheads
- Motor mounts to rear bulkhead to eliminate gear crunching flex
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt and grit
- Snap-Lock Battery Retention System
- No body clips or hook and loop straps
- Battery hold-downs pivot for easy access
- Adjustable for battery size
- More secure than conventional retention systems
- Integrated into chassis top brace for improved battery tray and chassis stiffness
- Bumpers
- Front energy absorbing rubber impact bumper
- Lower front and rear skids for impact and abrasion resistance
- Integrated nerf bars for side impact resistance
- Steering
- 6061-T6 aluminum steering bellcranks
- 2085RL high-output metal-gear steering servo
- 650 oz-in torque at 6.0 volts
- 0.13 sec/60° at 6.0 volts
- Double-shear aluminum servo horn
- Heavy-duty servo saver spring
- Suspension
- TUBES 7075-T6 Aluminum front toe links
- All critical suspension points have double shear strength
- High strength steel suspension pins used throughout
- Suspension pins retainers won’t come loose or “back-out”
- C-hub and steering block geometry maximizes steering angle
- Adjustable roll center
- Steel upper and lower tie bars
- Full contact sealed bearings used in exposed locations
- Aluminum GTX™ Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- Ultra-smooth TiN-coated 5.2 mm damper shafts
- Lower seal cartridge includes integrated wiper seal combination
- Adjustable aluminum upper spring retainer
- Aluminum shock caps with pivot balls
- Fixed shock locations
- Lower spring perches bolted on
- Wheels/Tires
- Massive 8.4″ Sledgehammer® belted tires
- Virtually eliminates ballooning at high speeds
- Open tread block design
- 2-piece foam insert
- High-strength glue and bead design
- Large, dual-diameter wheels

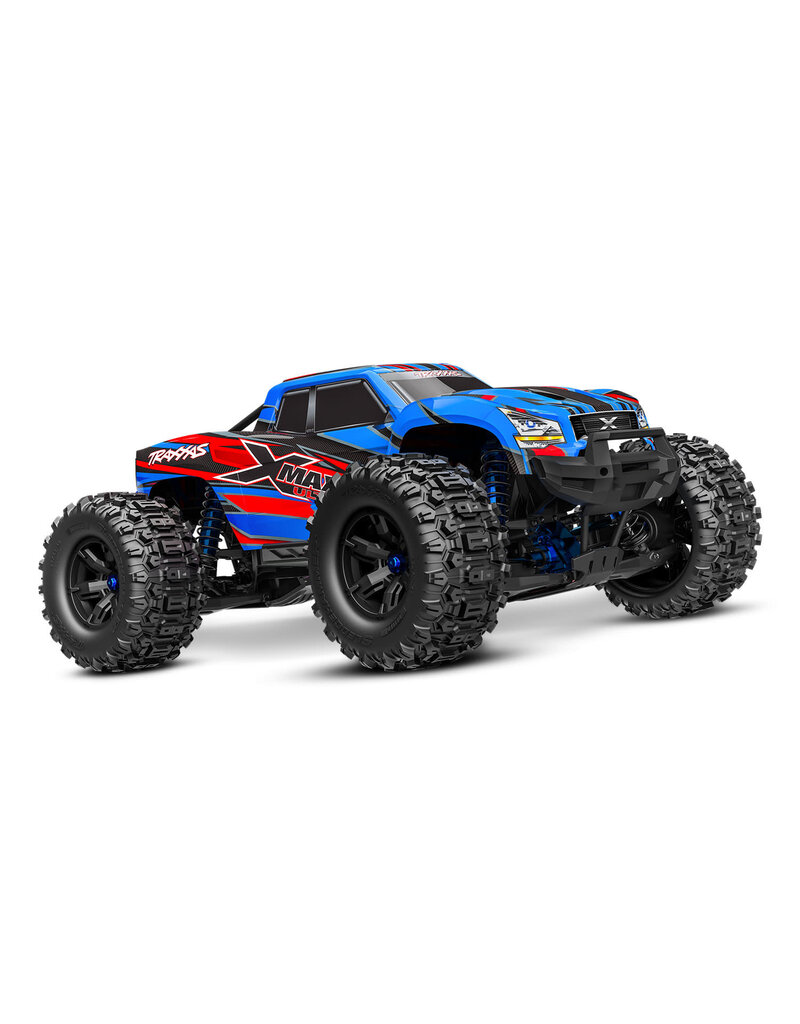

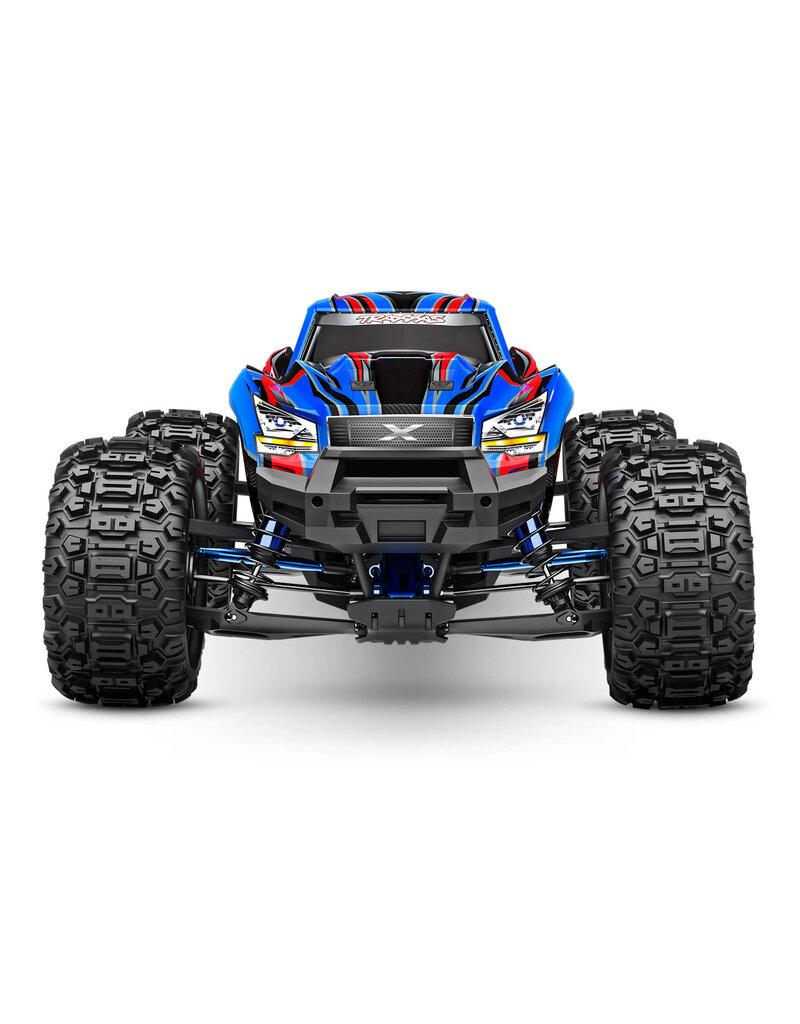

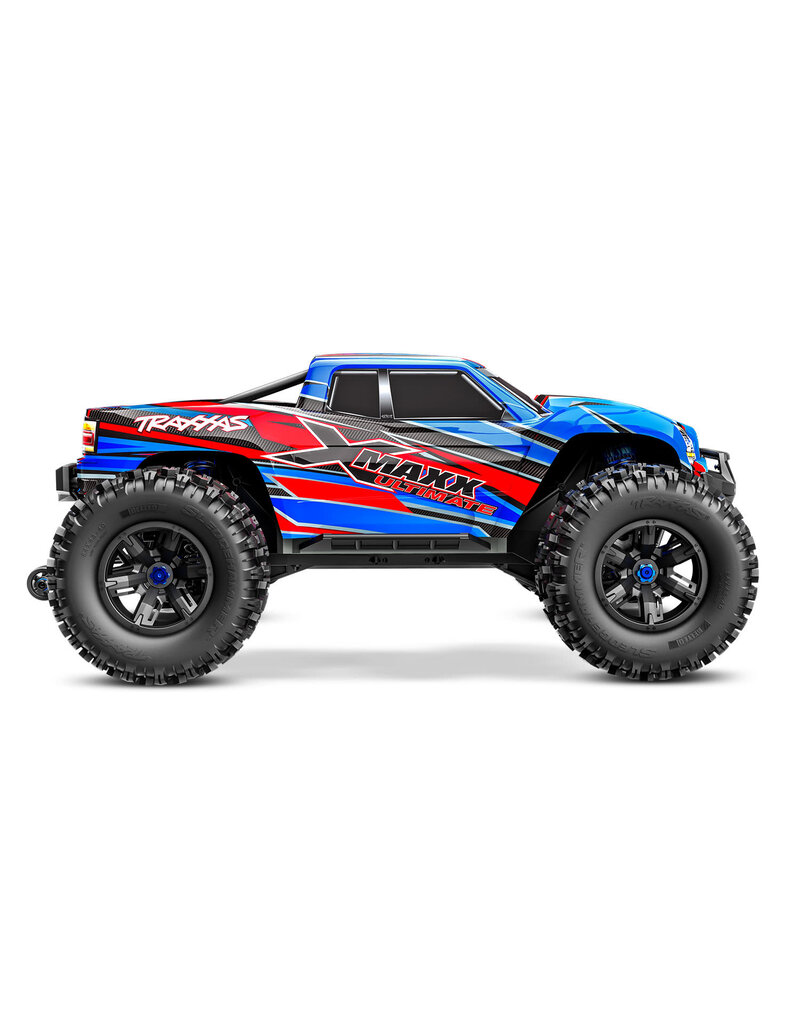

MODEL 77097-4: X-Maxx® Ultimate: fully assembled, Ready-To-Race®, with TQi™ 2.4 GHz radio system, VXL-8s™ brushless power system, and ProGraphix® clipless body.
What’s In The Box:
- X-Maxx Ultimate, Ready-To-Race model with Traxxas Big Block™ brushless motor
- VXL-8s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi 2.4 GHz radio system with factory-installed wireless module
- High quality maintenance tools
What You’ll Need:
- Batteries
Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part 2890X) or the Dual 4s Completer Pack (part 2997).
- Charger
4s LiPo Balance Charger with iD®
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
