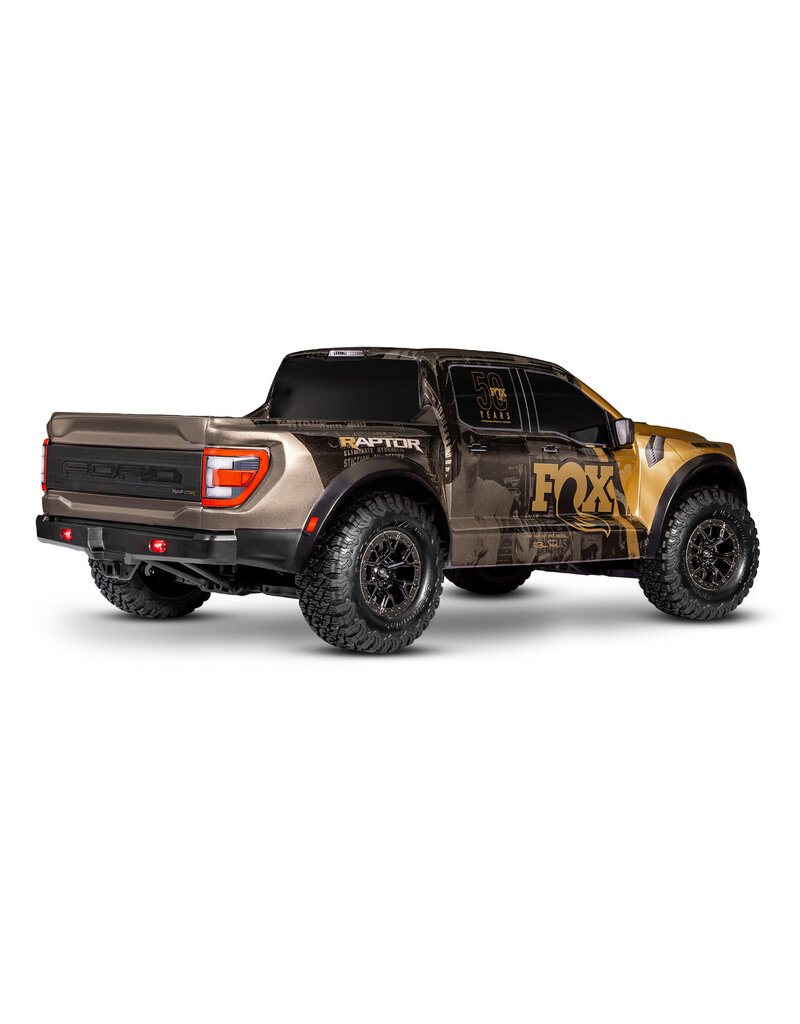

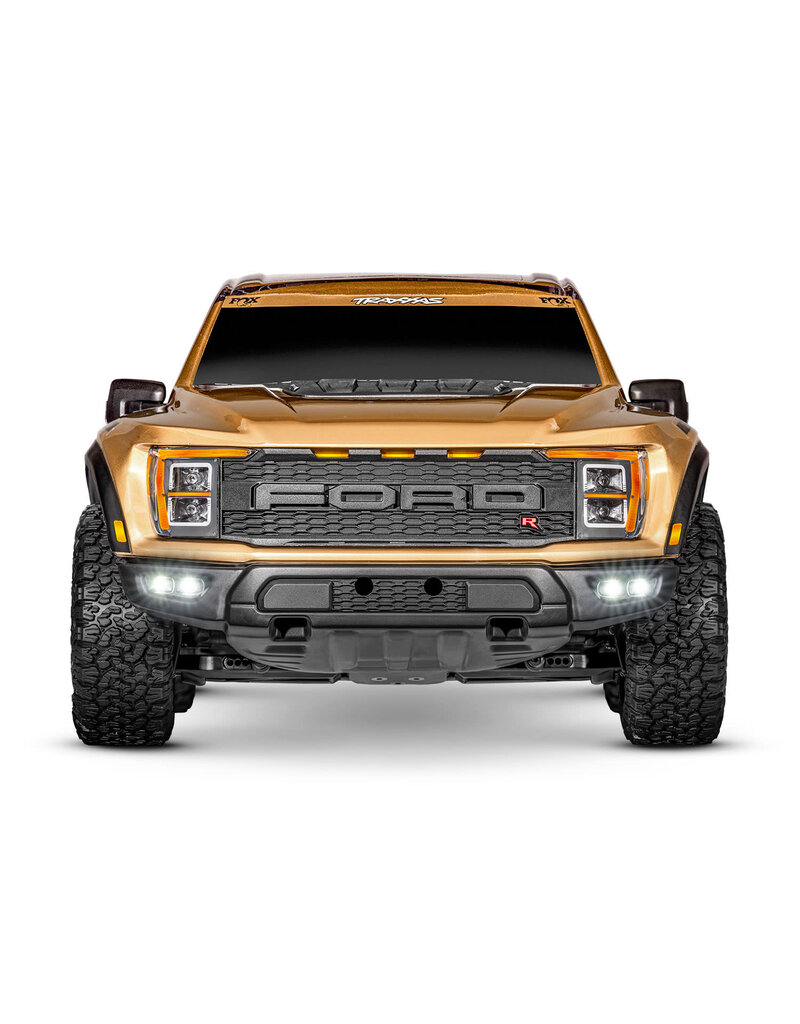

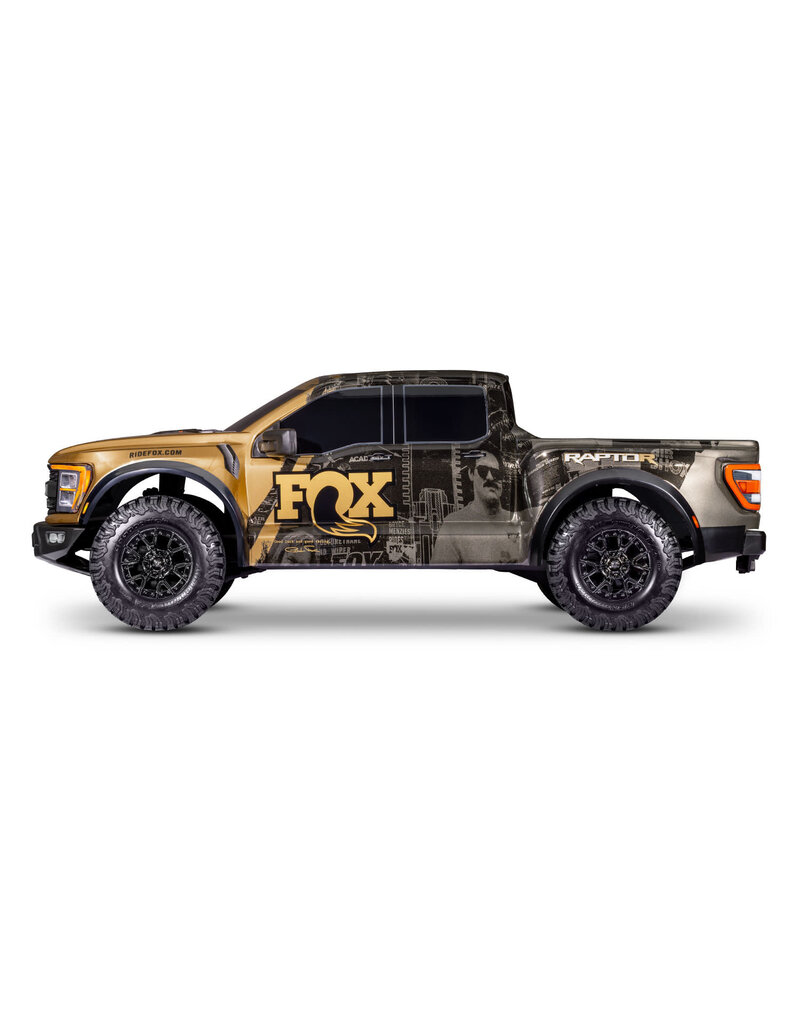

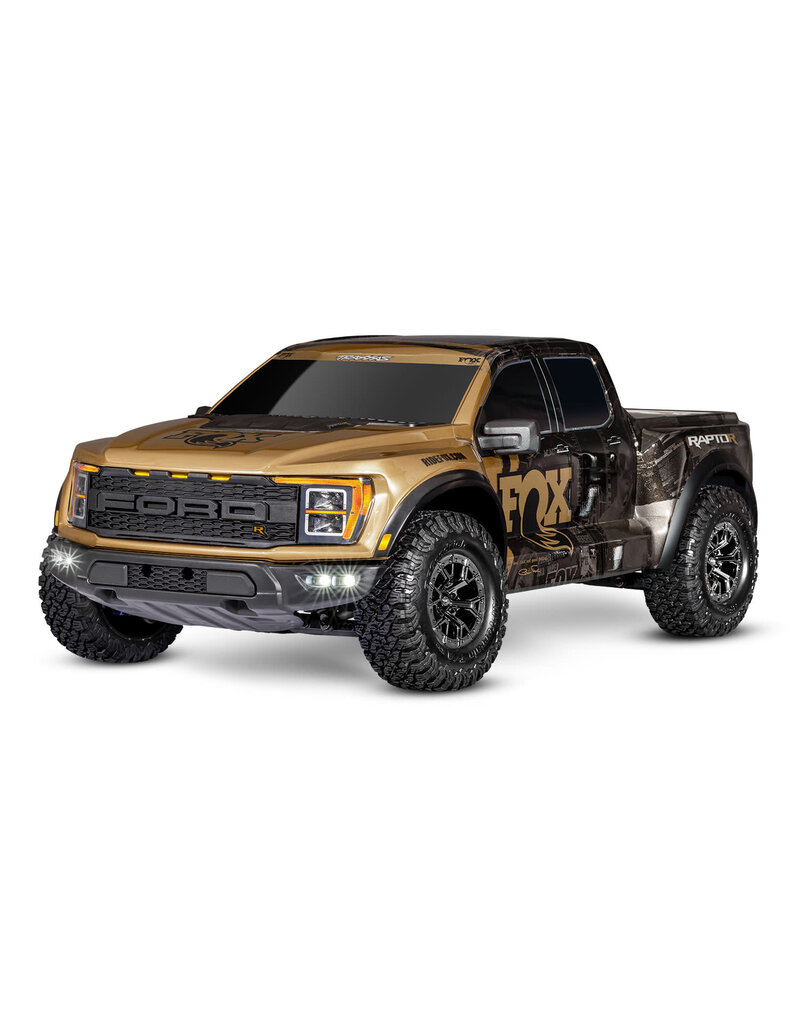

- Officially Licensed Ford® F-150® Raptor R™ Clipless Pro Scale® Body
- Molded scale details: bumpers, grille, tailgate, side mirrors, and hood vent
- LED lighting in front and rear bumpers
- Body reinforcements to prevent pull-through damage
- Clipless Body Mounting
- Holds tight for intense action
- Quick and easy removal
- Smooth appearance with no body posts or clips
- Color-Matched Aluminum Suspension Parts
- 6061-T6 aluminum C-hubs
- 6061-T6 aluminum steering blocks
- 6061-T6 aluminum rear hub carriers
- VXL-4s™ Waterproof Electronic Speed Control
- 2s–4s LiPo compatible
- Real-time telemetry via Traxxas Link™
- Selectable 7.4-volt high-voltage BEC
- Large Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Integrated protection circuits
- LED status lights
- Velineon® 540XL Brushless Motor
- Long format brushless motor
- 4-pole 2400 Kv
- 5 mm output shaft
- Low-maintenance design
- TQi™ 2.4 GHz Radio System with Wireless Module
- Factory-installed telemetry sensors
- TQi 2-channel high-power transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- 5-channel micro receiver (6533) with fail-safe security
- Patented waterproof receiver box with easy-access plug
- Traxxas Stability Management (TSM)®
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- Suspension
- Heavy-duty suspension arms
- Adjustable 4 mm steel toe and camber links
- Aluminum oil-filled GTR shocks
- 70% more oil capacity than standard Ultra Shocks™
- Threaded bodies with adjustable spring collars
- TiN-coated shock shafts to reduce friction

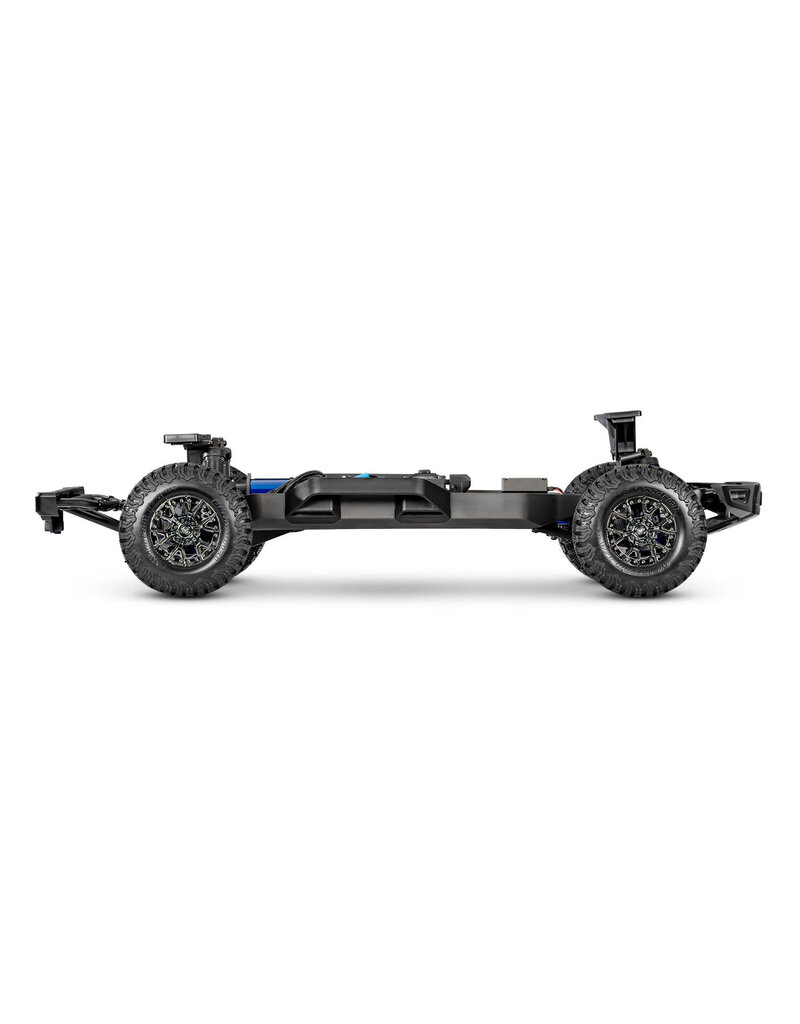

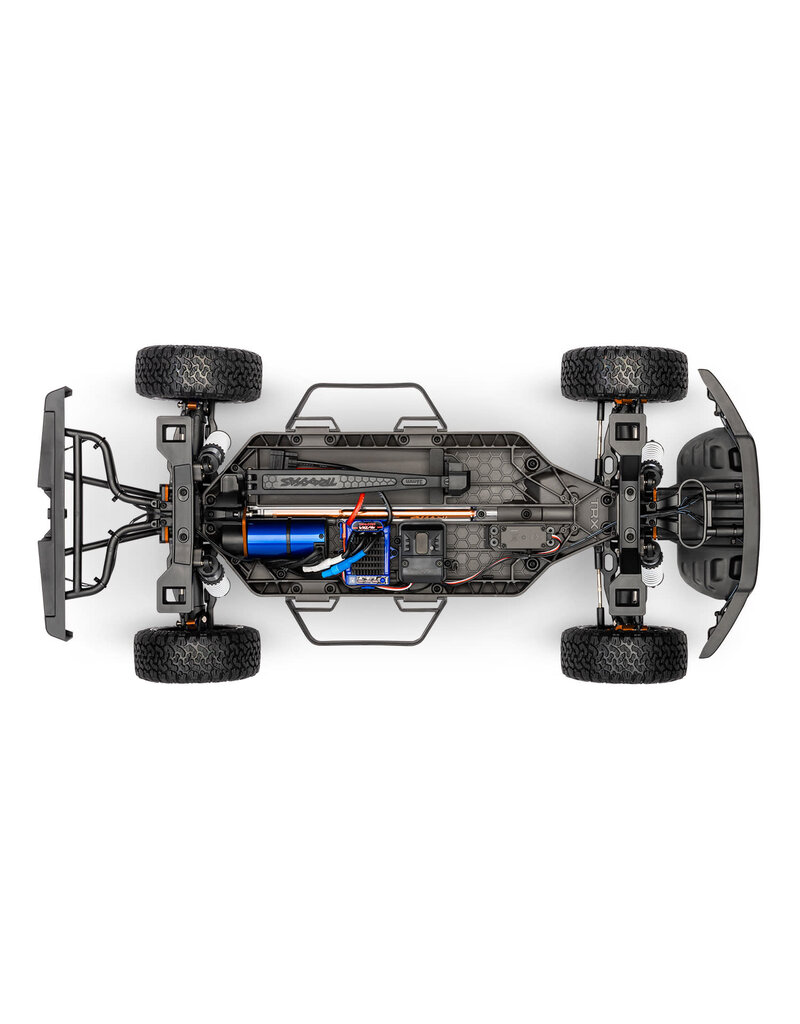

- Chassis
- Extended modular composite tub design
- Heavy-duty front & rear shock towers
- Secure battery hold-down latch
- Side nerf bars for impact resistance
- Steering
- 2275 waterproof metal-gear servo
- 347 oz-in torque @ 6.0 volts
- Aluminum center case w/ full bearings
- Dual bellcrank design with integrated servo saver
- Drivetrain
- Full-time shaft-driven 4-wheel drive
- Center differential with 20-million weight oil
- Oil-filled, steel gear front and rear differentials
- Steel 32-pitch spur gear
- Anodized-aluminum center driveshaft
- Maxx-duty driveshafts
- Oversize diameter
- 6 mm axles
- Wheels and Tires
- Licensed Ford® replica option wheels
- 2″ outer diameter, 3″ inner diameter
- Licensed BFGoodrich® All-Terrain T/A® KO2 tires
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
MODEL 101177-4: Ford® Raptor R™ 4X4 Ultimate: 1/10 scale 4X4 short course truck, fully assembled, waterproof electronics, Ready-To-Race®, with TQi™ 2.4 GHz 2-channel radio system w/ wireless module, Traxxas Stability Management (TSM)®, VXL-4s™ speed control, Velineon 540XL brushless motor, and clipless painted Pro Scale® body.
What’s In The Box:
- Raptor R with Velineon VXL-4s ESC and 2400 Kv motor
- Quick Start Guide
- TQi 2.4 GHz radio system w/ wireless module
- High quality maintenance tools
What You’ll Need:
- Batteries
Raptor R requires a single 2s, 3s, or 4s LiPo battery with iD®.
- Charger
Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
