TP POWER TP4070CM-V1 2200KV 8S MAX 5MM SHAFT

$219.99
Article number: 210000021013
Availability: Out of stock

TP Power motors are made of the best materials that are available, and have high efficiencies (>90%) required for the most demanding applications.The TP 4070-CM Series is our most  powerful 40 series up to date, with 75K max burst RPM.

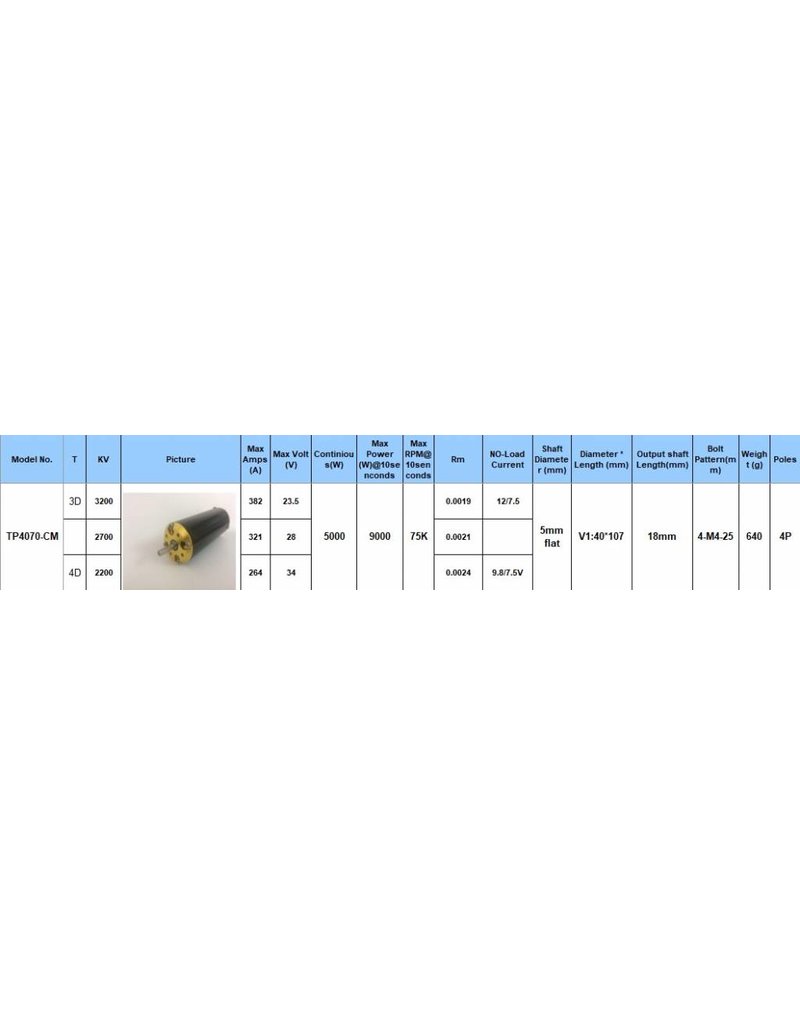

Parameters:

Can: Smooth

T: 4D

KV: 2200

Max Amps (A): 264

Max Volt (V): 34

Continuous Power (W): 5000

Max Power (W): 9000 for 10 seconds

Max RPM: 75 K for 10 seconds

Internal Resistance (Ohm): 0.0024

No-load Current (A): 9.8 at 7.5V

Shaft Diameter (mm): 5 or 8

Diameter X Length (mm): 40 X 107

Output Shaft Length (mm): 18

Bolt Pattern: 4 - M4 - 25mm

Weight: 640 g

Pole: 4-pole
