REEFS RC SEHREEFS246 1400 SMART 16.8V BRUSHLESS SERVO

Availability:

Out of stock

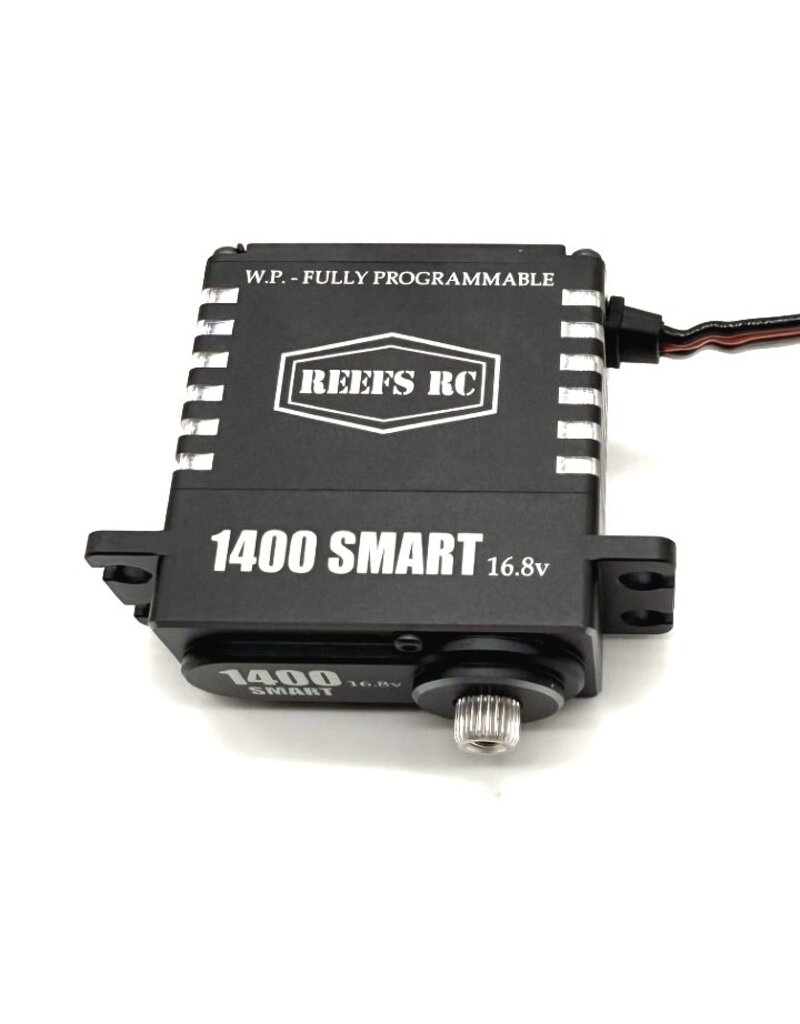

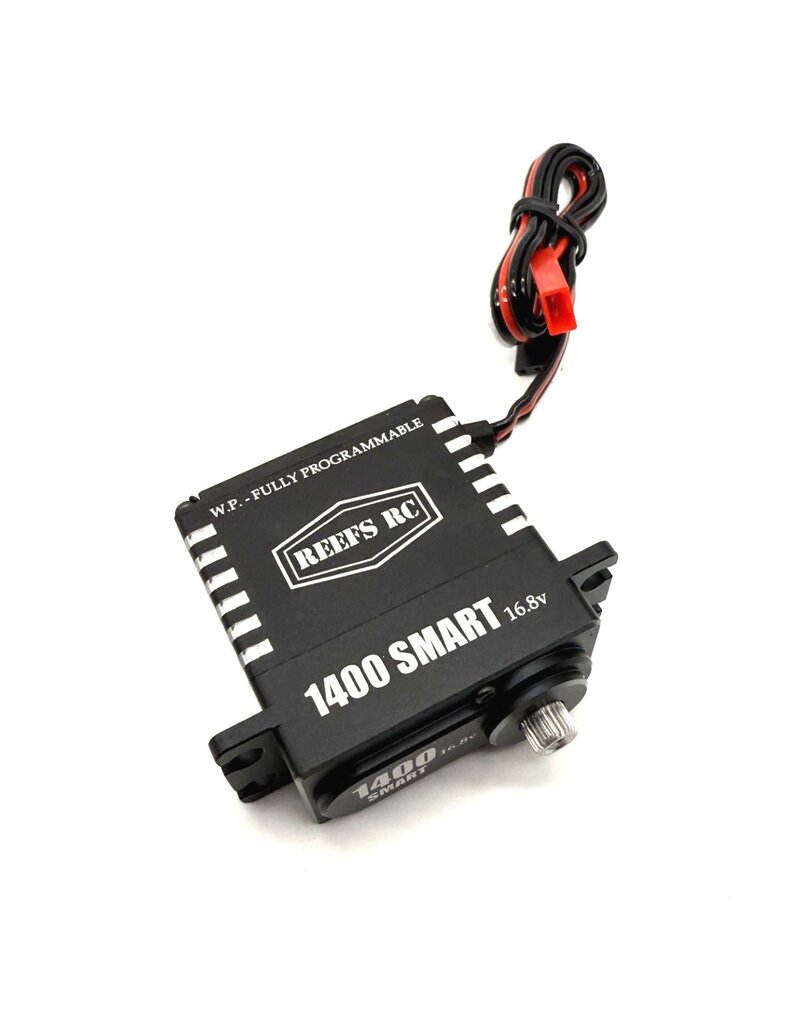

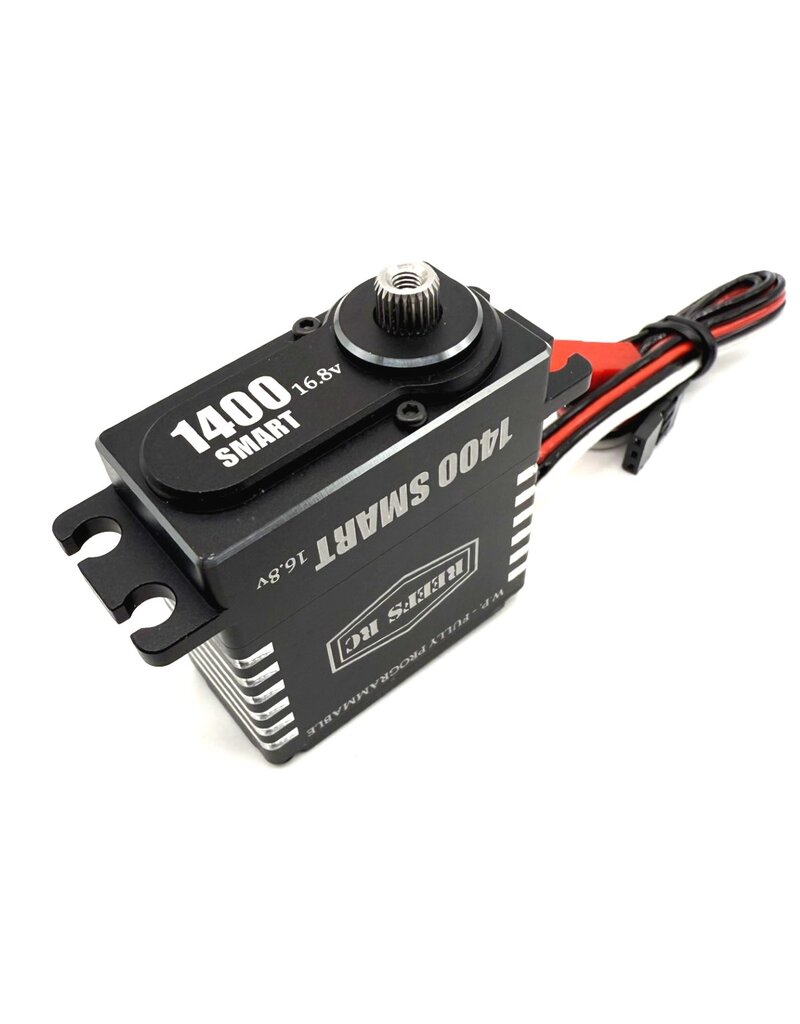

1400 Smart 16.8V Brushless Servo



Features:

• High Torque High Speed Brushless Servo or Winch
• Comes as Servo out of the Box, can be changed to winch with the REEFS LINK V2 (Sold separately) and Software.
• Built In preprogrammed winch controller
• Submarine Waterproof: 7 Point Seals w/ Heat Sink
• Military Grade Construction
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• 4 Pole Brushless Motor
• Internal Steel Gears / All CNC Aluminum Casing

Specifications:

• 4 Pole Brushless Motor / Voltage 10V - 16.8V
• Bearing Type 4 Ball Bearings / Weight 3.19oz / 90gm
• Dimensions 1.57 x .79 x 1.5 (LWH) / 40x20x42mm
• Torque: 1140oz @ 12.6v/ 1223oz @14.4v / 1400oz @16.8v
• [email protected] / [email protected] / [email protected]
• Speed: 15sec @ 12.6v / .13sec @ 14.4v / .11sec @ 16.8v
• Spline 25T
• Unload Current: [email protected] / [email protected] / [email protected] / [email protected] / [email protected]
• Load Current:[email protected] / [email protected] / [email protected] / [email protected] / [email protected]



This product was added on 03/03/2025 by JM.
