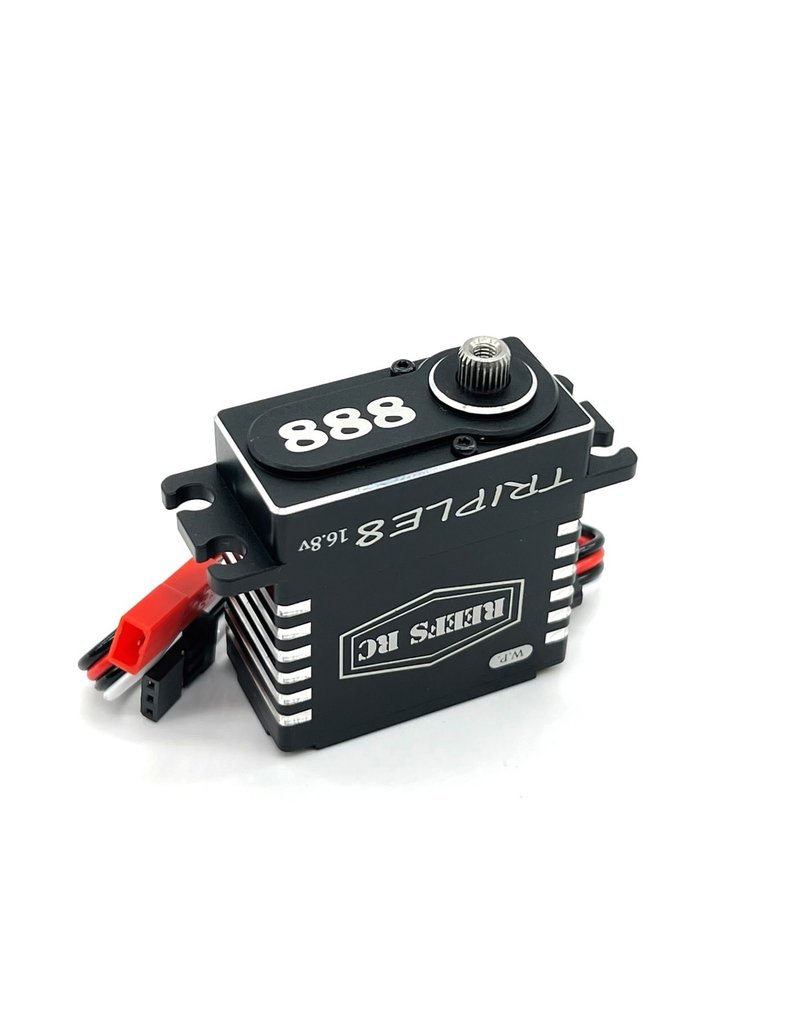

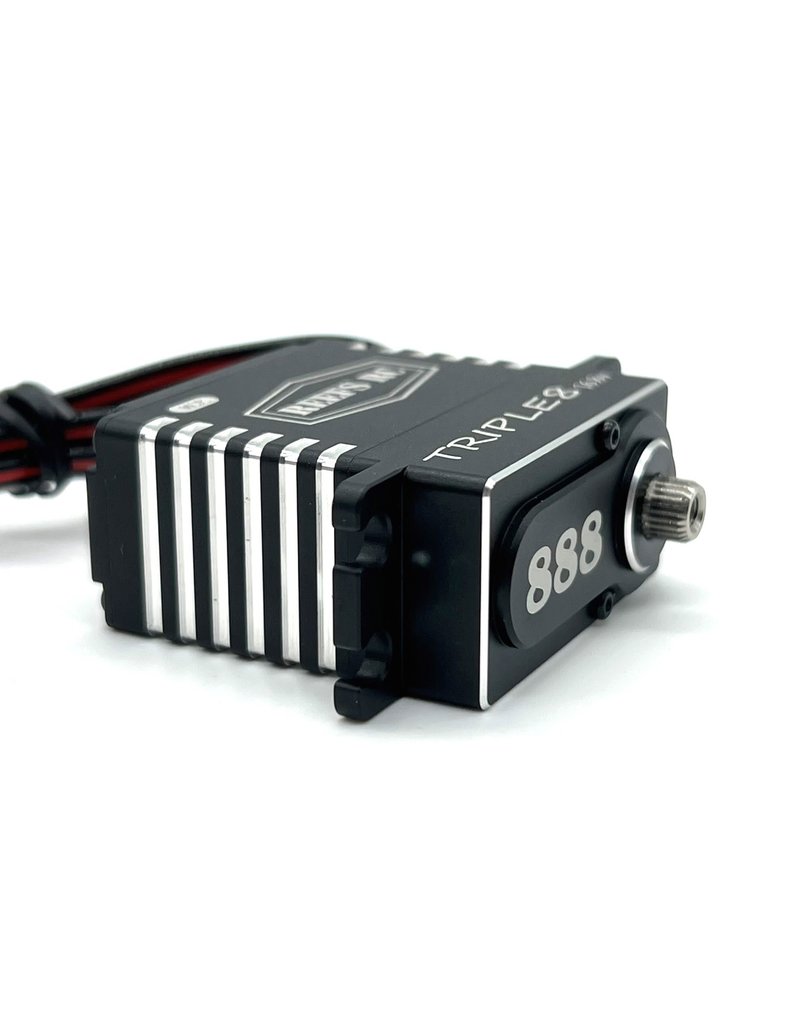

REEFS RC SEHREEFS124 TRIPLE 8 16.8 SERVO

$179.99
Article number: 210000035910
Availability: In stock

Triple 8 16.8V 4S Direct High Torque High Speed Brushless Servo with 4S Connector

The REEFS 888 servo is designed to be powered directly from the vehicle battery using the JST plug. Check out the REEFS XT connectors (XT60 - REEFS121, XT90 - REEFS122) for an easy plug-and-play option to get battery power directly to your servo.

Features:

  • Submarine Waterproof: 7 point seals
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • Spline: 25T
  • Dead Band Width: 2 microseconds

Specifications:

  • Voltage: 12V - 16.8V
  • Internal: Steel Gears, All CNC Aluminum Casing
  • Bearing Type: 3 Ball Bearings / Weight: 3.12oz
  • LWH: 1.57 x .78 x 1.63 inches / 40x20x41.5mm
  • Torque: 640oz-in @ 12v / 765oz-in @ 14.4v / 860z @ 16v / 917oz-in @ 16.8v
  • Speed: .13sec @ 12v /.11sec @ 14.4v / .10sec @ 16v / .09sec @ 16.8V
