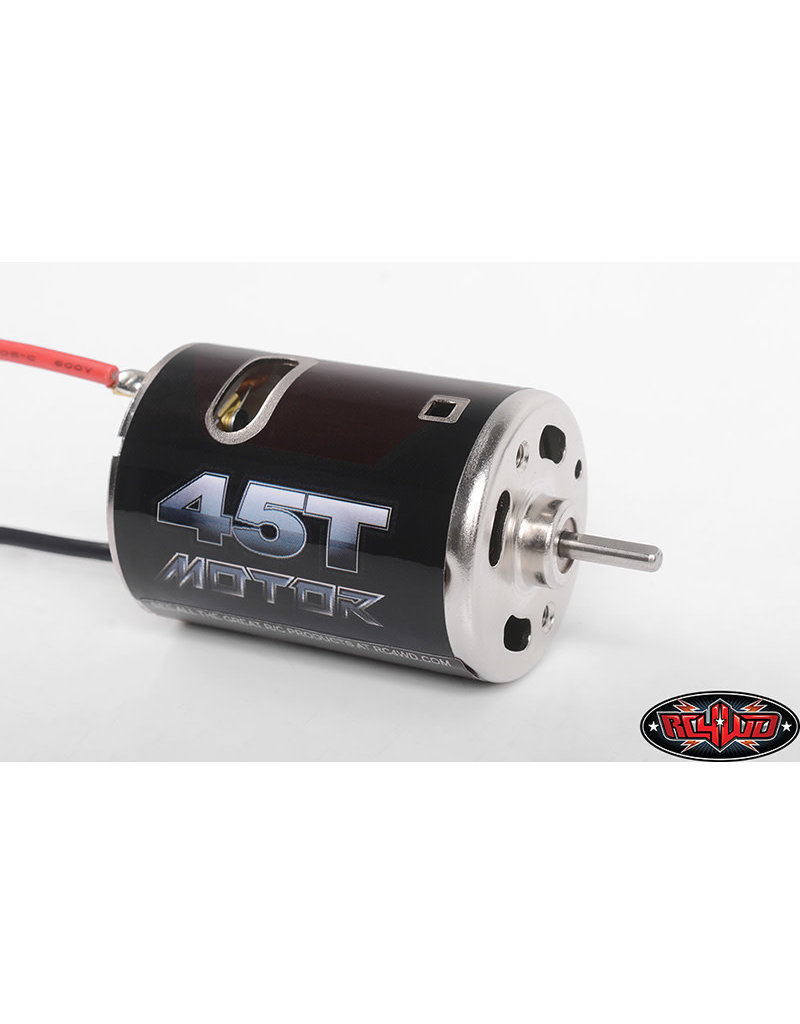

RC4WD RC4Z-E0004 540 BRUSHED 45T

Article number: 210000011434
Availability: In stock

Specifications:

  • Custom made 540 Steel Case
  • Chrome Plated Case
  • Build in capacitor for minimizing glith
  • High torque magnet and rotor
  • Small footprint (50mm long)
  • Tuned for Rock Climbing and Scale Driving
  • Polished Bushings
  • Body OD: 1.39in / 35.5mm
  • Output Shaft Length: 0.43in / 11mm
  • Output Shaft: 0.12in / 3.1mm
  • Min and Max Voltage Range: 2.4V-30V

Performance Specs:



  • (At no load) RPM @ 7.2V : 9500 (10%), .95Amp Current
  • (Max Efficiency) RPM @ 7.2V : 8100 (10%), 4.29Amp Current
  • Designed oprating temperature range: -30C to +80C
  • Motor end play : .50mm max
  • Noise Level: < 60db
