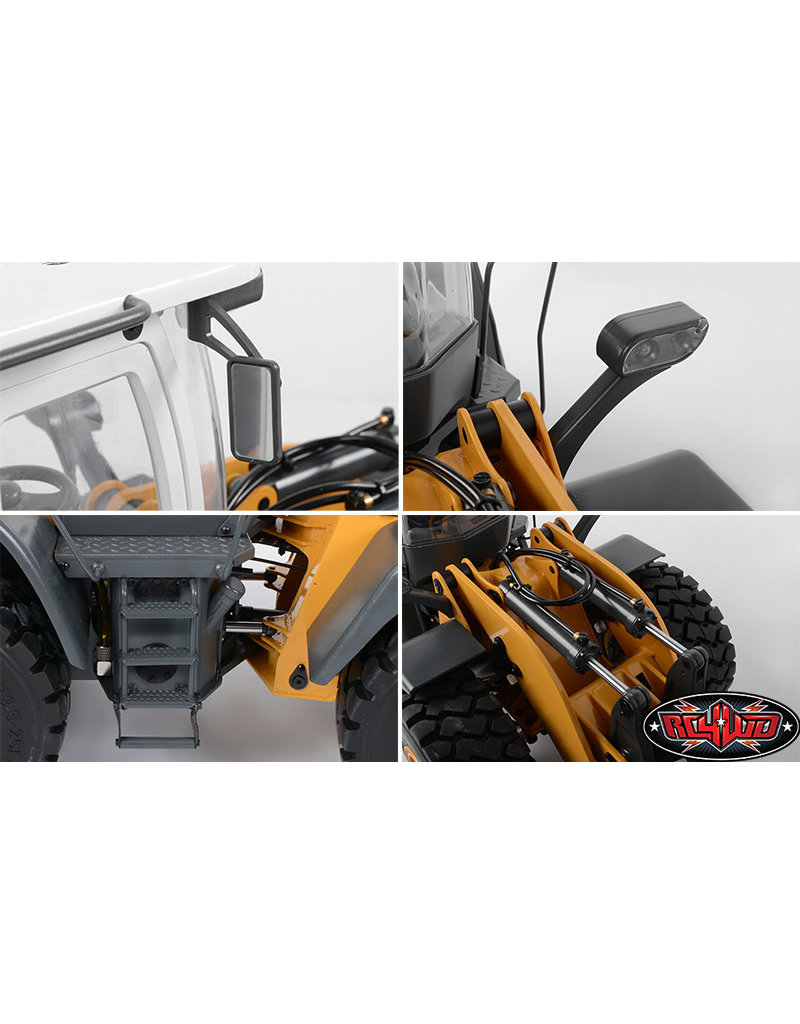

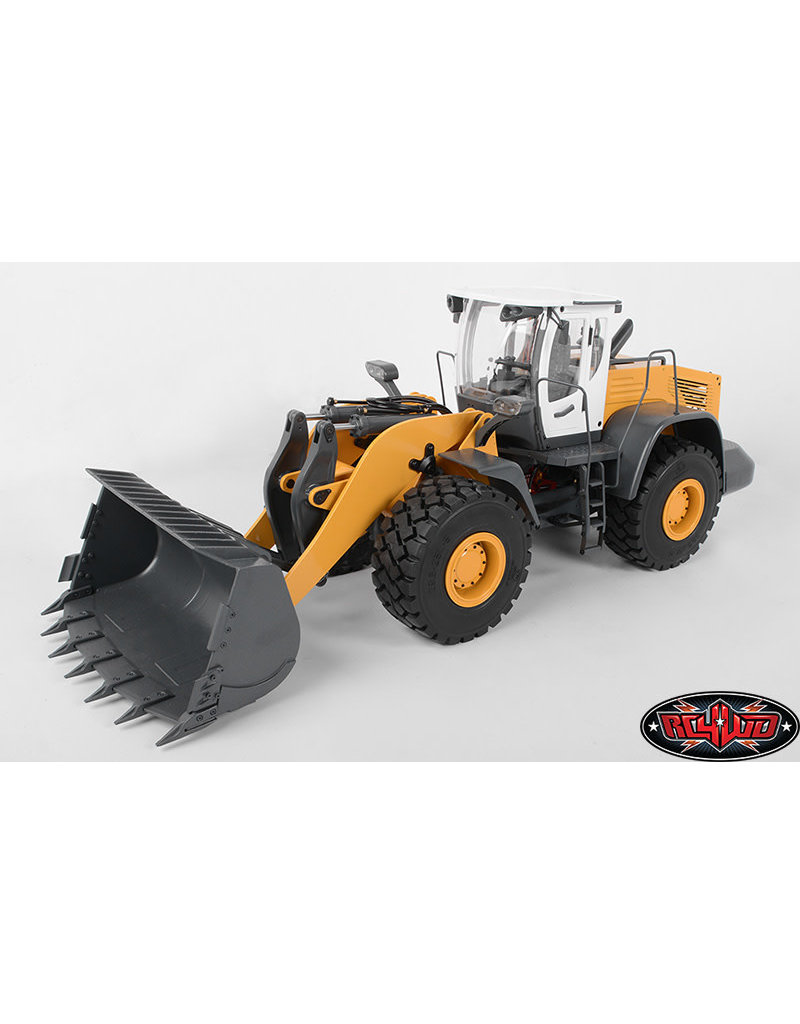

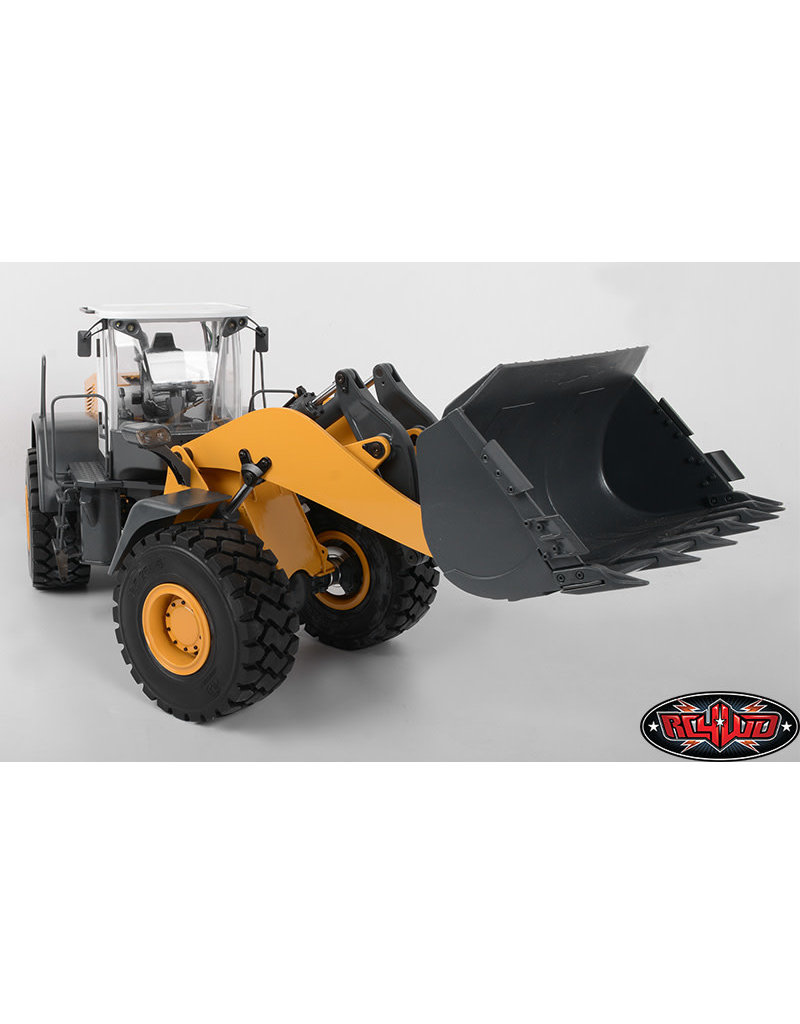

RC4WD RC4VV-JD00031 1/14 SCALE EARTH MOVER 870K HYDRAULIC WHEEL LOADER

$3,199.99
Article number: 210000028461
Availability: On backorder

The Earth Mover 870K is the most powerful wheel loader available today, created for the customer who requires reliability and high production in bulk earth moving or construction projects. CNC machined metal parts, fully assembled, ready to work! Massive power through 350kV brushless system.

This product is hand assembled. The vendor makes every effort to assemble with no imperfections, but due to the nature of this product and the amount of effort and work that goes into each one, it could have a few small blemishes.



Important Note: Due to the size and weight of this product, this product has to be shipped in its own container.  It will be shipped only by Expedited Shipping Service (5-8 days), this requires an extra shipping surcharge of $300 to ship anywhere in the US and all international countries due to the size and weight. Must turn on the transmitter before starting the ESC.

Important Note: This product is for experienced R/C users. Not recommended if you just started with R/C.


We can ship it in 1-2 weeks once the order is completed



Specifications:
  • CNC Machined Metal parts
  • Molded Steel bucket
  • 6 channel 2.4Ghz radio
  • Optimized Steel Hydraulic system

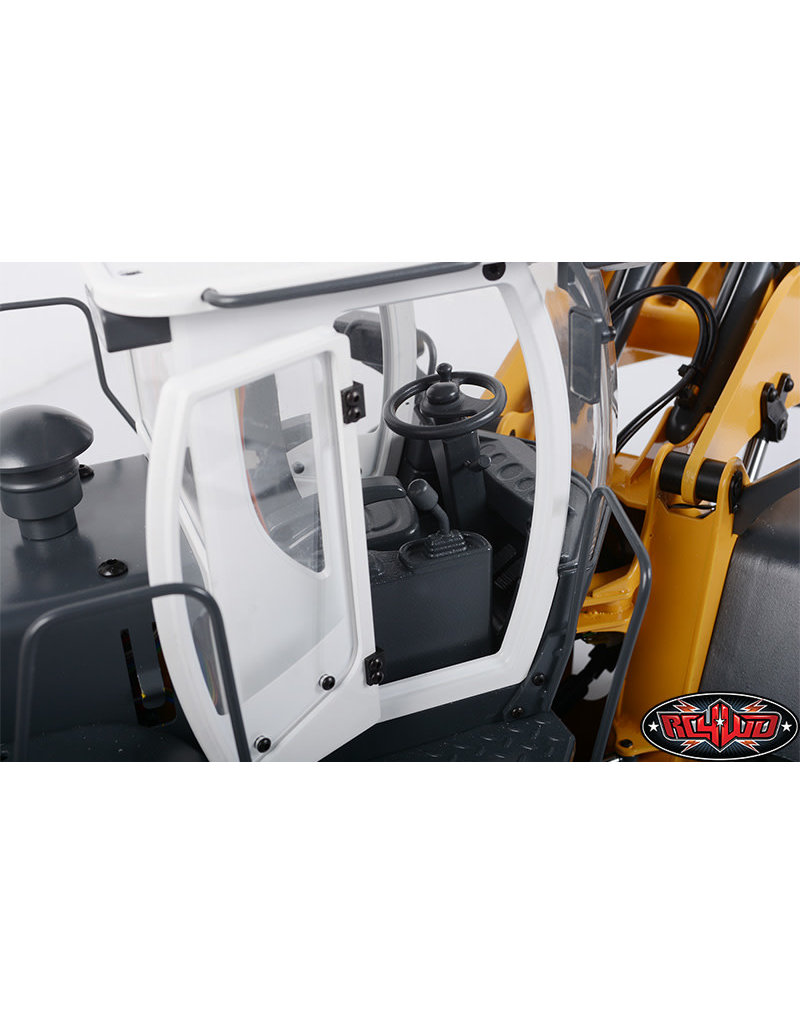

  • Scale operator station (can fit a driving figure)
  • Massive 29.5-25L-5 Tires
  • Reliable hydraulic valve and adjustable pump
  • Heavy Duty Hoses (OD 4.5mm Nylon, ID 2.5mm)
  • Powder coated in yellow
  • Brushless system (hydraulic)
  • 40A brushless ESC with BEC
  • Kv brushless monster torque Motor
  • Realistic non functional disk break
  • Scale ABC plastic interior
  • Wheel with planetary gearbox build-in
  • 2 speed full metal transmission (1:16 and 1:4 gear ratio)
  • Realistic full metal Axles
  • Run time is: 30 minutes (6500mAh Battery)
  • Steel Machined oil pump (45mm X 30mm X 15.5mm)
  • Bucket capacity:
  • Maximum bucket force: 70kg / 154pounds
  • Scale: 1 : 14
  • Length: 741mm / 29inch
  • Width: 276mm / 11inch
  • Height: 276mm / 11inch
  • Maximum bucket Height: 461mm / 18inch
  • Maximum bucket up and down angle: 46 to 64 degrees
  • Maximum bucket left and right angle: 38 degrees
  • Wheel base: 284mm
  • Dead Weight: 20.5kg / 45lbs
  • Total mass load: 32kg / 70lbs
  • Operating oil pressure: 20Bar, 290psi
  • Manufactured by JDCustoms
  • 30 Days Limited Warranty
What's Included:
  • 1/14 Scale Earth Mover 870K Hydraulic Wheel Loader (Yellow and White)

Required Parts:
  • Lipo Charger
  • 5000mAh 11.1V 50C 3S1P Short-Size Lipo Battery Pack with XT60 Plug

Replacement Parts:
  • Hydraulic Connector M5 x 4mm Tube (90deg) (VVV-S0069)
  • M3 x M5 Steel Hydraulic Reducer Bushing (VVV-S0072)
  • Pressure Relief Valve for Earth Digger (VVV-S0041)
  • Mini Hydraulic Oil Pump with Brushless 40A Motor/ESC (VVV-S0090)
  • 2mm Heavy Duty Hydraulic Tubing (VVV-S0073)
  • Mega Truck Universal Shaft "Ver 2" (92mm to 130mm) (VVV-S0054)
  • Earth Mover Steel Straight Axle Shafts (Z-S1579)
  • Complete Front Axle Assembly for Earth Mover (VVV-S0156)
  • Brake Drum for Earth Mover (VVV-S0138)
  • Hydraulic Cylinder (105.8mm) (VVV-S0141)
  • Hydraulic Cylinder (91.5mm) (VVV-S0143)
  • Front Axle Sub-Assembly for Earth Mover (VVV-S0152)
  • Wheel Assembly for Earth Mover (VVV-S0150)
  • Earth Mover 60A Brushless ESC (VVV-S0133)
  • Heavy Equipment Mini Valve Servos (VVV-S0162)
  • 1/14 Loader LED Lighting System (VVV-S0161)

Optional Parts:
  • Semi Truck Sound Unit (VVV-S0074)
  • Earth Mover 870K Warning Light System (VVV-S0189)
  • Scale Heavy Duty Flat Bed Transporter
  • High Intensity LED
  • Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

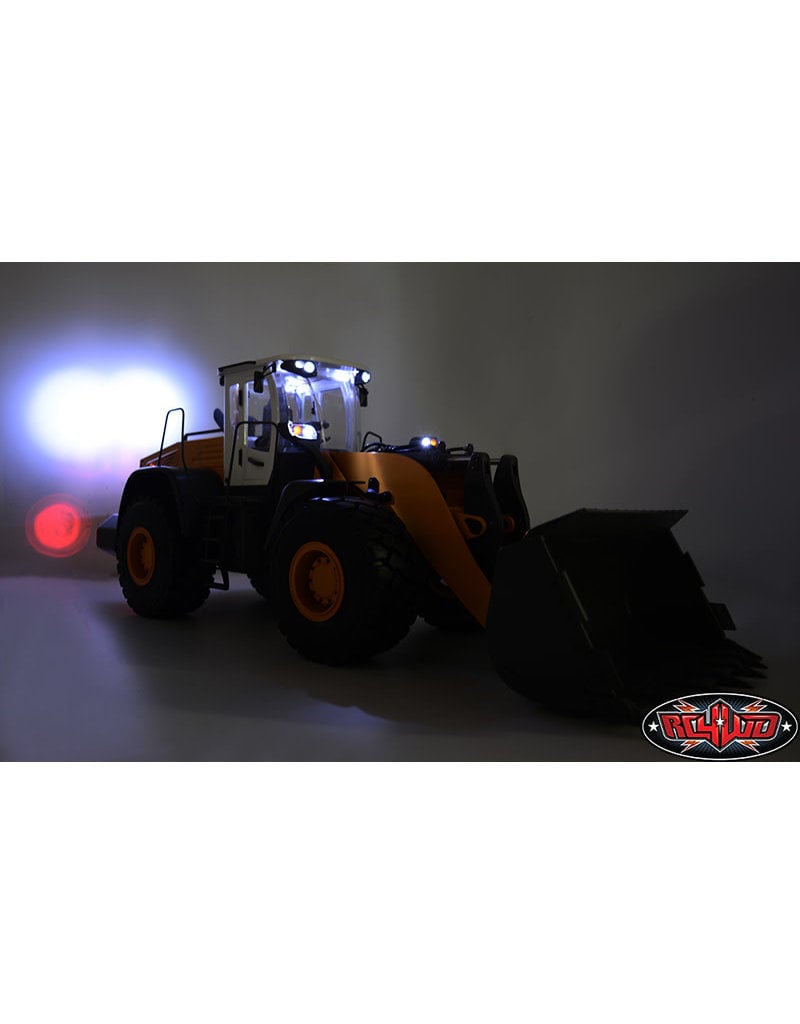

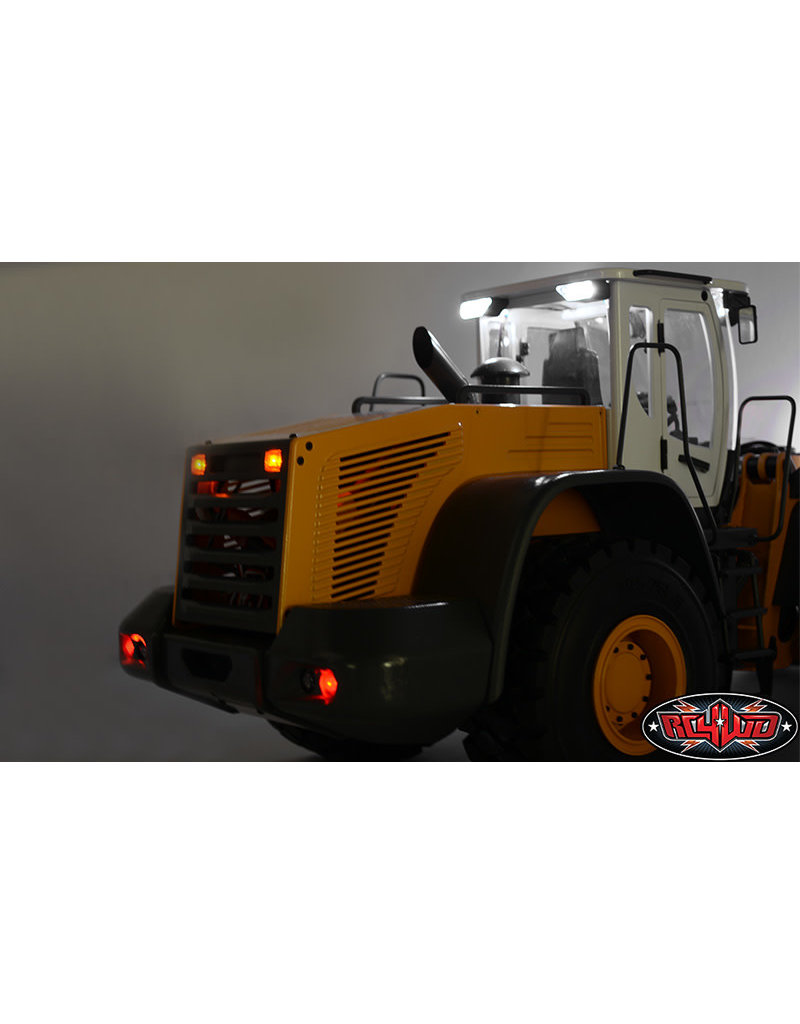

Lighting System:
  • 1/14 Loader LED Lighting System (VVV-S0161) Included


Sound System:
  • Not Included

Instruction Manual:
  • For Detailed Setup. Click here

Radio Instruction Manual:
  • Click here to download.

Notes:
  • While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
  • ESC Supports bullet Connector
  • Use good quality hex drivers to avoid stripping screw heads.
  • Use thread lock when putting metal screws into metal parts.
  • Steps marked with an asterisk (*) require thread lock.
  • Use thread lock sparingly.
  • Do not over tighten screws otherwise you may strip the thread.

Warranty Information

This product is made for heavy duty usage. Since there is no plastic parts, its designed to last. But hydraulic pump, hoses and electronics system can break over time. Do not let the system overheat during usage. We will have all spare parts available for sell. Pump, hoses are electronics system is not covered under warranty, but we do guarantee fully functional at arrival. Each unit is full tested twice before we ship.

Each unit is professionally assembled, adjusted and tested. Do not adjust the oil pressure switch. Oil pressure will drop as you operate over time.

This Wheel Loader is shipped without oil. You will have to fill the tank your self (half tank), by using a funnel or tube (not included).
