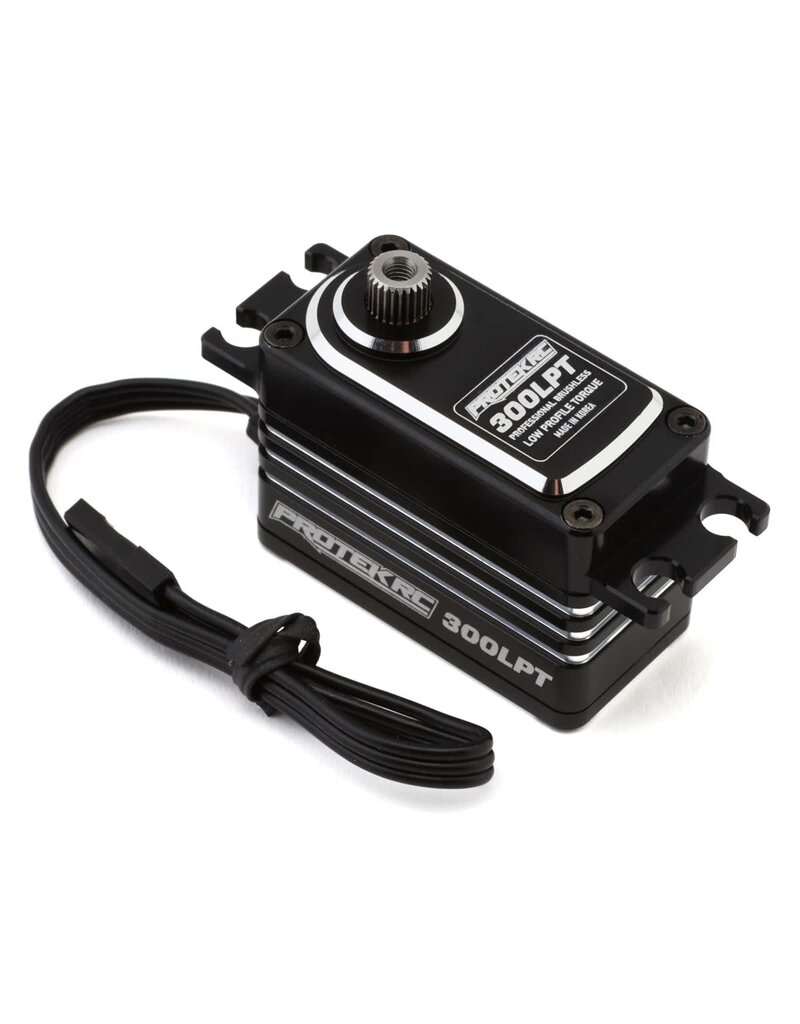

The ProTek RC 300LPT is a compact, high-performance low-profile servo designed for competitive 1/10 scale RC vehicles. Its brushless motor, high-speed response, and high torque output provide fast and precise steering control while keeping weight low for race-focused builds.
The aluminum case combines durability with effective heat management, while metal gears and dual ball bearings provide dependable performance during demanding racing conditions.
The 300LPT delivers a response speed of 0.06 seconds at 7.4V and up to 290 oz-in of torque, giving racers quick steering response and strong holding power. Its low-profile design makes it especially well suited for applications where space and weight are important considerations.

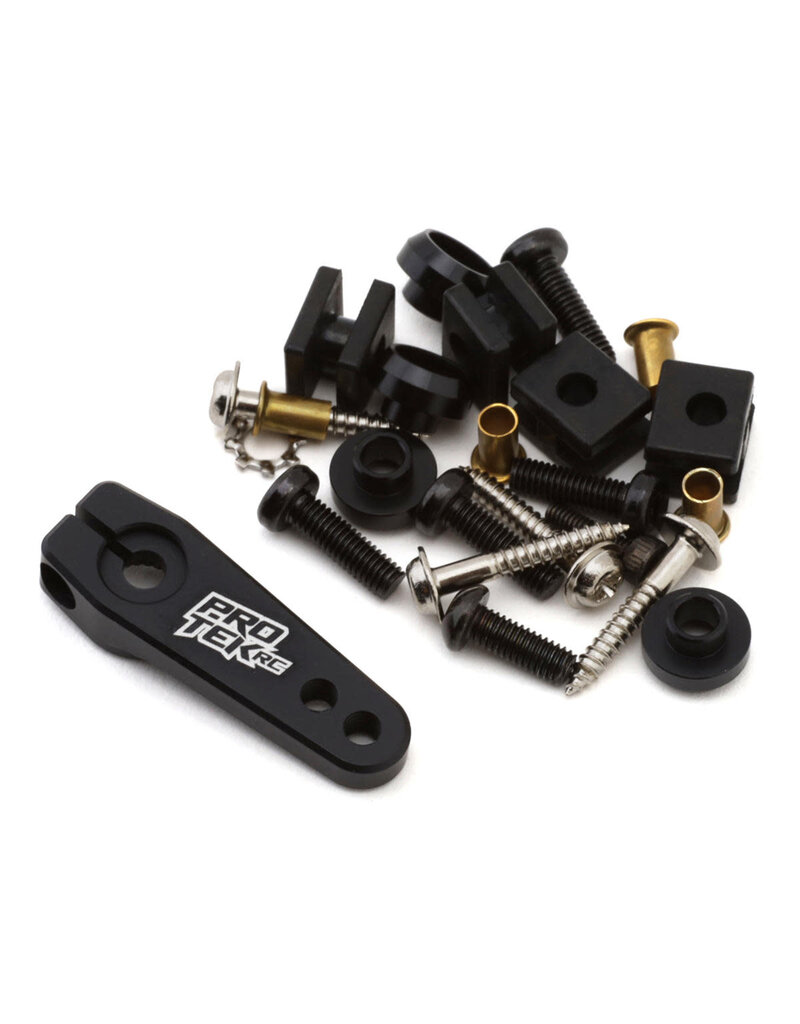

The full aluminum case features a black anodized finish with gold accents. A heat-sink center section helps manage operating temperatures while keeping the servo lightweight. The included aluminum clamping servo horn provides a secure connection to the servo output for precise steering control.
| Specification | Details |
|---|---|
| Application | 1/10 Scale |
| Operating Voltage | 6.0–7.4V |
| Operating Speed @ 6.0V | 0.08 sec/60° |
| Operating Speed @ 7.4V | 0.06 sec/60° |
| Dynamic Torque @ 6.0V | 230 oz-in (16.5 kg-cm) |
| Dynamic Torque @ 7.4V | 290 oz-in (20.9 kg-cm) |
| Motor Type | Brushless Digital |
| Output Shaft | 25T |
| Gears | Metal |
| Weight | 1.94oz (55g) |
| Pulse/Frequency | 1520s / 333Hz |
| Dimensions | 1.55 x 0.79 x 1.20in (39.5 x 20 x 30.6mm) |
| Length (Bottom to Mount) | 0.76in (19.35mm) |
| Operating Temperature | 14° to 140°F (-10 to +60°C) |
Tech Note: If using a Futaba transmitter and experiencing glitching or poor performance, BLS mode must be disabled. BLS mode is intended for Futaba BLS-type servos.
