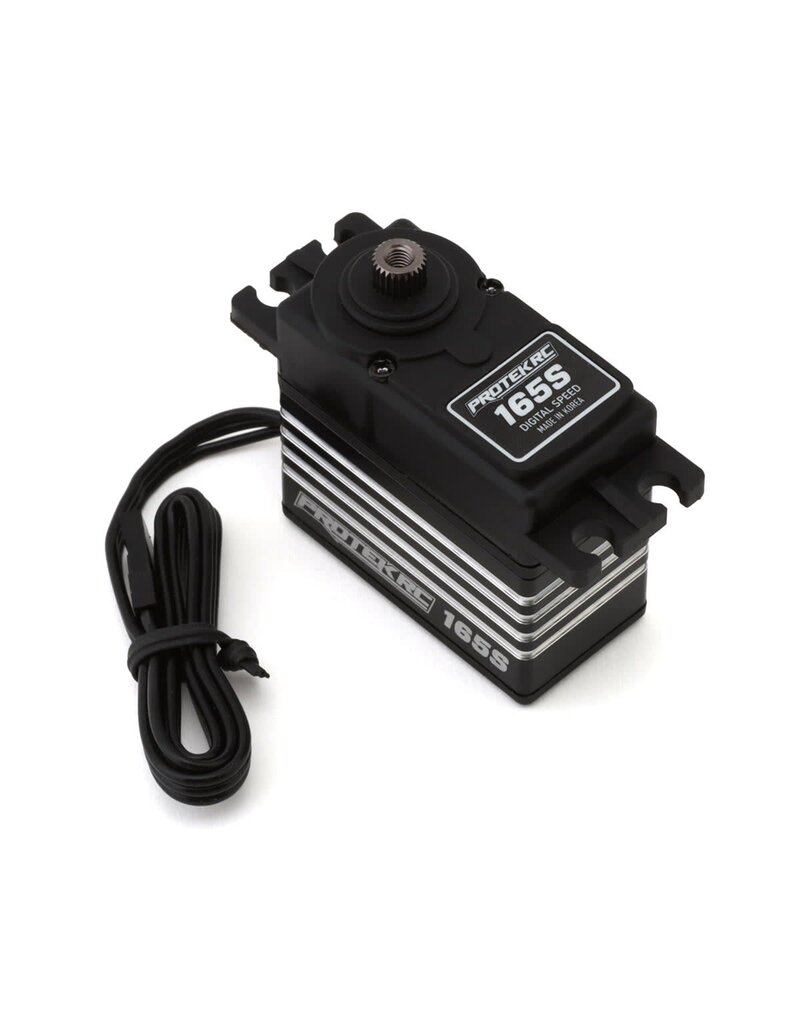

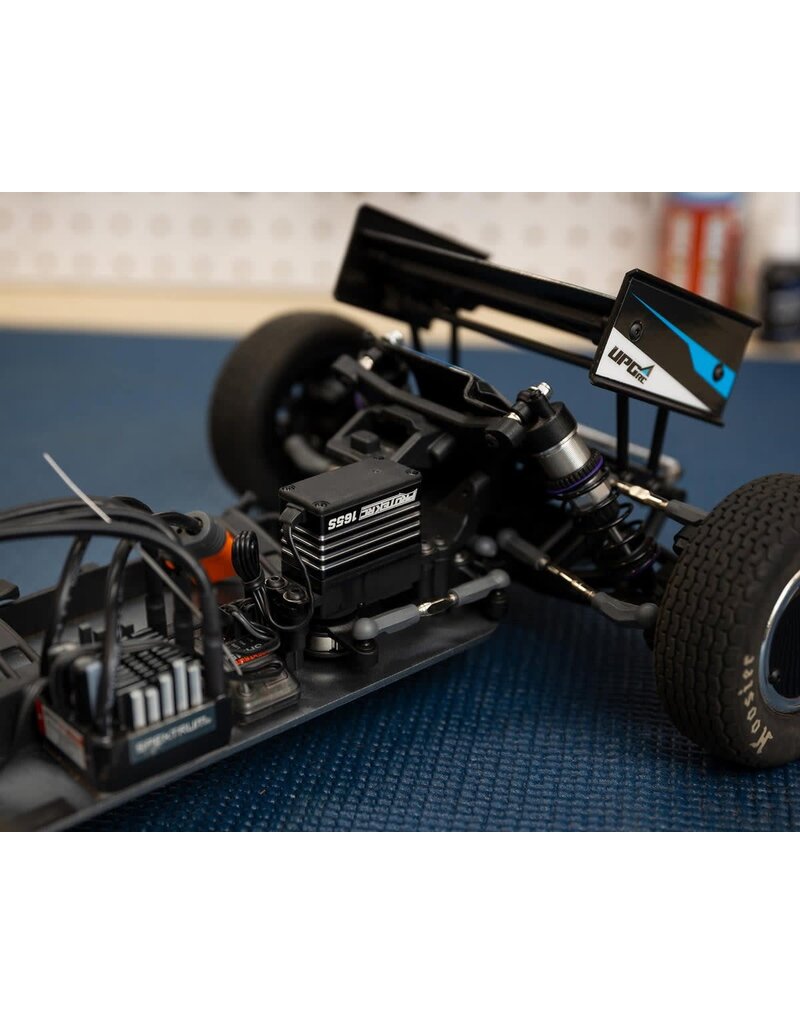

The ProTek RC 165S Standard Metal Gear Servo is a fast and durable steering servo designed for 1/10 scale on-road and off-road RC vehicles. Offering quick response, strong torque, and a robust metal gear train, the 165S provides reliable steering performance for racers and hobbyists looking for precise control at an affordable price.
With a response speed of up to 0.09 seconds at 6.0V and 168 oz-in of torque, the 165S delivers quick steering input and dependable power. Its standard-size design makes it suitable for a wide range of 1/10 scale applications.
The 165S features a full metal gear train supported by dual ball bearings for smooth operation and long-term durability. An aluminum center case helps manage heat, while the cored DC motor provides consistent performance during extended use.
Designed to provide a strong combination of speed, torque, and reliability, the 165S is an excellent upgrade for racers and enthusiasts who want responsive steering without the cost of a premium competition servo.
| Specification | Details |
|---|---|
| Application | 1/10 On-Road & Off-Road |
| Operating Voltage | 4.8V - 6.0V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 4.8V | 0.11/60° sec |
| Operating Speed @ 6.0V | 0.09/60° sec |
| Dynamic Torque @ 4.8V | 134 oz-in (9.6 kg-cm) |
| Dynamic Torque @ 6.0V | 168 oz-in (12.1 kg-cm) |
| Motor Type | Cored DC |
| Output Shaft | 25T |
| Gears | Metal |
| Weight | 1.93oz (54.9g) |
| Pulse/Frequency | 1520s / 333Hz |
| Dimensions | 1.55 x 1.51 x 0.78in (39.5 x 38.6 x 20mm) |
| Length (Bottom to Mount) | 1.04in (26.6mm) |
Tech Note: Use an M3x10mm screw to secure the servo horn to the output shaft. Using a shorter screw may result in improper installation and servo damage.
