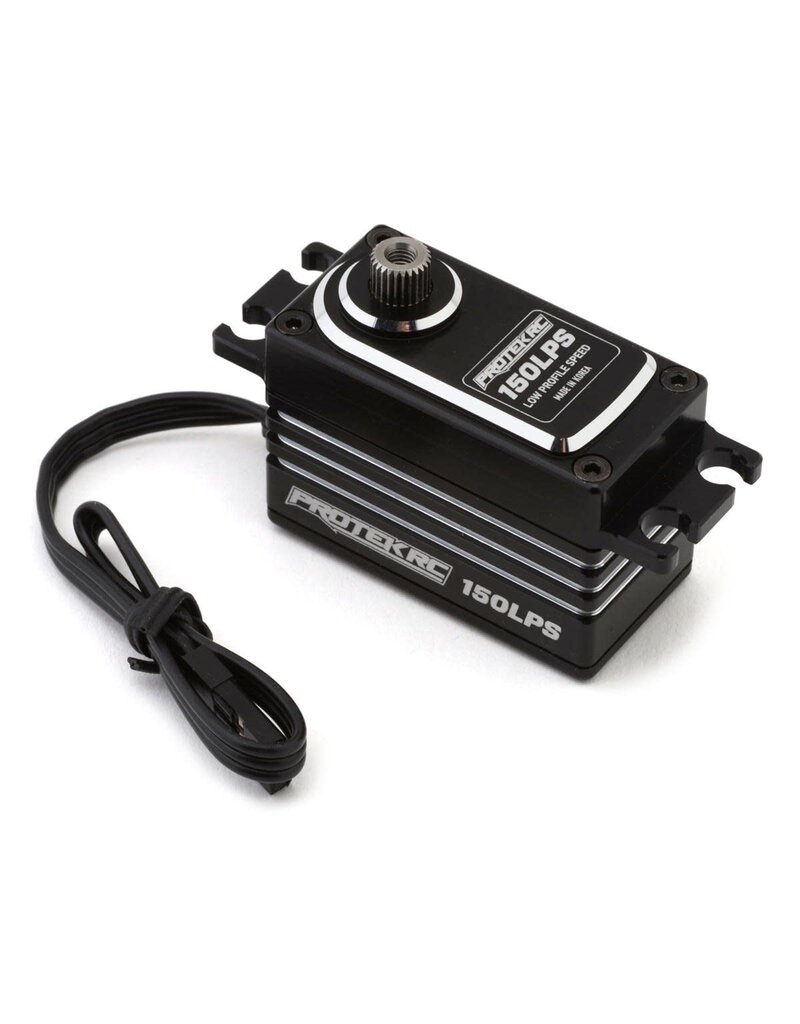

The ProTek RC 150LPS Low Profile Super Speed Metal Gear Servo is designed for racers who prioritize extremely quick steering response in a compact package. Based on the proven ProTek 160SS platform, the 150LPS combines a low-profile aluminum case, coreless motor, hardened metal gears, and high-voltage operation for demanding 1/10 and 1/12 scale racing applications.
At 7.4V, the 150LPS delivers a rapid 0.04 sec/60° transit speed along with 152 oz-in (10.95 kg-cm) of torque. This speed-focused performance makes it particularly well suited for racing applications where fast steering transitions and precise response are important.
The compact low-profile configuration helps save space and weight compared with traditional full-height servos. A full aluminum case adds rigidity while also assisting with heat dissipation during demanding use.
Inside, a coreless motor works with hardened metal gears and dual ball bearings to provide smooth and consistent operation.

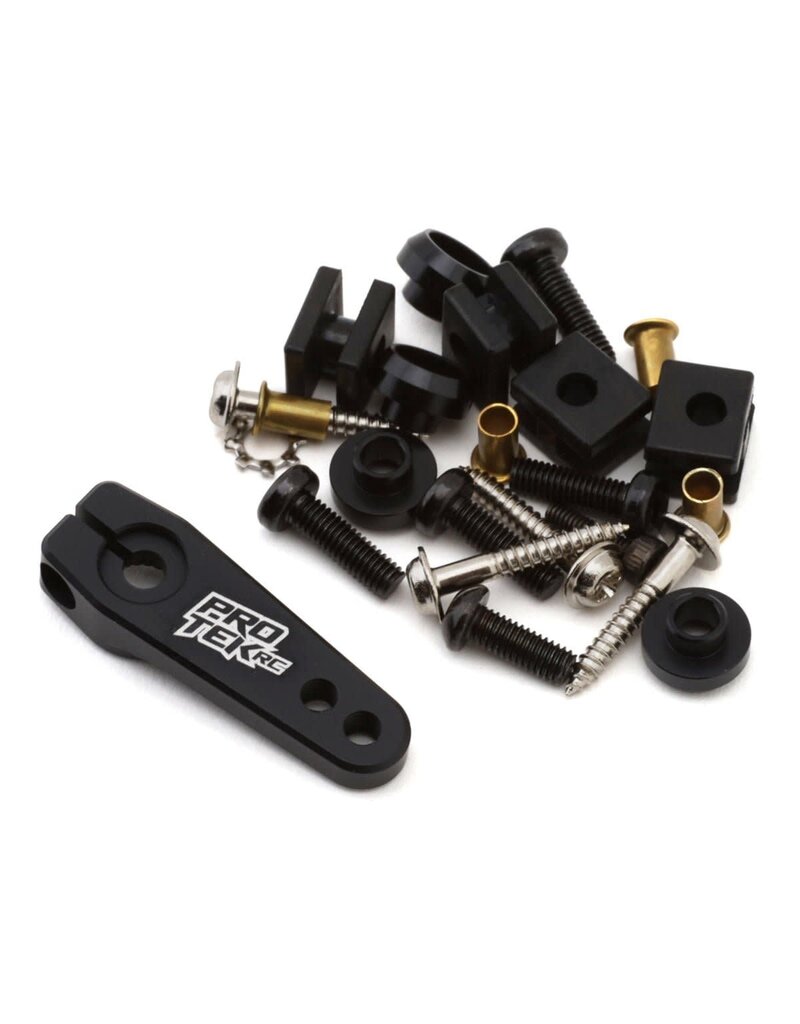

An aluminum single-arm clamping servo horn is included, providing a stronger connection than a typical plastic servo horn. Aluminum servo ear guides are also included to help create a more rigid and secure mounting arrangement.
| Specification | Details |
|---|---|
| Servo Model | 150LPS |
| Servo Type | Digital Low Profile |
| Recommended Application | 1/10 & 1/12 Scale Surface |
| Operating Voltage | 4.8V–7.4V |
| Speed @ 7.4V | 0.04 sec/60° |
| Torque @ 7.4V | 152 oz-in (10.95 kg-cm) |
| Motor Type | Coreless |
| Gear Material | Metal |
| Case Material | Aluminum |
| Output Spline | 25T |
| Bearings | Dual Ball Bearing |
| Dimensions | 40 x 20 x 28mm |
| Weight | 54.5g |
| Part Number | PTK-150LPS |
