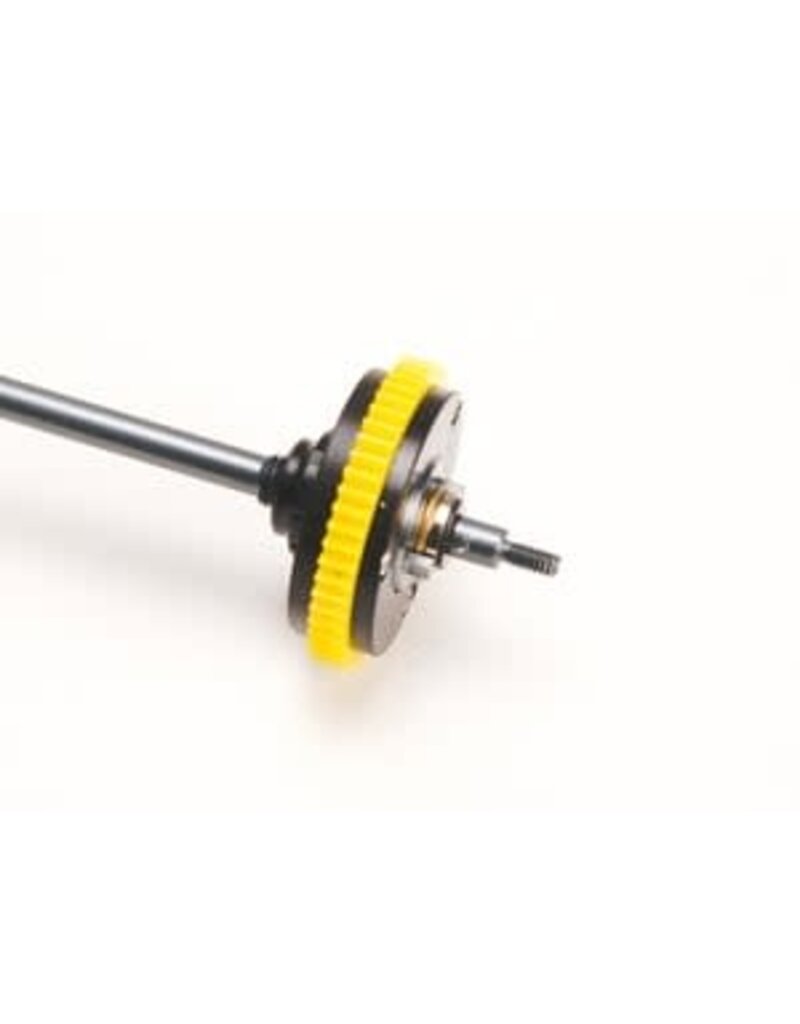

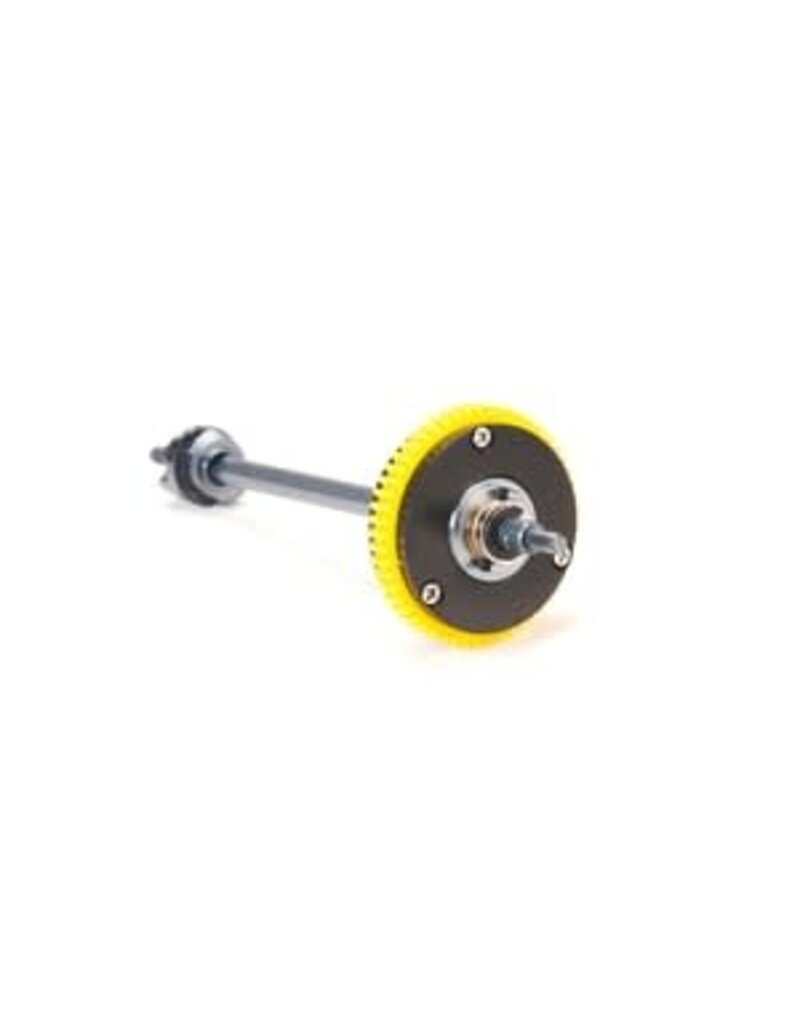

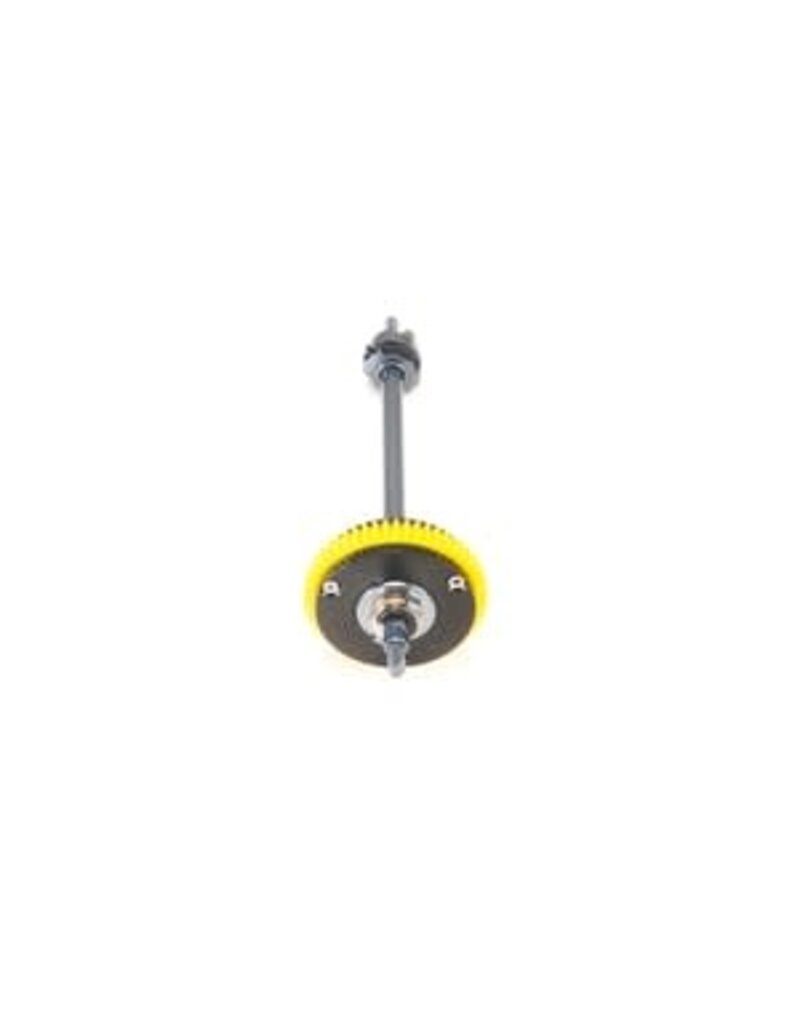

PN Racing Mini-Z 2WD V3 Precision Enclosed Gear Differential 64P 53T
V3 version comes with 600126T 3x6x2.5mm Thrust Ball Bearing
- Light weight. Minimal rotational inertia for fast acceleration.

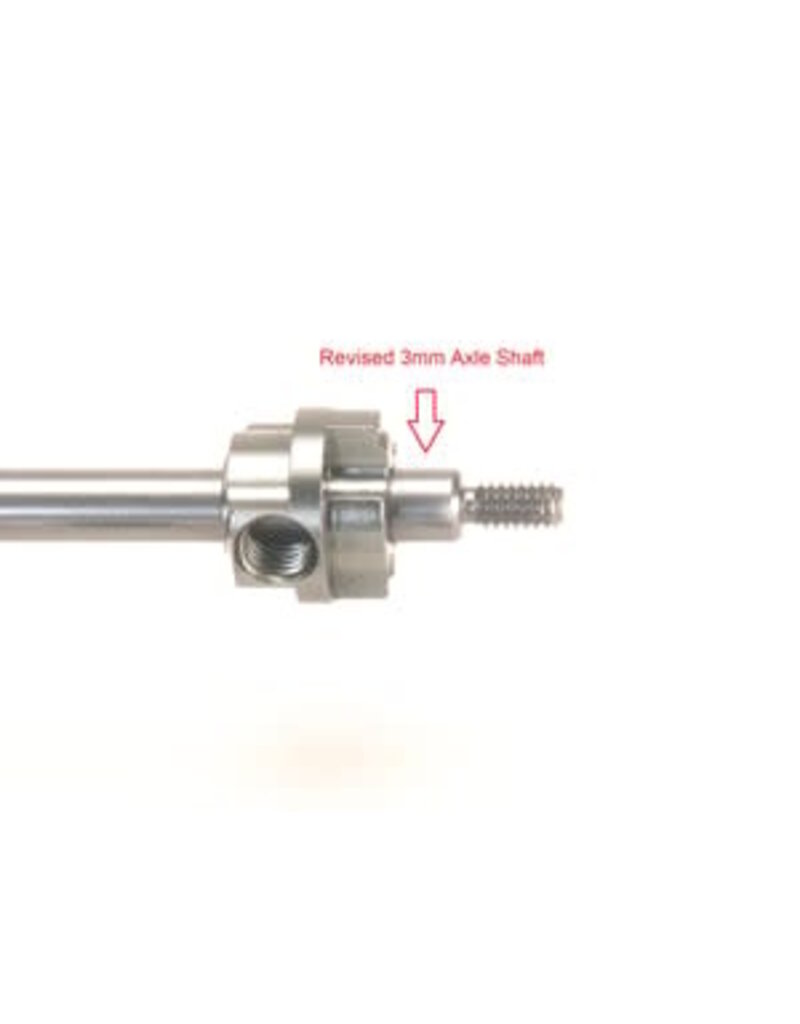

- The axle has been revised to 3mm (both sides use the same size bearing/bushing now)
- Fast gear ratio changes. No disassembly of the differential is necessary for a spur gear change.
- Adjustable side gear tension for tight or loose differential action.
- Smooth quiet operation. No gear noise and vibration associated with stock differential
- With the Enclosed case, Racers can add diff grease to fine-tune diff action, the covers also help reduce dust and particles on diff gears therefore less maintenance.

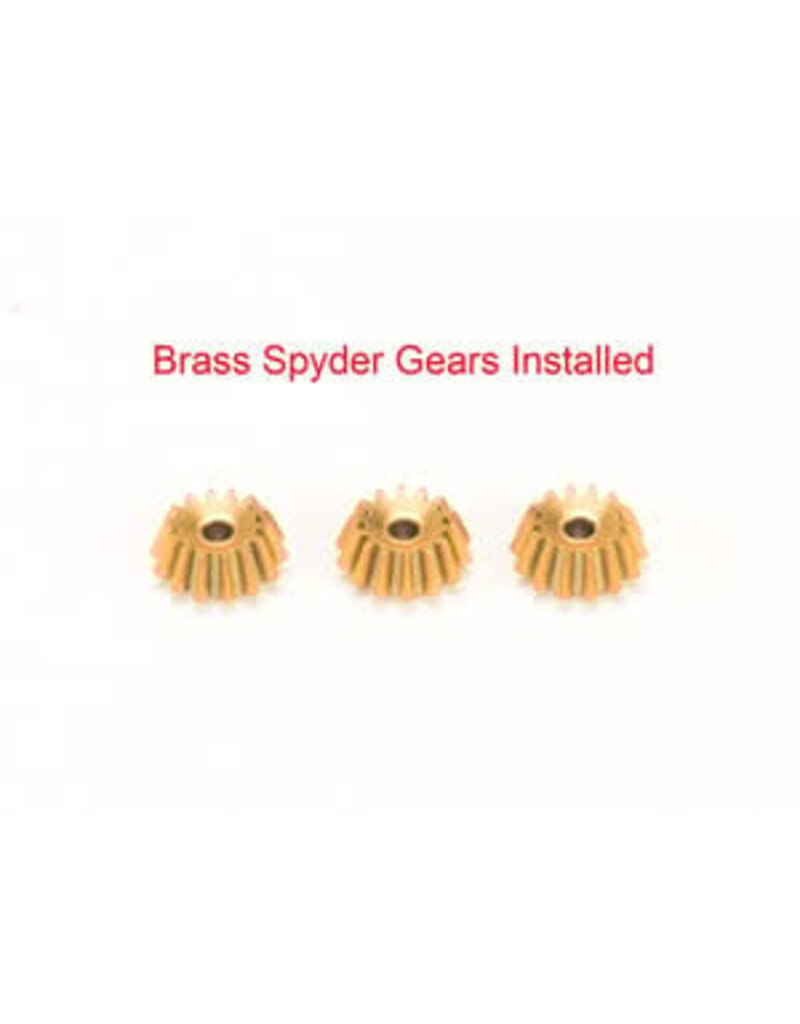

- Comes with the newest Brass Spyder Gear (MR2055B) for ultra-smooth action
- Do Not Come with Pinion Gears (you will need 64P Pinion gears of your choice)

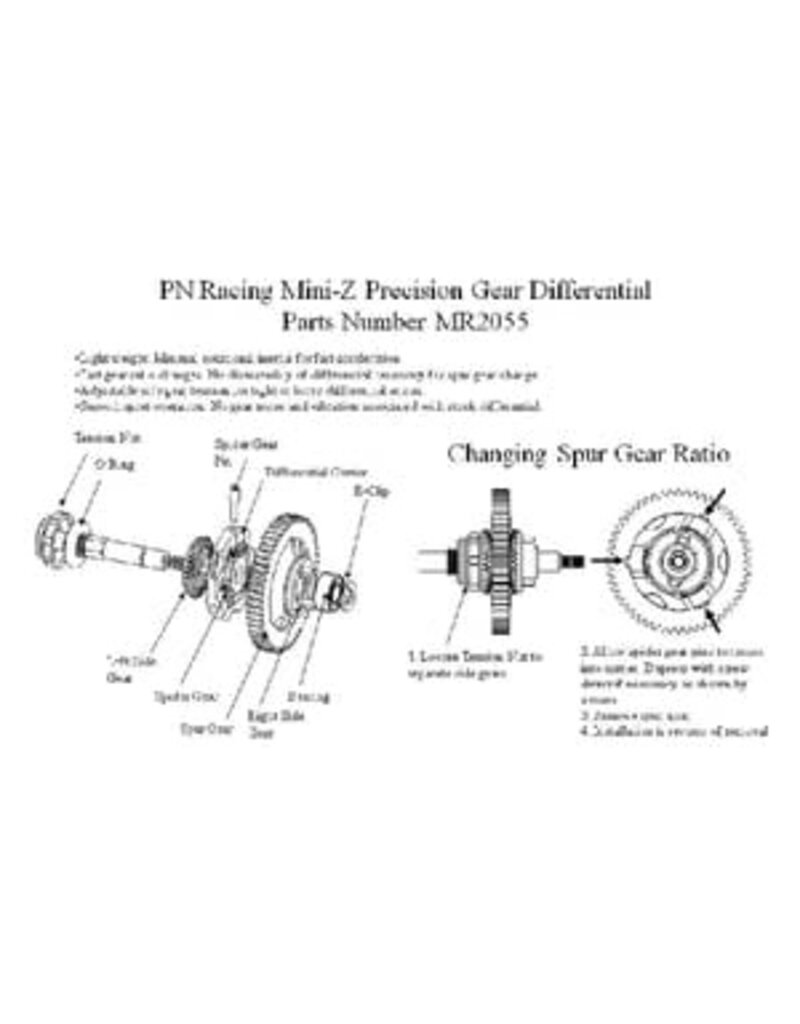

Changing Spur Gear Ratio:
- Remove 3 screws on the covers and remove both covers
- Loosen the Tension Nut to separate the side gears
- Allow spider gear pins to recess into the carrier. Depress with a screwdriver if necessary, as shown by the arrows
- Remove the spur gear
- Installation is the reverse of removal
