POWER HOBBY PH1295BLACK 1/8 TWIN TURBO HIGH SPEED 30MM COOLING FANSW/ 40-42 DIA. MOTOR MOUNT BLACK

Availability:

In stock

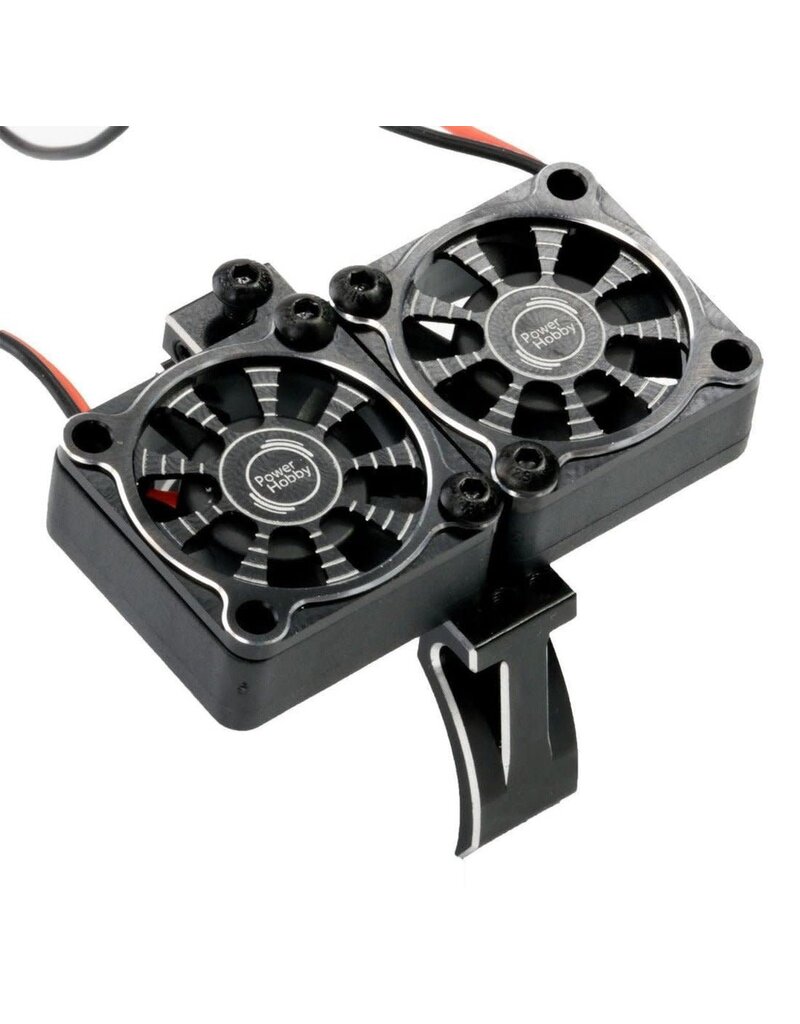

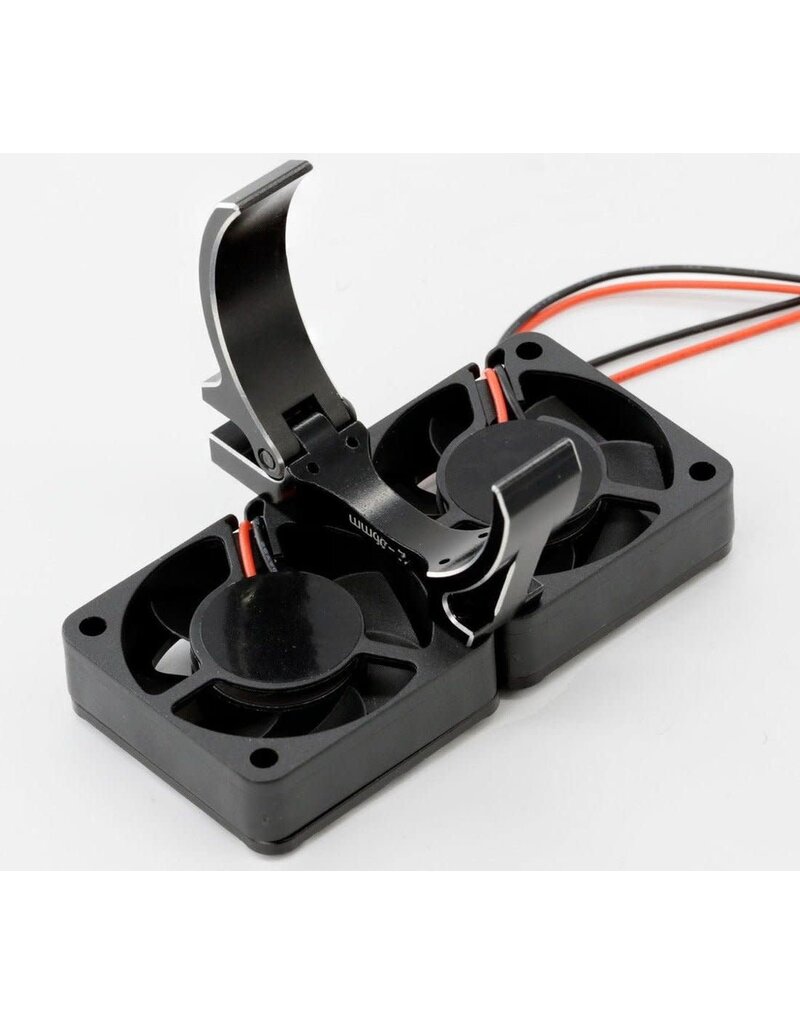

The Powerhobby Aluminum Motor Heatsink with Twin Turbo Cooling Fans is designed to help reduce motor temperatures in high-performance 1/8-scale RC vehicles.

The aluminum motor mount fits compatible motors measuring 40–42mm in diameter. Two high-speed 30mm cooling fans provide increased airflow across the motor to help control heat during extended runs, speed runs, and demanding off-road use.

Each fan reaches up to 28,000 RPM at 8.4V. The included JST Y-splitter combines both fans into a receiver-style connector that can plug into a compatible open receiver channel or external BEC. The total wire length is approximately 15 inches.

Features

• Designed for compatible 1/8-scale RC motors
• Fits motors measuring 40–42mm in diameter
• Dual high-speed 30mm cooling fans
• Each fan produces up to 28,000 RPM at 8.4V
• Aluminum motor mount and heatsink
• Aluminum fan covers
• Wide 6V–8.4V operating range
• Includes JST Y-splitter
• Receiver-style power connector
• Approximately 15-inch total wire length
• Black finish

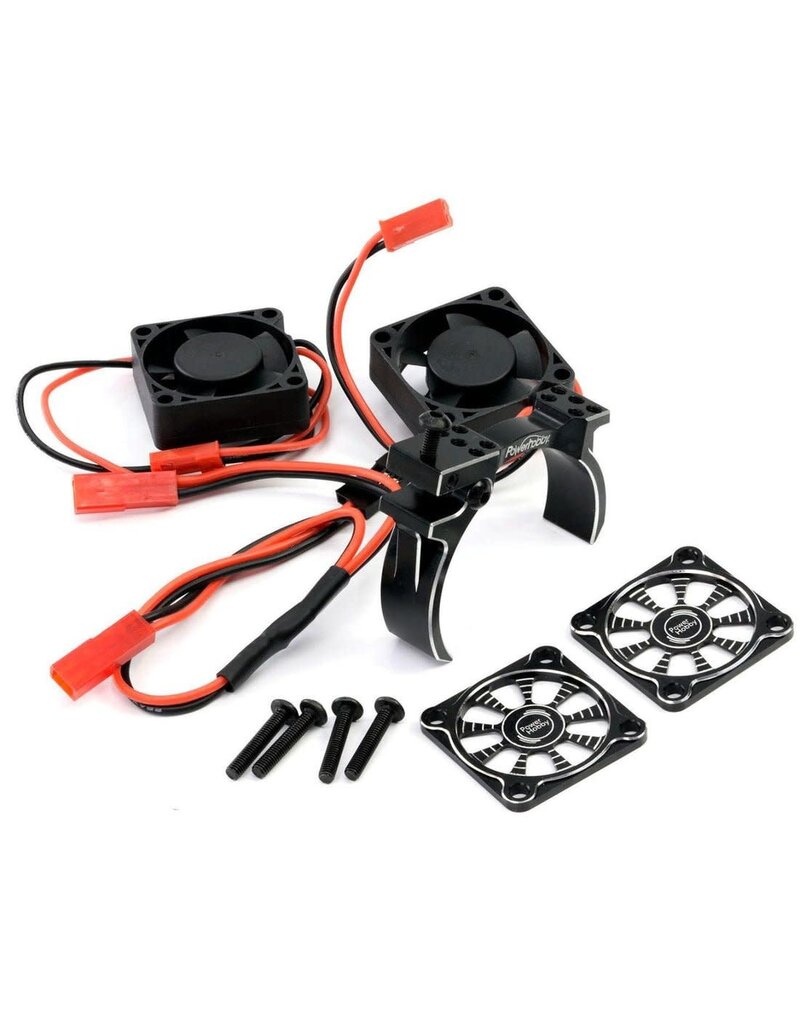

Includes

• 1 Aluminum Motor Heatsink and Mount
• 2 High-Speed 30mm Cooling Fans
• 2 Aluminum Fan Covers
• 1 JST Y-Splitter with Receiver-Style Connector

Specifications

• SKU: PH1295Black
• Barcode: 791511477428
• Product Type: Motor Heatsink and Dual-Fan Cooling System
• Recommended Scale: 1/8 Scale
• Compatible Motor Diameter: 40–42mm
• Fan Quantity: 2
• Fan Dimensions: 30 × 30 × 10mm
• Maximum Fan Speed: 28,000 RPM at 8.4V
• Input Voltage: 6V–8.4V
• Heatsink Material: Aluminum
• Fan-Cover Material: Aluminum
• Total Wire Length: 15 in
• Connector: Receiver-Style Connector with JST Y-Splitter
• Color: Black

Fits

Universal 1/8-scale RC applications using a compatible 40–42mm diameter motor, including many:

• 1/8-scale buggies
• 1/8-scale truggies
• 1/8-scale monster trucks
• On-road and off-road RC vehicles
• Custom high-performance RC builds

Verify the motor diameter, available chassis clearance, fan voltage, connector compatibility, and mounting position before purchasing.

Installation Note

Secure the aluminum heatsink around a clean section of the motor can. Make sure the fans, covers, and wiring do not contact the motor shaft, pinion gear, spur gear, center driveshaft, or other moving components.

Connect the fans only to a compatible receiver port or external BEC supplying between 6V and 8.4V. Confirm that the selected power source can provide enough current to operate both fans. Do not exceed 8.4V.
