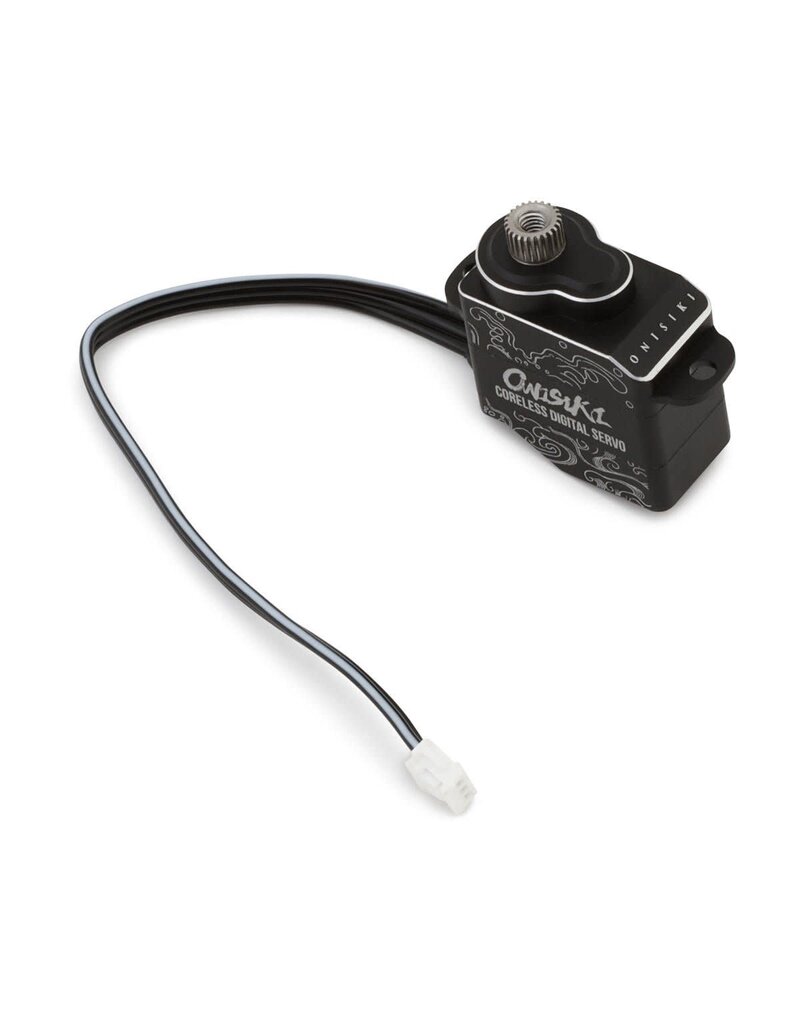

The Onisiki Digital Coreless Micro Steering Servo is a compact performance servo designed for 1/24 to 1/28 scale RC cars. Its combination of a digital coreless motor, full aluminum case, and compact dimensions makes it well suited for micro racing and drift applications where quick steering response and minimal space are important.
About the Onisiki Micro Servo
Coreless Digital Performance

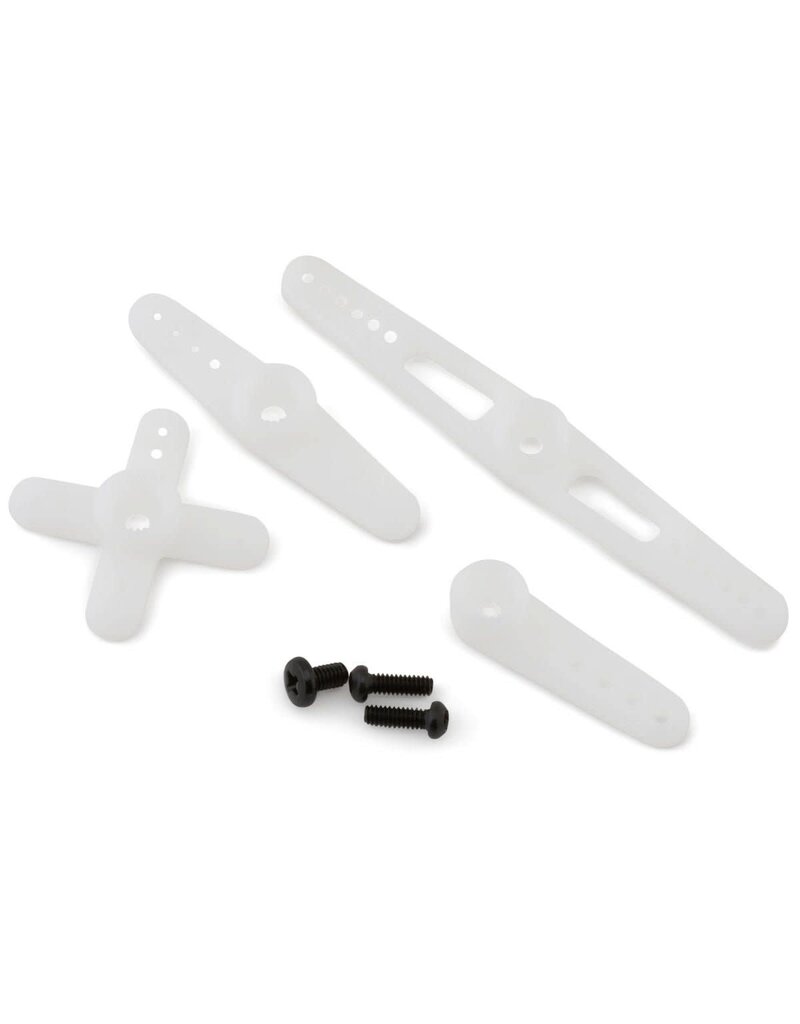

A digital coreless motor provides fast, responsive steering operation for small-scale RC platforms. The servo operates from 4.8V to 6.0V and features a 25-tooth output spline for compatibility with appropriately sized servo horns.
Full Aluminum Case
The servo uses a full aluminum housing for increased rigidity and durability while maintaining a compact footprint. Etched Onisiki graphics provide a clean finished appearance suitable for detailed micro builds.
Compact Micro Design
Measuring only 20 x 11.3 x 22mm and weighing approximately 12g, the ONI1903 is designed specifically for space-restricted micro RC applications, including 1/24, 1/27, and 1/28 scale vehicles.
Features:
Digital micro steering servo
Coreless motor
Full aluminum servo case
Etched Onisiki graphics
Designed for fast steering response
Suitable for micro racing and drifting
Designed for 1/24, 1/27, and 1/28 scale RC cars
4.8V–6.0V operating voltage
25T output spline
JR-style connector
Compact 20 x 11.3 x 22mm dimensions
Lightweight 12g construction
Includes:
(1) Onisiki Digital Coreless Micro Aluminum Steering Servo
