| Availability: | In stock |

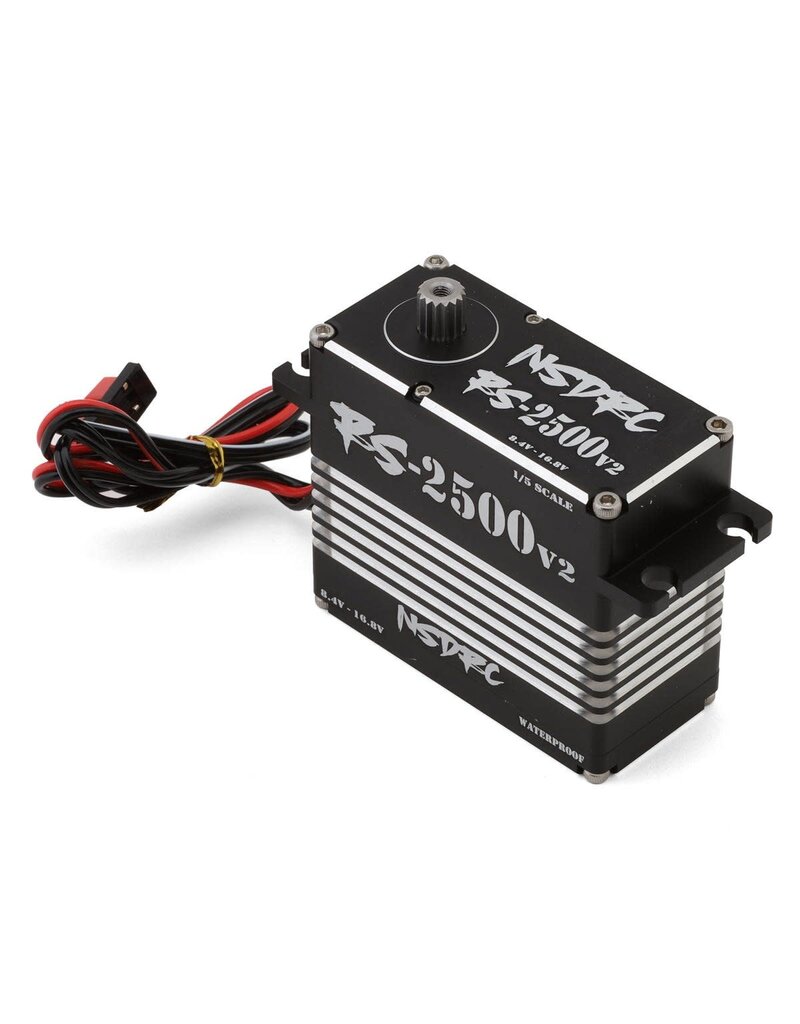

The No Superior Designs RC RS2500 V2 1/5 Insane Torque Servo is a high-performance, high-voltage steering servo engineered for large-scale RC vehicles that demand extreme torque, fast response, and heavy-duty construction.
Capable of operating from 8.4V up to 16.8V, the RS2500 V2 produces as much as 2650 oz-in (191kg-cm) of torque while reaching speeds as quick as 0.075 sec/60° at maximum operating voltage. This combination makes it well suited for large-scale crawlers, bashers, trucks, and other demanding applications where conventional servos may struggle to provide sufficient steering authority.
The RS2500 V2 is designed to take advantage of high-voltage power systems, with performance increasing significantly as operating voltage rises.
Torque output is rated at:
8.4V: 1520 oz-in / 110kg-cm
12.6V: 2175 oz-in / 157kg-cm
16.8V: 2650 oz-in / 191kg-cm
The substantial torque output provides the steering force needed to move large tires and heavy steering assemblies found on 1/5 and 1/6 scale RC platforms.
High torque is combined with impressive transit speed for a servo of this size.
Speed is rated at:
8.4V: 0.15 sec/60°
12.6V: 0.097 sec/60°
16.8V: 0.075 sec/60°
The combination of speed and torque helps provide responsive steering without sacrificing the power required for heavy large-scale vehicles.
A high-performance sensored brushless motor provides efficient and responsive operation while offering the durability expected from a premium large-scale servo.
A digital high-accuracy encoder helps provide precise positioning and consistent steering response.
The internal drivetrain uses hardened stainless steel gears designed to withstand the tremendous loads generated by the servo.
Dual ball bearings provide additional support for smooth operation under demanding steering loads.
The electronics and drivetrain are housed inside a black anodized CNC-machined aluminum case.
In addition to providing a rigid structure for the internal components, the aluminum construction helps dissipate heat generated during demanding operation.
A 10-point O-ring sealing system helps protect the servo against moisture and contaminants encountered during normal RC use.
The servo is water resistant but is not intended for complete submersion.
The RS2500 V2 uses a 15-tooth output spline. A properly fitting servo horn must fully engage the spline to safely transfer the servo's substantial torque.
When using an aftermarket horn, verify that the spline engagement is deep enough to fully seat on the output shaft.
Designed for large-scale RC applications
1/5 scale high-torque servo
High-voltage operation
8.4V to 16.8V operating range
Up to 2650 oz-in of torque
Up to 191kg-cm of torque
Transit speed as quick as 0.075 sec/60°
Sensored brushless motor
Digital high-accuracy encoder
Hardened stainless steel gears
Dual ball-bearing construction
CNC-machined aluminum case
Black anodized finish
10-point O-ring sealing system
Water-resistant construction
15T output spline
Designed for extreme steering loads
Suitable for large tires and heavy steering systems
Popular upgrade option for large-scale crawler applications
NSDRC part number NSD-RS25
Torque @ 8.4V: 1520 oz-in / 110kg-cm
Torque @ 12.6V: 2175 oz-in / 157kg-cm
Torque @ 16.8V: 2650 oz-in / 191kg-cm
Speed @ 8.4V: 0.15 sec/60°
Speed @ 12.6V: 0.097 sec/60°
Speed @ 16.8V: 0.075 sec/60°
Length: 64mm
Width: 57.3mm
Height: 30mm
Weight: 248g
Output Spline: 15T

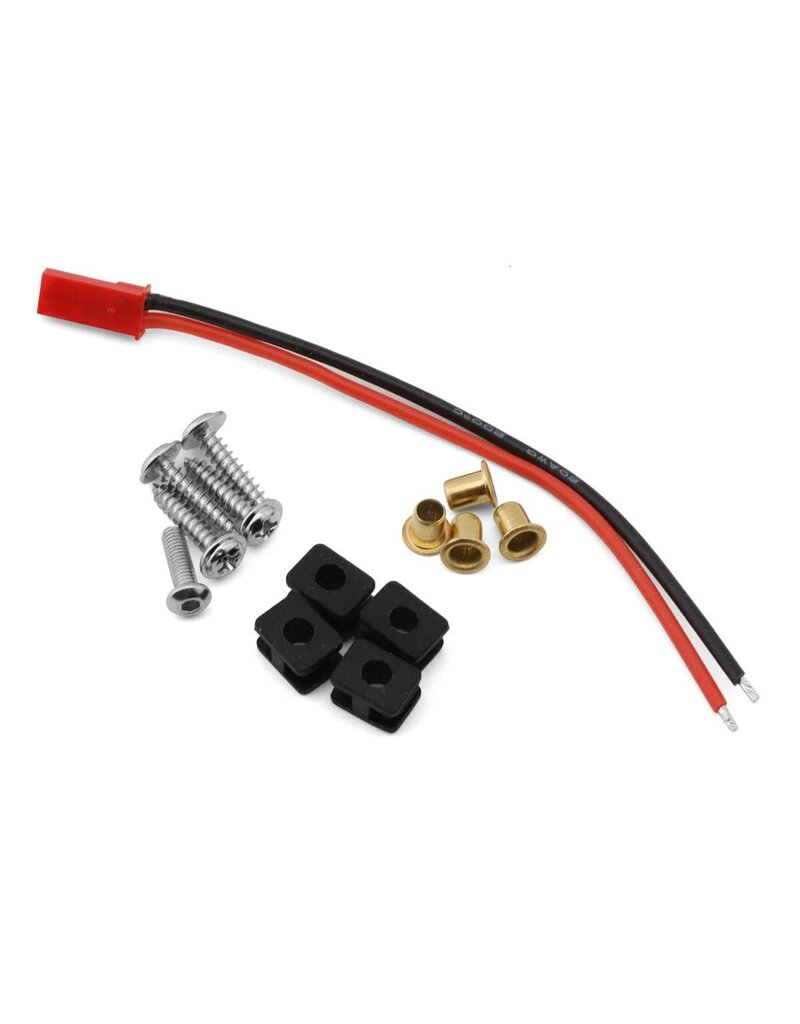

(1) No Superior Designs RC RS2500 V2 1/5 Insane Torque Servo
Multiple Composite Servo Horns
Mounting Screws
Bushings
Rubber Grommets
NOTE: The servo must not be powered through a battery balance plug. The servo power connection or ESC power switch should be disconnected/turned off when the vehicle is not in use. When using an aftermarket servo horn, make sure the horn fully seats onto the RS2500's spline shaft.
This product was added on 09/28/2026 by JM.
