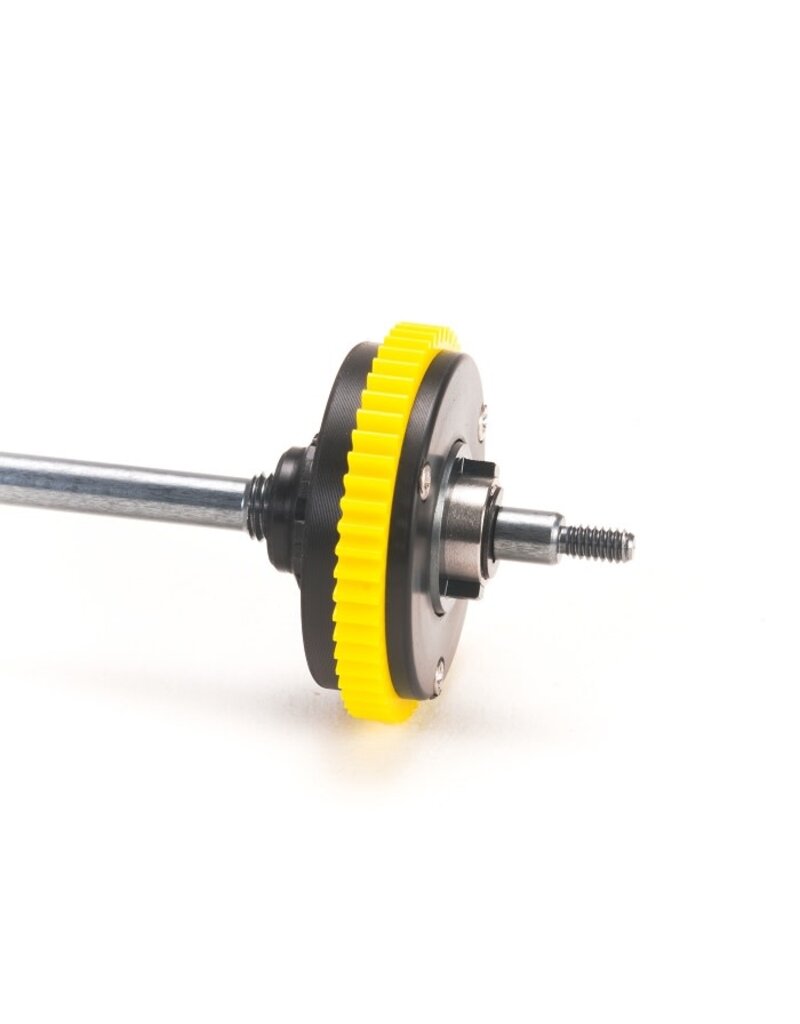

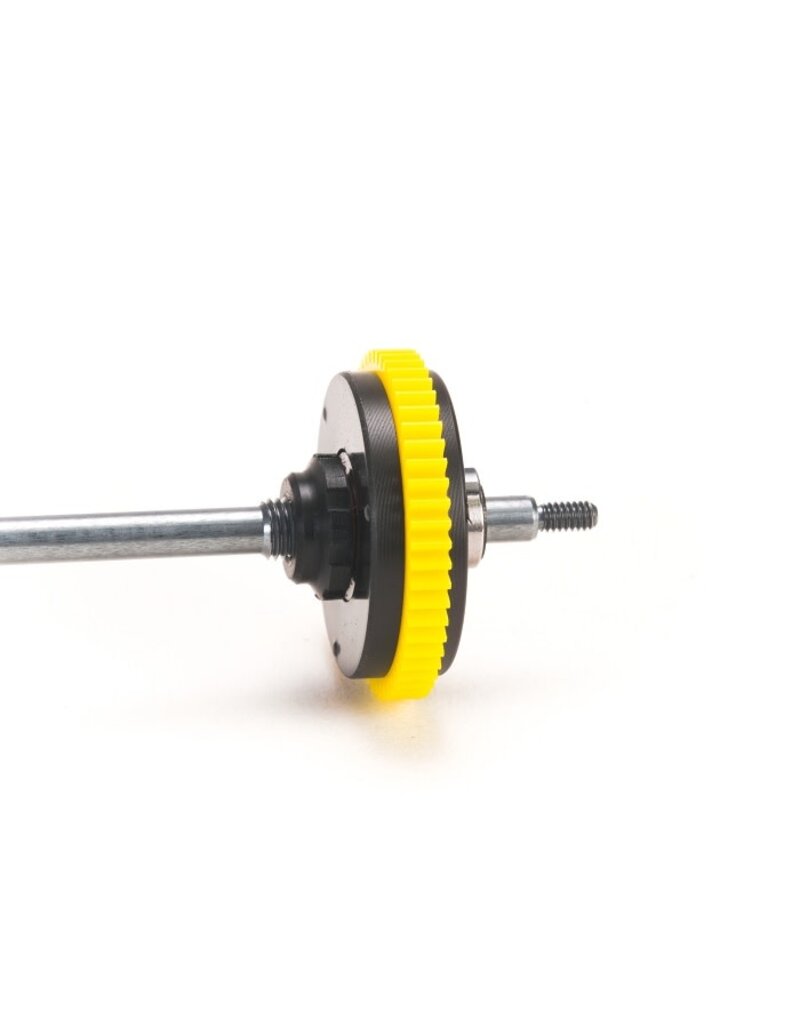

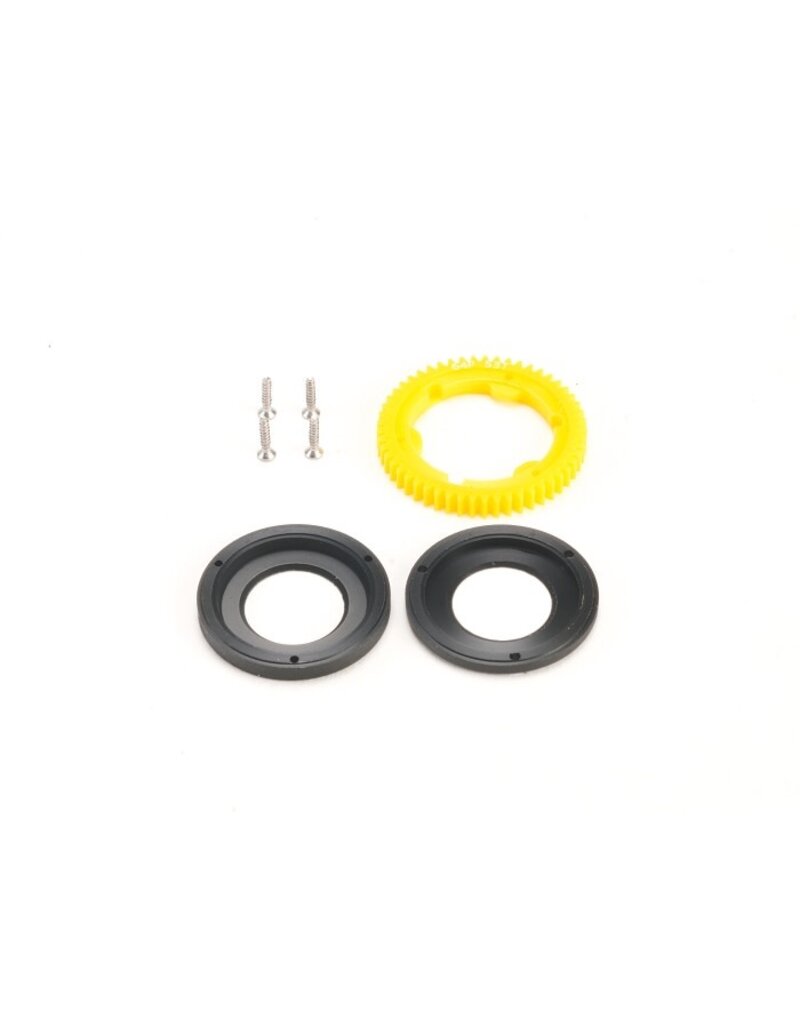

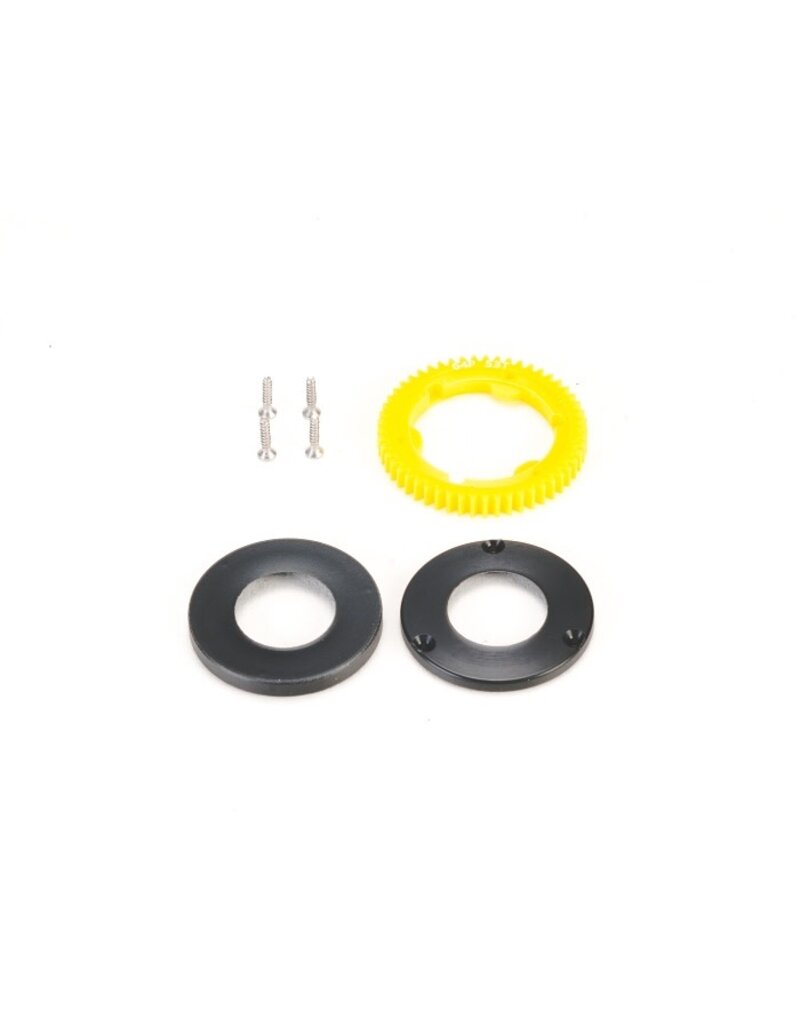

PN Racing PNWC Mini-Z Enclosed Cover Kit Spur Gear 64P 53T for Gear Differential

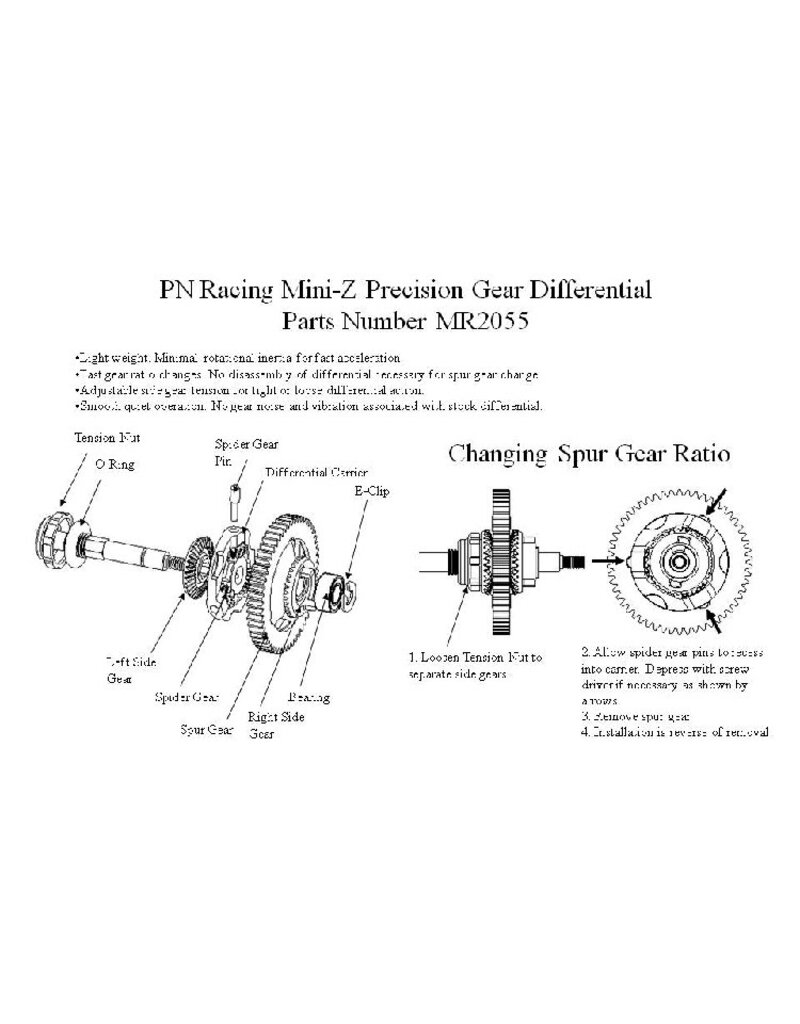

Changing Spur Gear Ratio
- Loosen Tension Nut to separate side gears.
- Allow spider gear pins to recess into carrier. Depress with screw driver if necessary as shown by arrows.
- Remove spur gear.
- Installation is reverse of removal
Install Cover
- Insert Outer Cover (with see through screw hole) in Spur Gear Groove (wheel side) and line up the screw hole with the spur gear
- Insert Inner Cover (screw hole can't see through) in Spur Gear Groove (shaft side) and line up the screw hole with the spur gear
- Install 3 screws, gently tighten diagonally (Thin Plastic can strip easily, Do Not Over Tighten)
