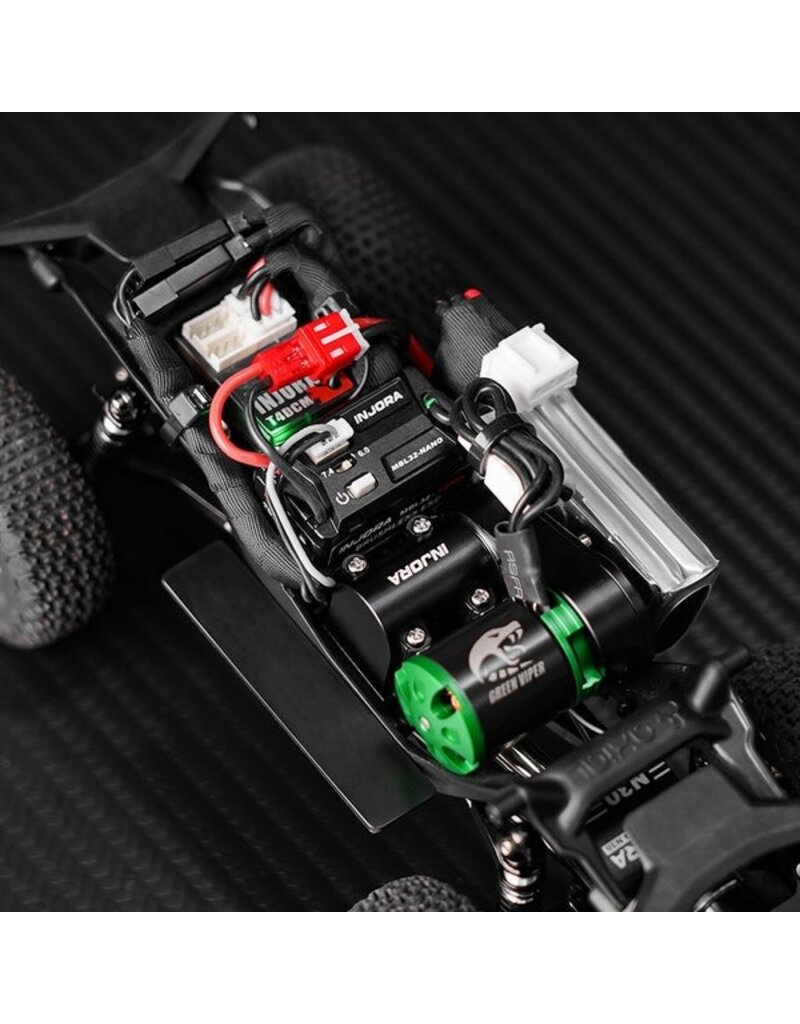

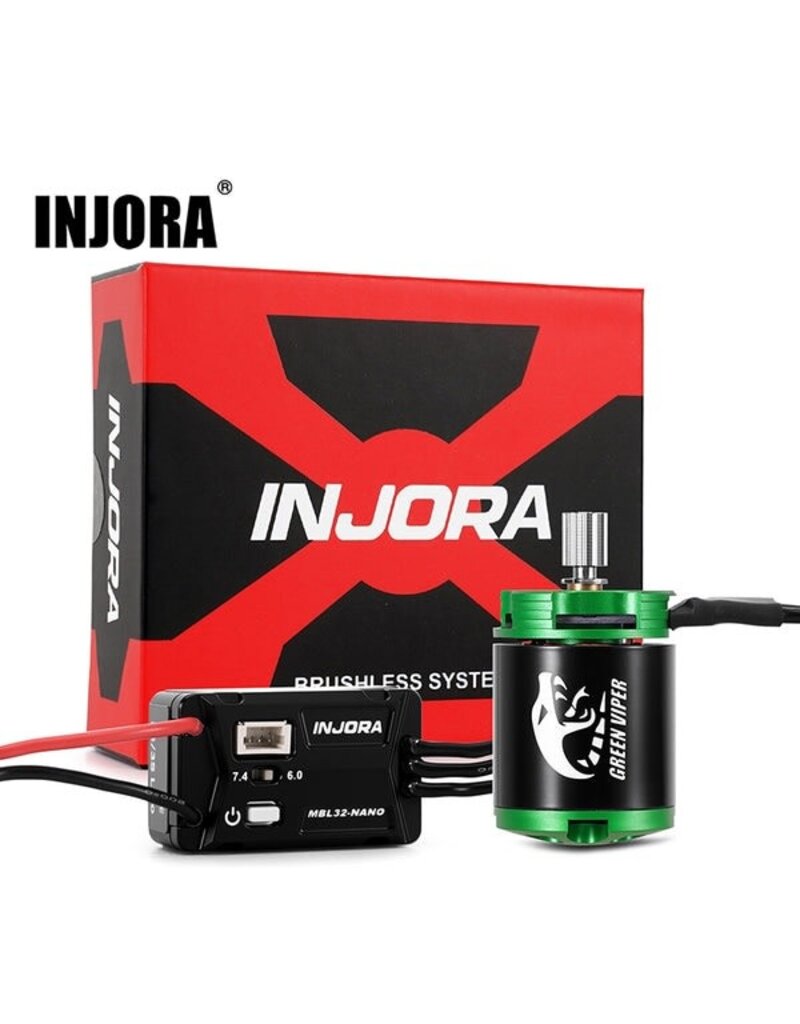

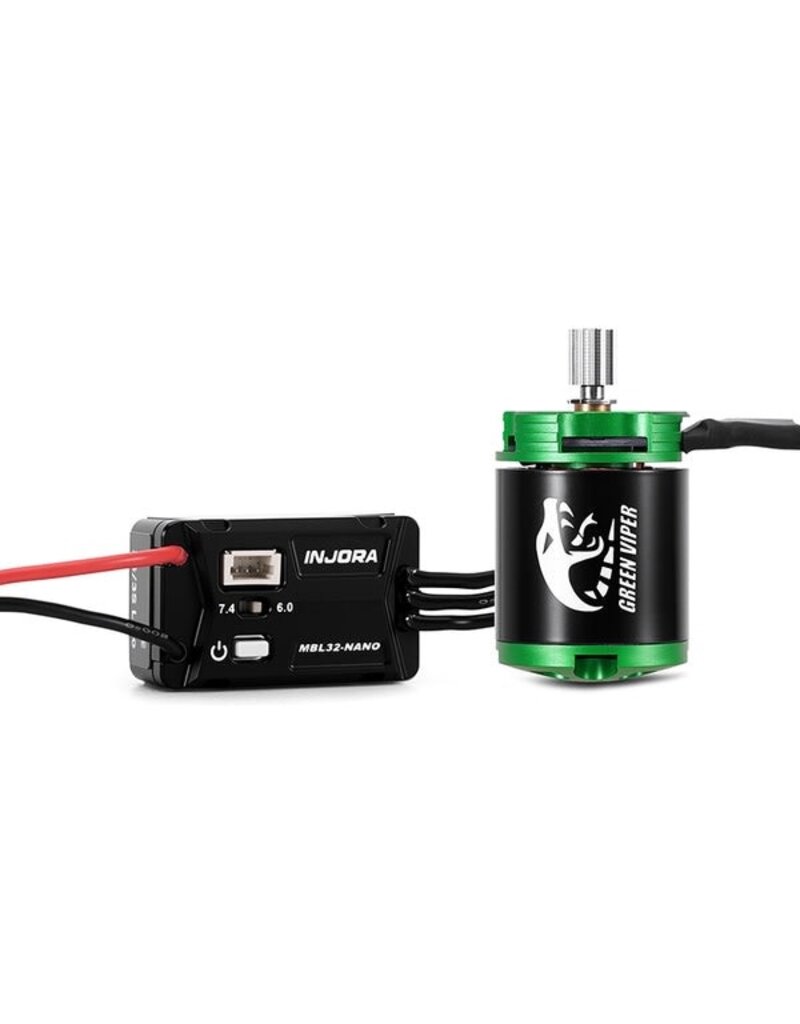

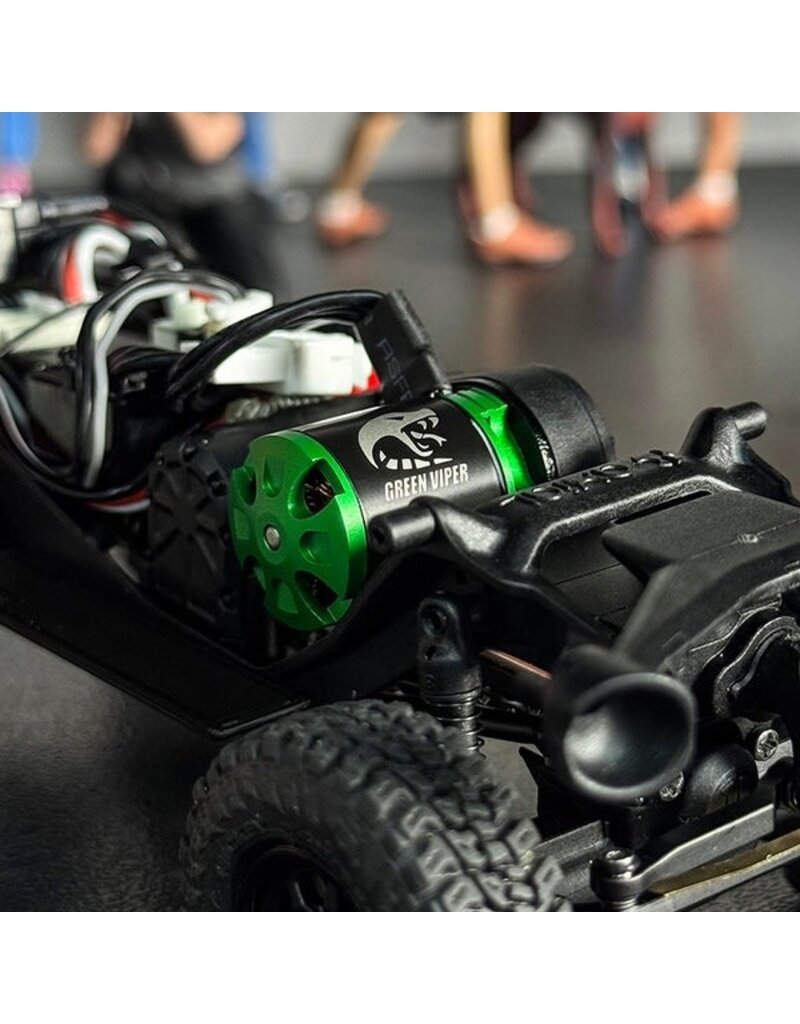

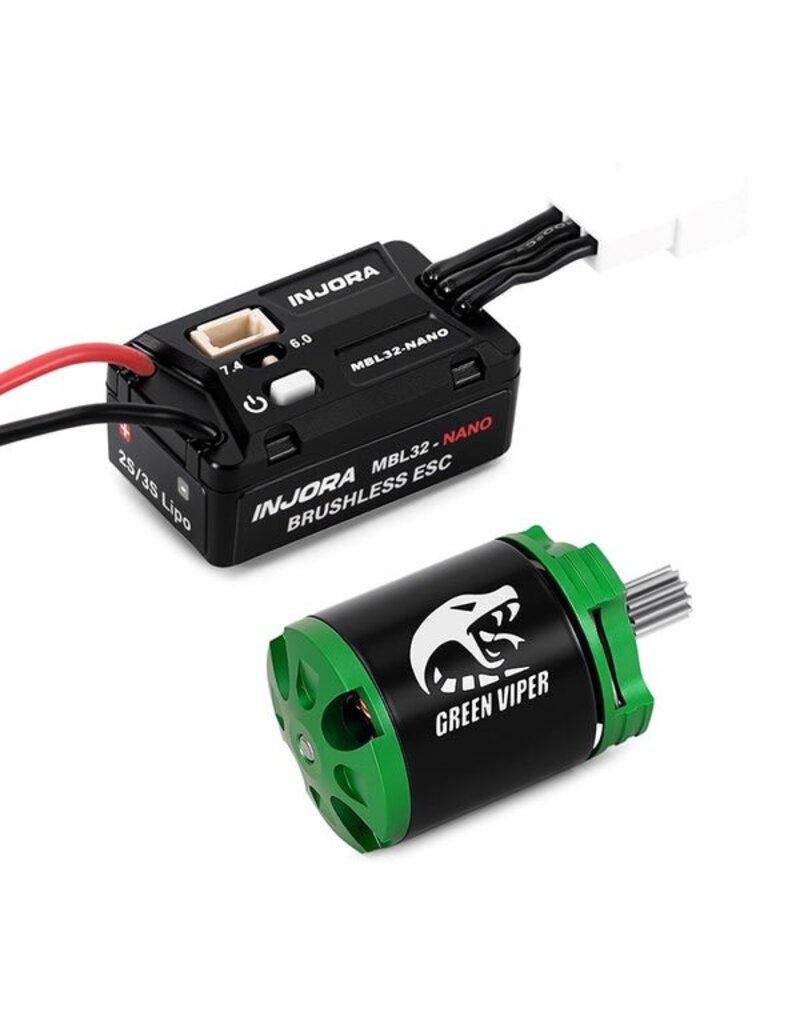

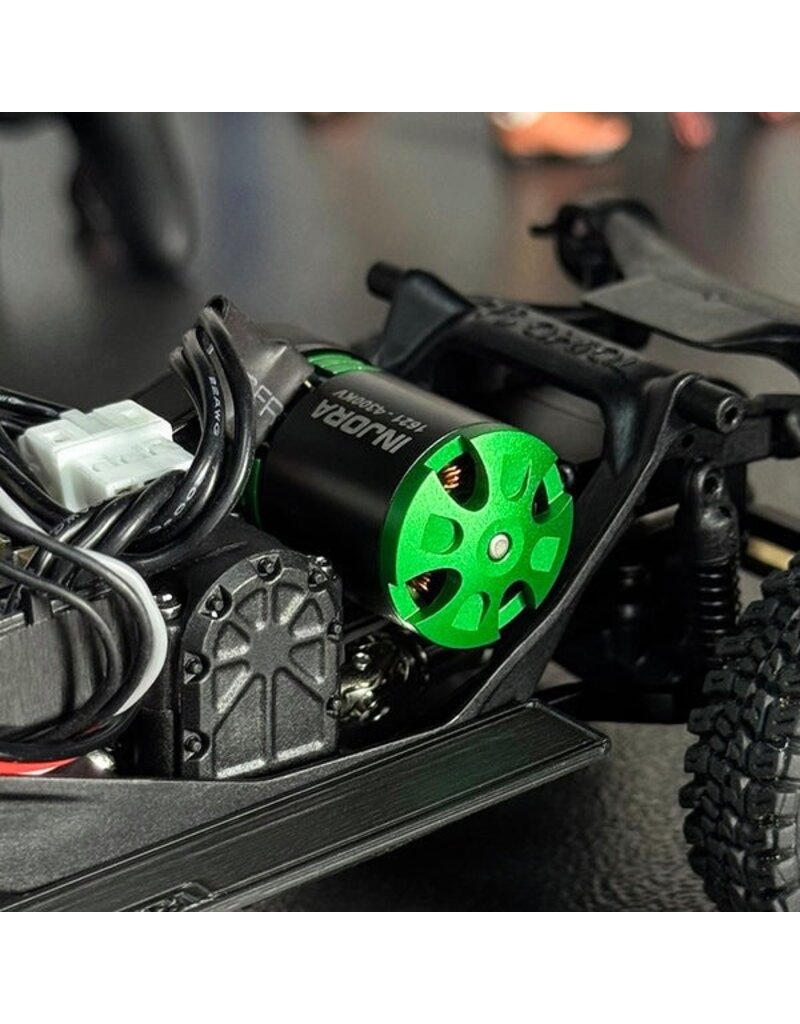

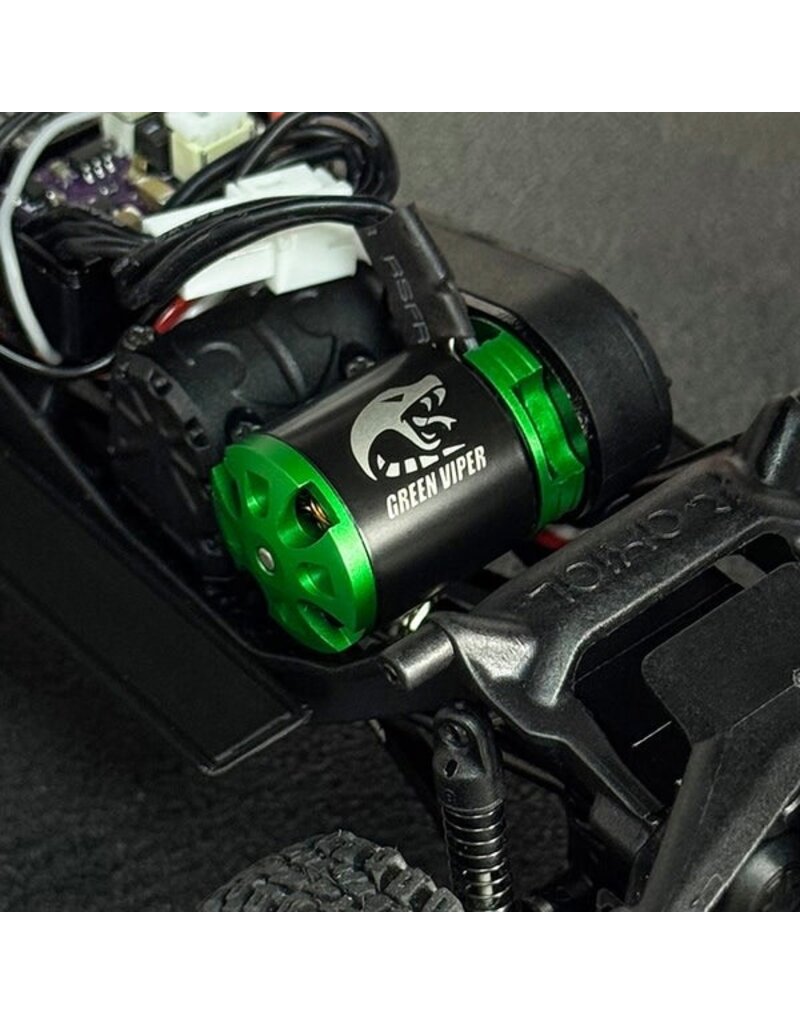

INJORA MBL32-NANO Brushless ESC & 1621 Green Viper Motor 4300KV for 1/30 Axial SCX30

Note

• Radio System: Not compatible with the stock SCX30 radio. A transmitter and receiver with a CH2 port are required.
• Pre-configured and ready to run. No programming required.
• USB programmer card is not included.
• Please use a 2S LiPo battery only. (3S batteries may damage the 1621 Green Viper motor.)
• Do not flash or modify the firmware yourself. Any damage caused by unauthorized firmware flashing or modification is not covered under the INJORA warranty.

Features

• The INJORA MBL32-NANO is based on AM32 firmware and is specifically designed for RC crawlers with programmable functionality.
• Smooth and linear low-speed control with powerful, aggressive high-speed performance.
• Runs significantly quieter than brushed systems with virtually no motor noise.
• Built-in BEC with adjustable output voltage: 6.0V / 7.4V.
• Waterproof design for all-weather operation.
• Supports PC programming via USB programmer card.
• Multiple protection features including low-voltage protection, fail-safe protection, and rotor lock protection.
• Reduced motor noise compared to brushed systems.
• Protective sleeve at the wire outlet enhances durability.
• Delivers precise low-speed control and strong high-speed performance.

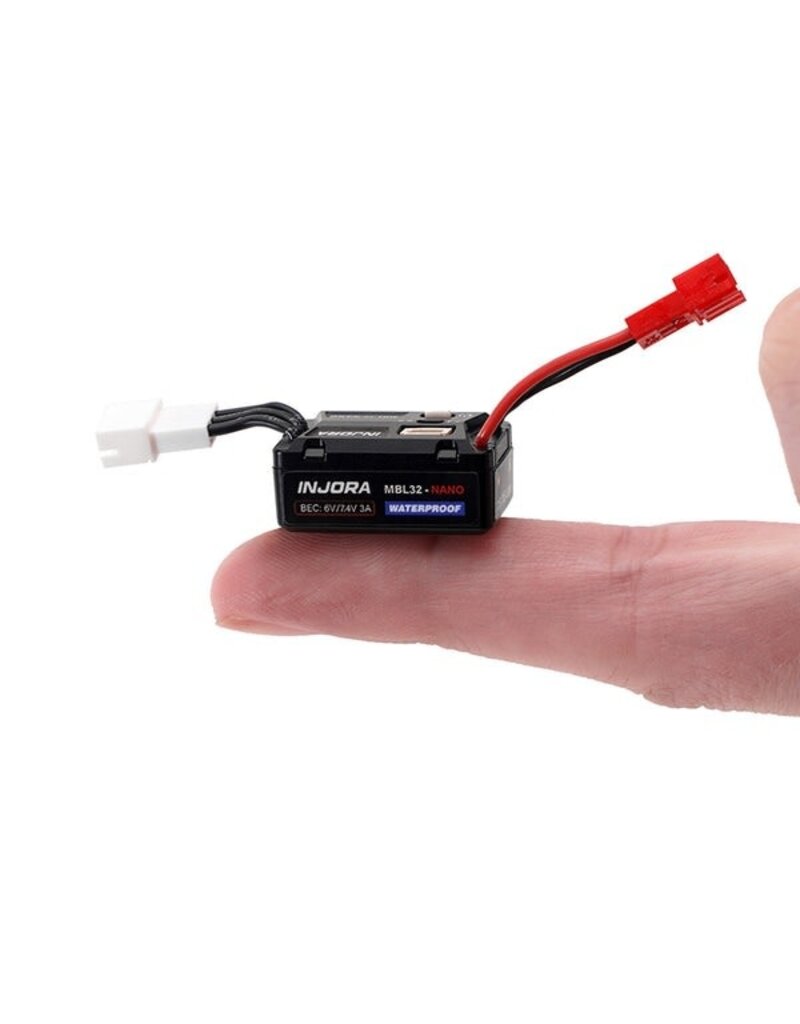

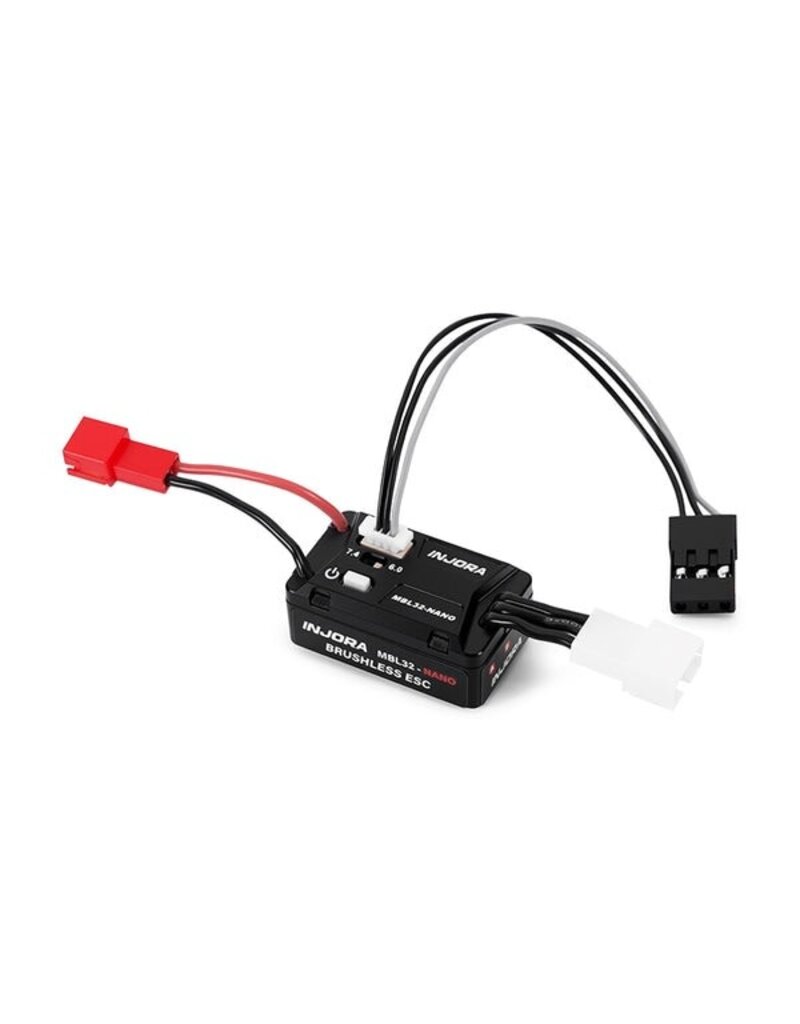

ESC Specifications

• Part Number: MBL32-NANO
• Continuous Current: 25A
• Peak Current: 45A
• Battery Compatibility: 2S LiPo
• BEC Current: 3A
• Output Voltage: 6.0V / 7.4V Adjustable
• Dimensions (L × W × H): 25.5 × 15 × 12mm
• Weight: 9.5g (0.34oz)
• Compatible Motors: INJORA 1621 / 1721 Series
• Waterproof: Yes

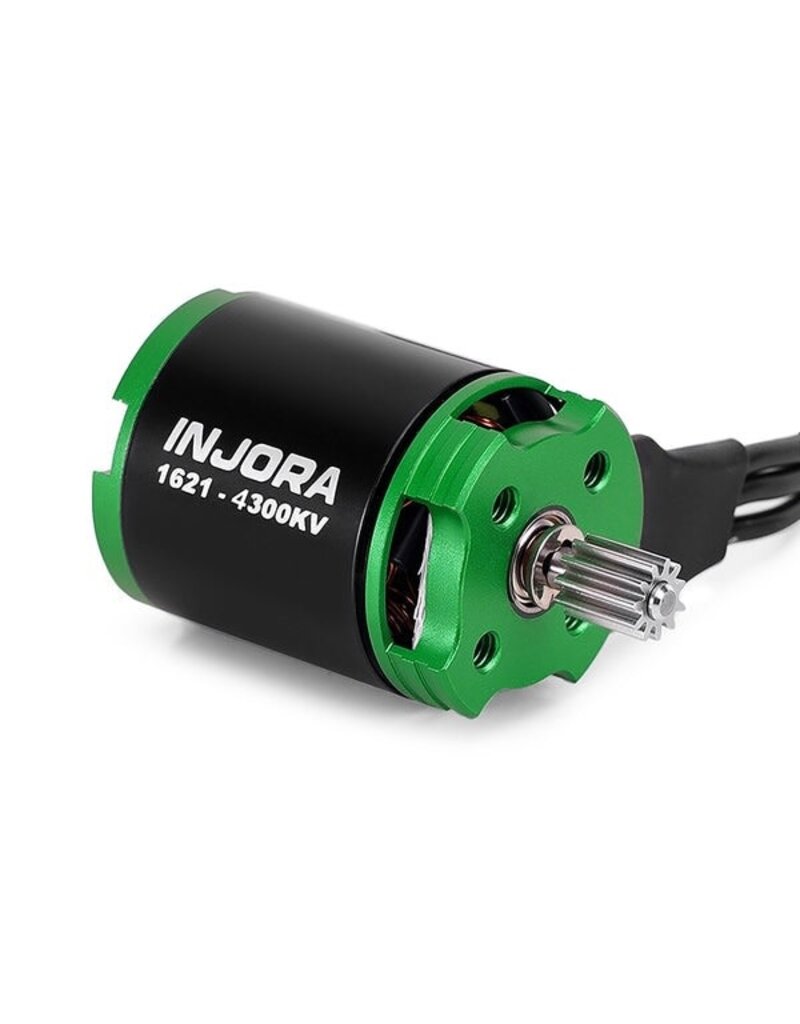

Motor Specifications

• Model Number: 1621
• Motor Type: Sensorless Brushless Outrunner
• Waterproof: Yes
• Operating Voltage: 7.4V (2S LiPo)
• KV Rating: 4300KV
• Motor Slots: 9
• Motor Poles: 12
• No-Load Current (7.4V): 0.8A
• Maximum Current: 12A
• Motor Connectors: PH2.0 3-Pin

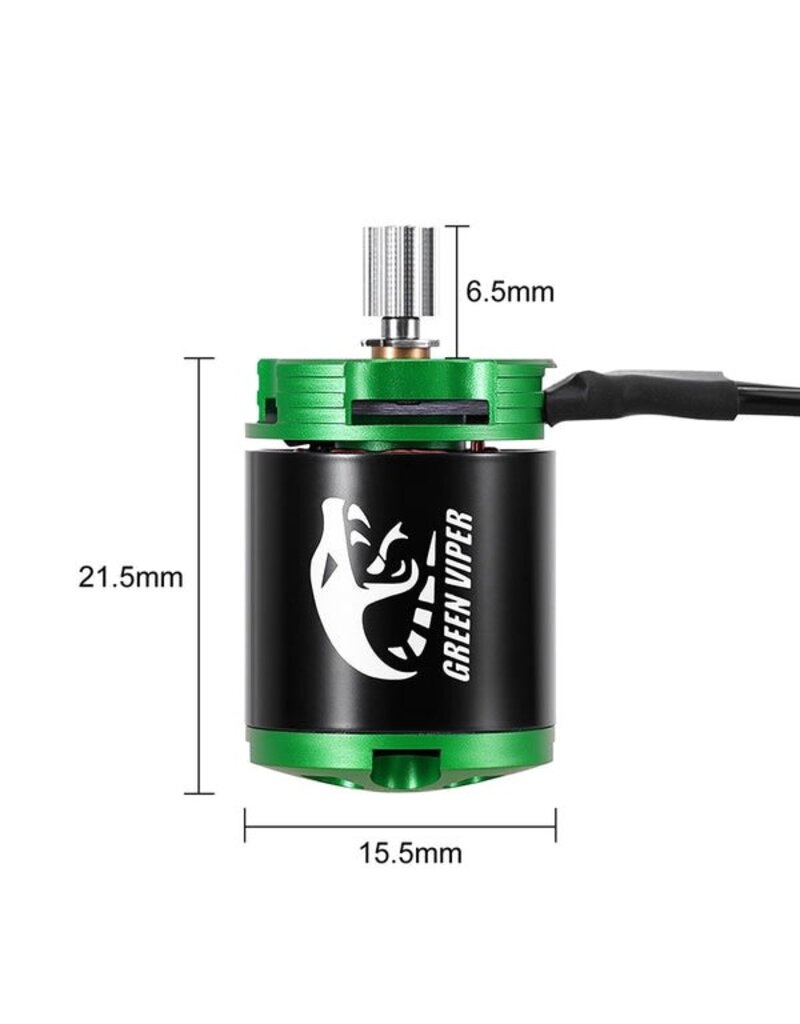

• Dimensions: Ø15.5 × 21.5mm
• Output Shaft Diameter: Ø1.7mm
• Included Pinion Gear: 0.3 Mod 11T
• Lead Length: 65mm
• Weight: 15g

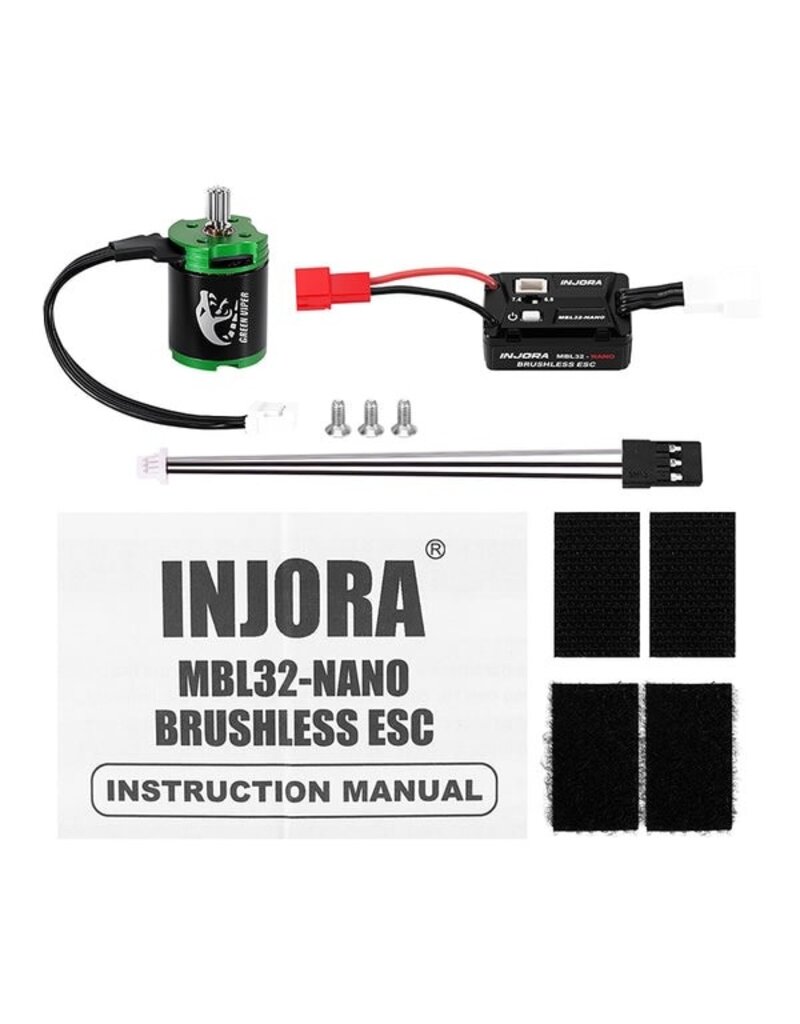

Package Includes

• 1 × MBL32-NANO Brushless ESC
• 1 × 1621 Green Viper Brushless Motor
• 1 × Instruction Manual
