| Article number: | MBL32-NANO-INM21 |
| Availability: | In stock |
Powerful & Smooth SCX30 Brushless Electronics
Unlock next-level micro crawling with the Injora MBL32-NANO ESC and Green Viper 1621 motor combo — whisper-quiet brushless power, ultra-smooth low-speed control, and compact performance built to make your SCX30 feel unstoppable on the rocks.

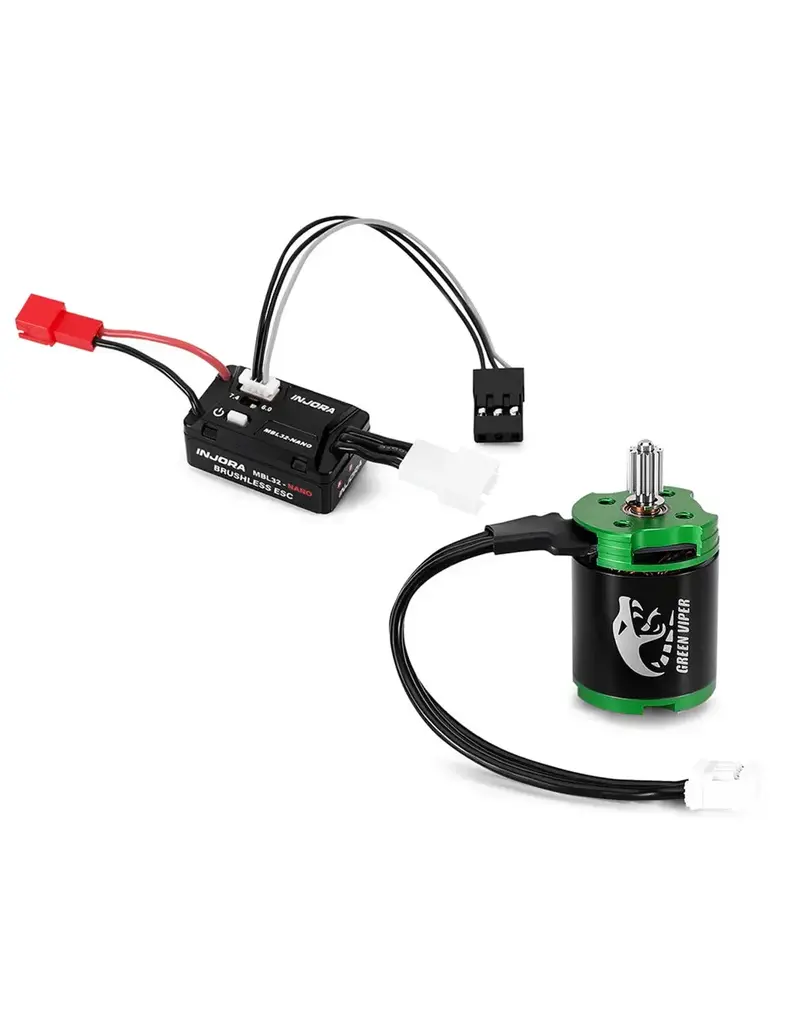

The Injora MBL32-NANO Brushless ESC and 1621 Green Viper Motor Combo is precisely tuned for the Axial SCX30, delivering whisper-quiet operation, ultra-smooth low-speed control, and aggressive power on demand. This combo transforms micro crawling with precise throttle response and consistent performance across technical terrain.
Featuring a nano-sized waterproof ESC with 25A continuous and 45A burst current capability, adjustable 6V or 7.4V BEC, and PC programmability, the MBL32-NANO delivers refined control in a compact footprint. Paired with the high-torque 12-pole, 3600kV Green Viper 1621 motor, it produces smooth low-RPM crawling performance with strong punch for climbs and acceleration.
Designed specifically for Injora brushless systems, this combo operates quieter than brushed setups, enhances durability with reinforced wiring, and delivers exceptional low-speed precision for controlled maneuvering. It’s a drop-in, high-performance upgrade for SCX30 drivers who demand smooth control, efficiency, and trail-dominating capability.
Designed specifically for the Axial SCX30 micro crawler
Whisper-quiet brushless operation with reduced drivetrain noise
Ultra-smooth and linear low-speed throttle control
Strong and responsive performance at higher RPM
Compact, lightweight design with high power output
Waterproof ESC for reliable all-weather operation
High-torque 12-pole 3600kV brushless outrunner motor
Adjustable 6V or 7.4V BEC with 3A continuous current
25A continuous and 45A burst ESC current capability
Reinforced motor wiring with protective sleeve for added durability
(1) MBL32-NANO Brushless ESC
(1) Green Viper 1621 Brushless Outrunner Motor
(1) Receiver
Suggested Application: 1/30 Rock Crawler
Motor Type: Brushless Sensorless
Input Voltage: 2–3S (7.4–11.1V) LiPo
Continuous Current: 25A
Burst Current: 45A
BEC Voltage: 5.5V / 7.4V
BEC Continuous Current: 3A
Battery Connector: PH2
Programming: PC programming via USB
Suggested Application: 1/30 Rock Crawler
Motor Type: Brushless Sensorless
Input Voltage: 2S (7.4V) LiPo
kV Rating: 3600kV
Slots: 9
Poles: 12
Output Shaft: 0.066 in (1.7mm)
Dimensions: 0.61 x 0.84 in (15.5 x 21.5mm)
Weight: 0.52 oz (14.9g)
Due to the motor’s kV rating, this ESC should only be used with 2S LiPo batteries.
Pre-configured and ready to run with no programming required; however, this setup requires the use of a standalone receiver.
