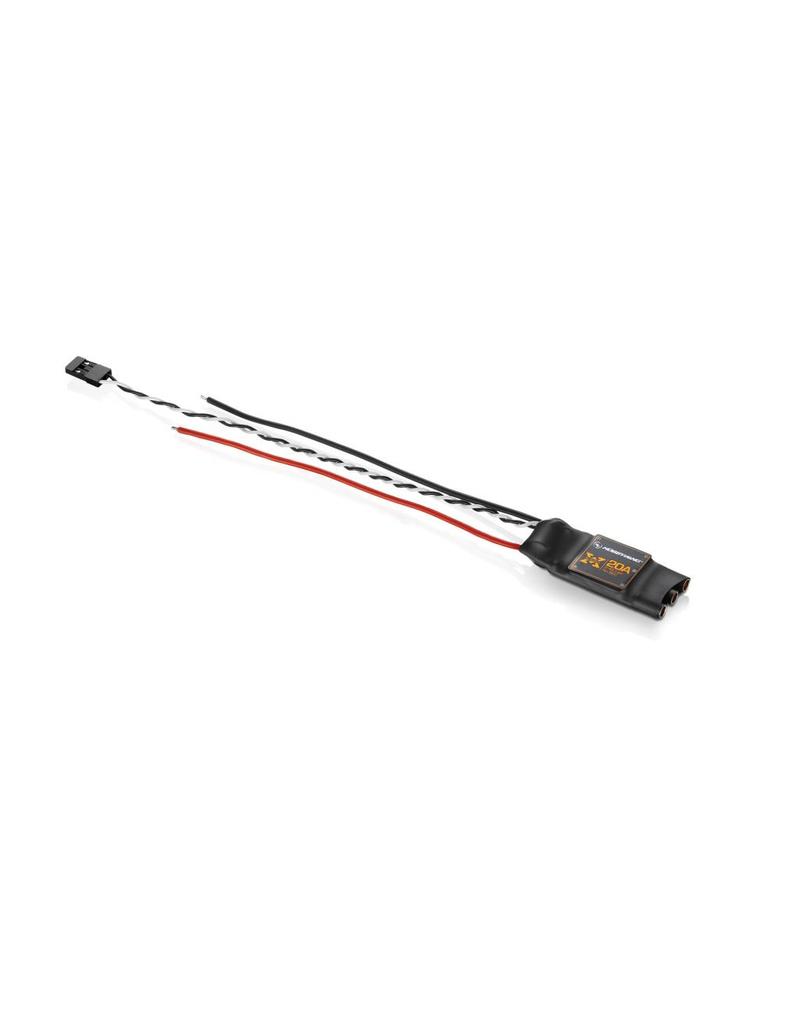

HOBBYWING HWI30901005 XROTOR 20A MULTIROTOR ESC

Article number:	210000015501
Availability:	In stock

Features:

• Special Core program for Multi-Rotor Controllers that greatly improves throttle response.
• Specially optimized software for excellent compatibility with disc-type motors.
• All settings except the "Timing" are preset, making usage simple, highly intelligent and adaptive.
• The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
• Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) .
• Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.
• MOSFET with extra-low resistance brings high performance and great current endurance.

Model / SKU:	XRotor-20A / 30901005
Cont./Peak Current:	20A /30A
Multicopter Applicable	330/450 Class Quadcopter
Input:	3-4S Lipo
BEC Type / BEC Output	No
Programming item	Timing (High/Intermediate)
Timing (High/Intermediate)	52.4 x 21.5 x 7mm 14g (0.49oz)
