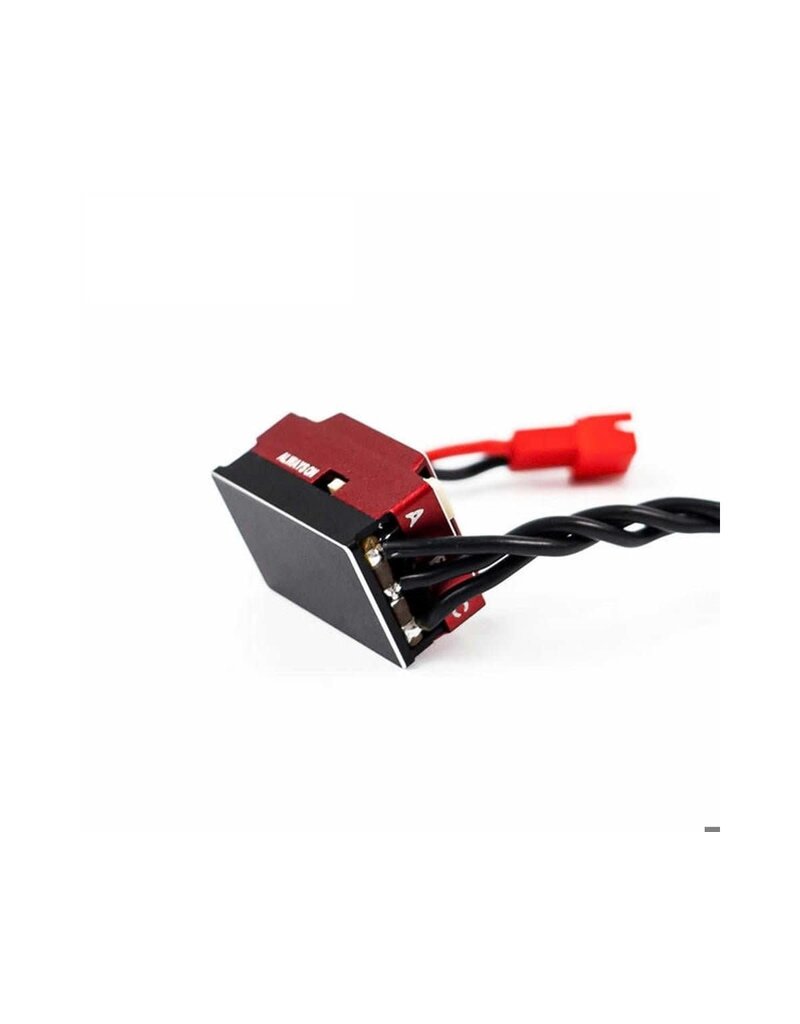

The Furitek Microboost 2S 25A Brushless ESC is a compact electronic speed controller developed for high-performance 1/24, 1/27, and 1/28 scale drift and racing applications. Supporting both sensored and sensorless brushless motors, the Microboost combines extensive tuning options, real-time performance monitoring, and drift-focused features in a compact package designed for space-limited micro RC chassis.
This Red Edition includes an LCD display that provides convenient access to operating information and ESC settings directly at the vehicle. With 25A continuous output, 50A burst capability, an adjustable high-output BEC, and support for Furitek wireless programming, the Microboost offers extensive control over the power system and driving characteristics.
The Microboost supports both sensored and sensorless brushless motors, providing flexibility when choosing a motor for different drift and racing setups.
Its sensored operation provides the smooth, predictable low-speed throttle response desired for precision drifting, while sensorless compatibility expands the range of motors that can be used with the ESC.
Designed for 2S LiPo operation, the Microboost delivers up to 25A continuous current and 50A burst current.
This output provides the power needed for performance-oriented micro-scale vehicles while maintaining a compact size suitable for chassis where electronics space is limited.
The included LCD display provides convenient access to important ESC and motor information without requiring a smartphone for basic monitoring.
Operating information can include:
Battery voltage
ESC temperature
Motor RPM
Maximum RPM
Running time
The display also provides convenient access to programmable ESC settings for trackside adjustments.
The Microboost provides extensive adjustment options that allow drivers to tailor power delivery to their vehicle, track surface, tires, and driving style.
Settings include throttle response, braking characteristics, Boost Timing, Turbo Timing, and other performance parameters. These adjustments make it possible to configure the ESC for everything from smooth technical drifting to more aggressive racing setups.
The Microboost supports wireless programming through Furitek's mobile tuning system when paired with a compatible Furitek Wireless Module.
Wireless connectivity provides another way to configure ESC parameters and perform supported firmware updates without needing to remove the ESC from the vehicle.
The ESC can provide useful performance information for reviewing a vehicle's setup and operation. RPM and temperature information can be monitored to help drivers evaluate changes made to gearing, motor settings, timing, and other performance adjustments.
An integrated Backfire LED System can control compatible LEDs to create a simulated exhaust-flame effect.
This feature is particularly useful for detailed micro drift builds where realistic lighting effects and scale presentation are part of the vehicle setup.
Furitek's Rev-Limiter Effect adds another drift-focused feature by creating a simulated rev-limiter response at high motor speeds.
Combined with the Backfire LED System, it gives builders additional options for adding character and scale-inspired effects to a micro drift car.
The Microboost includes RaceReady Mode, which allows the ESC to automatically power on when the battery is connected.
This eliminates the need to press the power button every time the vehicle is switched on. The function can also be disabled for users who prefer conventional manual power control.
An integrated BEC provides selectable 5.5V or 7.4V output with up to 5A peak current.
The adjustable output provides greater flexibility when pairing the ESC with different micro-scale steering servos and receiver electronics.
The Microboost measures approximately 26 x 15 x 12.9mm and weighs only 10.3g, allowing it to fit into compact micro RC chassis without adding unnecessary weight.
Accessible solder points and replaceable wiring also provide additional flexibility when customizing wire lengths, connectors, or the overall electronics layout.
Designed for micro RC drift and racing applications
Suitable for 1/24, 1/27, and 1/28 scale vehicles
Red Edition
Sensored brushless motor support
Sensorless brushless motor support
2S LiPo compatible
25A continuous current output
50A burst current capability
LCD display included
Battery voltage monitoring
ESC temperature monitoring
Motor RPM monitoring
Maximum RPM monitoring
Running time monitoring
Adjustable throttle response
Adjustable braking characteristics
Adjustable Boost Timing
Adjustable Turbo Timing
Performance monitoring and data capabilities
Backfire LED System
Rev-Limiter Effect
RaceReady automatic power-on mode
Selectable 5.5V / 7.4V BEC output
Up to 5A BEC output
Furitek wireless programming support
Mobile app tuning capability with compatible wireless module
Firmware update support
Accessible solder connections
Replaceable wiring design
Compact 26 x 15 x 12.9mm footprint
Lightweight 10.3g construction
Suitable for RWD, AWD, and other compatible micro RC platforms

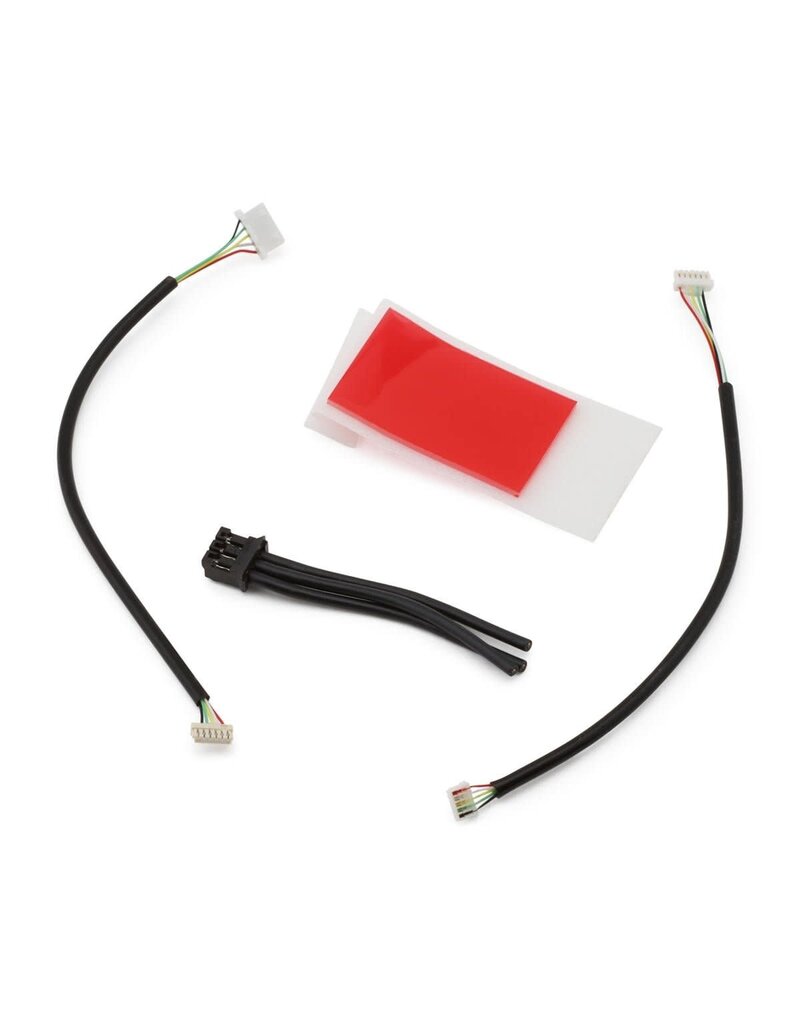

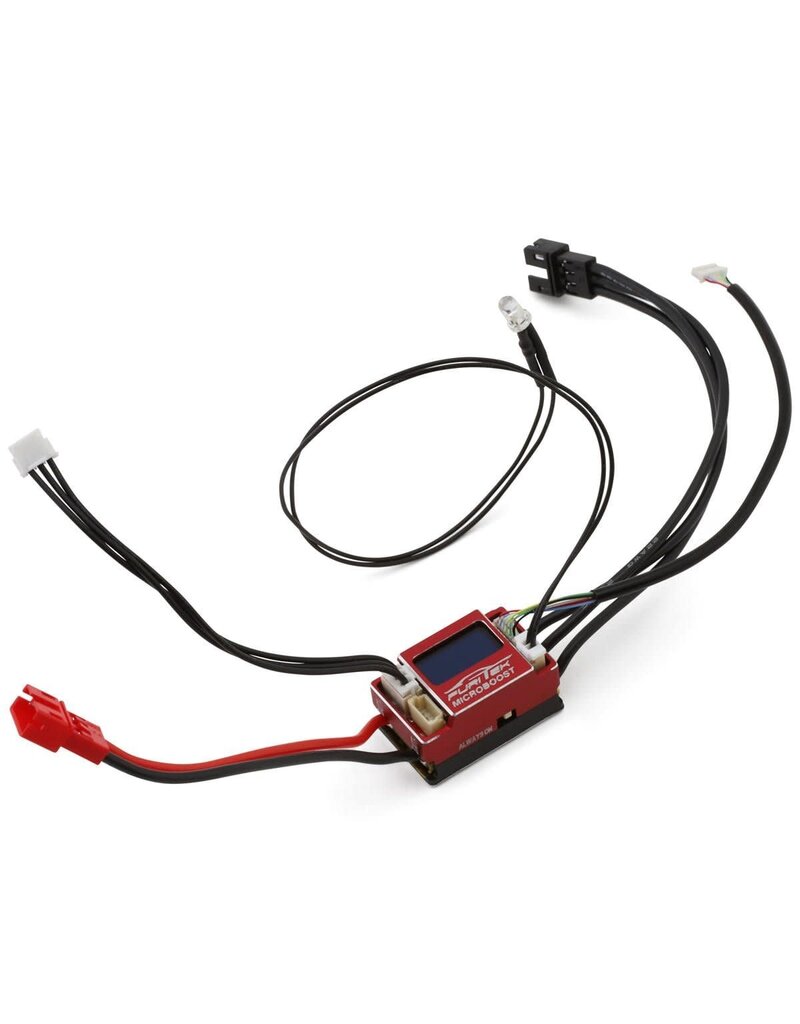

(1) Furitek Microboost 2S 25A/50A Brushless ESC – Red Edition
(1) LCD Display
(1) 6-Pin to 6-Pin Sensored Cable
(1) 6-Pin to 5-Pin Sensored Cable
(1) Receiver Signal Cable
(1) LED Backfire Module
