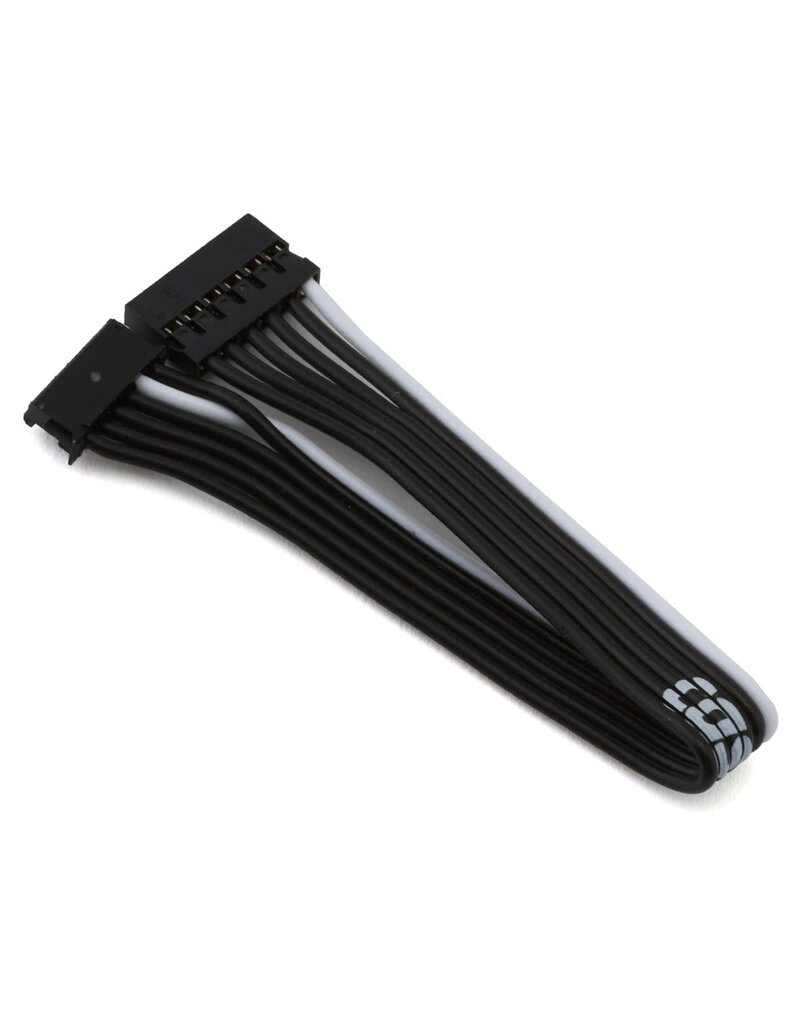

Sensor Wire Overview:
The Castle Creations Direct-Connect Sensor Wire provides a cleaner and more secure sensor connection by eliminating the need for a separate sensor harness adapter. One end features a standard ROAR sensor plug for connection to any compatible sensored motor, while the other end connects directly to compatible Castle Creations waterproof sensored-capable ESCs.
About the Direct-Connect Sensor Wire
Clean & Simple Installation
By removing an additional connection point, the Direct-Connect Sensor Wire helps simplify installation and reduce unnecessary wiring. Its direct-to-ESC design provides a clean setup while maintaining a reliable connection between the motor and ESC. Available in multiple lengths, it can be selected to suit different vehicle layouts and installation requirements.
Features:
- Direct connection to compatible Castle Creations ESCs
- Eliminates the need for a sensor harness adapter
- Standard ROAR sensor plug for sensored motors
- Cleaner and simpler wiring installation
- Available in multiple lengths
- Designed for Castle waterproof sensored-capable ESCs
Compatible ESCs:
- Mamba Micro X
- Mamba Micro X2
- Mamba X
- Mamba Monster X
- Mamba Monster X 8S
- Mamba XLX2
- Copperhead 10
Installation:
Mamba Micro X:
- Unplug the existing sensor harness or dust cover from the ESC.
- Plug in the Direct-Connect Sensor Wire.
- Align the white wire with the corresponding white dot on the side of the ESC to ensure proper orientation.
Mamba X:
- Remove the two screws beside the capacitors using a 1.5mm hex driver.
- Remove the wire harness retainer.
- Unplug the existing sensor harness from the ESC.
- Plug in the Direct-Connect Sensor Wire, aligning the white wire with the corresponding white dot on the side of the ESC.
- Reinstall the wire harness retainer and screws.
Available Lengths:
- 200mm (7.9")
- 250mm (9.8")
- 300mm (11.8")
Includes:
- (1) Castle Creations Direct-Connect Sensor Wire
This product was added on 08/13/2026.
