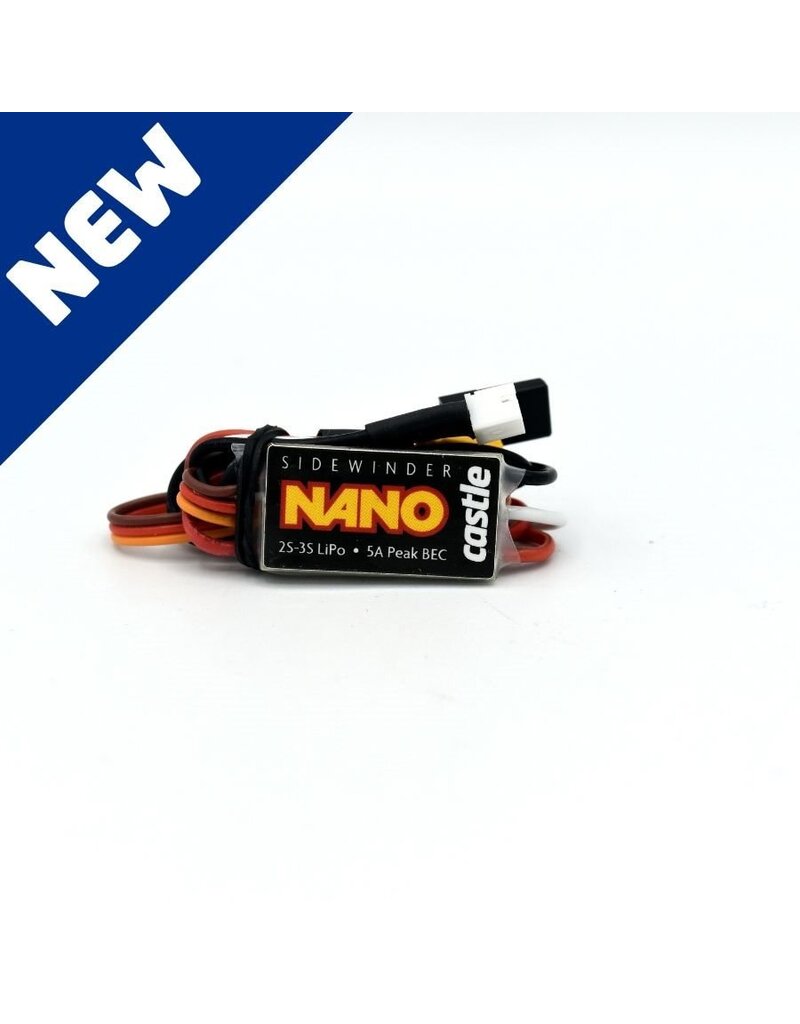

CASTLE CREATIONS CSE010017601 SIDEWINDER NANO MICRO PLUG-N-PLAY BRUSHLESS/BRUSHED ESC (12.6V) W/XT30 CONNECTOR

Availability:

In stock

We are thrilled to add a performance upgrade solution to the ever-growing micro-scale phenomenon in R/C. The SIDEWINDER NANO PnP may be small in stature, but it’s colossal in power and includes our proprietary CRYO-DRIVE™ Technology resulting in improved thermal performance during partial throttle operation wherethe majority of driving occurs.  The Sidewinder Nano is ready-to-run out of the box but can also be “tuned” for the drivers’ preferences using a Windows® based PC and a Castle Link USB adapter (sold separately) , or with a mobile device using Castle B-Link Bluetooth® Adapter (sold separately).

The PnP version comes with an XT30 battery connectors and JST plug pre-installed on the battery and motor wires. The JST plug is commonly found on most aftermarket outrunner style motors for 1/24th scale.

Please refer to our Surface Product Selector for recommended motor, battery and gearing for some of the more popular vehicles on the market.

PRODUCT FEATURES:



Input Voltage Range 2s-3s LiPo, 12.6V Max Sensorless and Brushed Running Modes Internal BEC 5V Fixed, 5A Peak CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs Castle Link tuning via Windows PC and a Castle Link USB adapter (sold separately)

Convenient TRANSMITTER PROGRAMMING for six common adjustable settings including cutoff voltage and drag brake Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store Audible alerts for easy diagnoses of common issues such as low-voltage cutoff Proudly designed and supported in Kansas, USA.  Backed by Castle Creations' 1-YEAR WARRANTY

PRODUCT APPLICATIONS:

Ideal for 1/24th scale 2WD or 4WD vehicles up to 1lbs  Vehicle examples: Axial SCX24, Axial AX24, Element Enduro24, FMS FCX24  1/18th crawlers up 2.25lbs  (no rock racing/hill climbing) Vehicle Examples: Axial UTB18, Traxxas TRX-4m, FMS FCX18



SIDEWINDER NANO COMES WITH:

Sidewinder Nano ESC ESC Quick Start Guide



This product was added on 08/01/24 by JM.
