| Article number: | 210000024521 |
| Availability: | Out of stock |

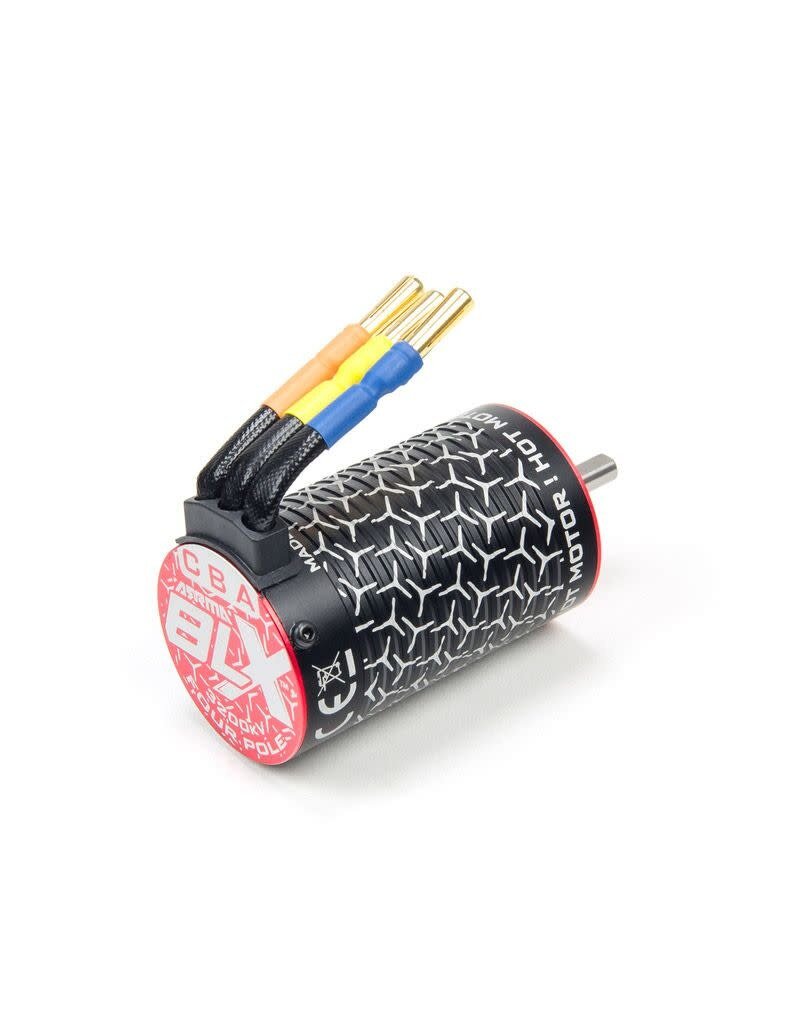

The ARRMA BLX3660 3200Kv Brushless Motor is a powerful 4-pole inrunner designed for high-performance ARRMA 4X4 vehicles. Its 3660-size construction provides a strong combination of speed and torque, while the 3200Kv rating makes it well suited for 2S and 3S LiPo-powered setups. It is designed to pair with the ARRMA BLX100 ESC.
The four-pole internal design provides smooth and consistent power delivery for acceleration, high-speed running, and demanding off-road use. A 5mm output shaft provides a durable connection for the pinion gear and drivetrain.
The black aluminum motor housing provides both durability and improved heat dissipation. Integrated cooling fins increase the available surface area to help manage motor temperatures during operation.
Gold-plated 4mm bullet connectors provide a secure electrical connection while allowing the motor wires to be disconnected easily when servicing or cleaning the vehicle.
| Specification | Details |
|---|---|
| Motor Type | Brushless Inrunner |
| Motor Size | 3660 |
| Kv Rating | 3200Kv |
| Poles | 4 |
| Input Voltage | 2S–3S LiPo |
| Length | 2.36in (60mm) |
| Diameter | 1.18in (30mm) |
| Shaft Diameter | 0.20in (5mm) |
| Shaft Length | 0.73in (18.5mm) |
| Motor Connectors | 4mm Bullet |
| Motor Cable Length | 1.77in (45mm) |
| Mounting Holes | M3 |
| Weight | 9.18oz (289g) |
| Recommended ESC | ARRMA BLX100 |
| Manufacturer Part Number | AR390214 |
