HOBBYWING HWI38010404COMBO MAX8/4268 2500KV

Article number:	210000037873
Availability:	In stock

• ESC:
• Waterproof
• Sensored or Sensorless Brushless Operation
• 6S LiPo Compatible
• Dual XT90 Plugs
• Motor:
• 4 pole rotor for high torque, fast acceleration response and stable power output.
• Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%).
• CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness.
• Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
• This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX8 G2 ESC
• • ESC:
  • Continuous Current: 160A
  • Peak Current: 1050A
  • Plug Type: XT90
  • Motor Type: Sensored  or Sensorless Brushless
  • Applications: 1/8 Touring Car, Buggy, Truggy, Monster Truck
  • Brushless Motor Limit 4S LiPo/12-Cell NiMH: 3000 (4274 size motor)
  • Brushless Motor Limit 6S LiPo/18-Cell NiMH: 2400 (4274 size motor)
  • LiPo/NiMH Cells: 3-6S LiPo / 9-18 Cell NiMH
  • BEC Output: 6V/7.4V/8.4V Switchable, Continuous current of 10A (Switch mode BEC)
  • Cooling Fan: Powered by the stable BEC voltage of 6V/7.2V
  • Size (LxWxH): 60x48x40.5mm
  • Weight: 192g
  • Programming Port: Fan/PRG Port
  • Motor:
  • Pole: 4
  • KV(No-load): 2500
  • R. (u): 0.0065
  • Current No-load A: 4.8
  • Motor D & L (mm): D=42, L=68
  • Shaft D & L of the projecting part (mm): D=5, L=18.5
  • LiPo(S): 2-4
  • Weight: 355g (12.52oz)
  • Applicable: 1/8th Off-Road, 1/10th Truck

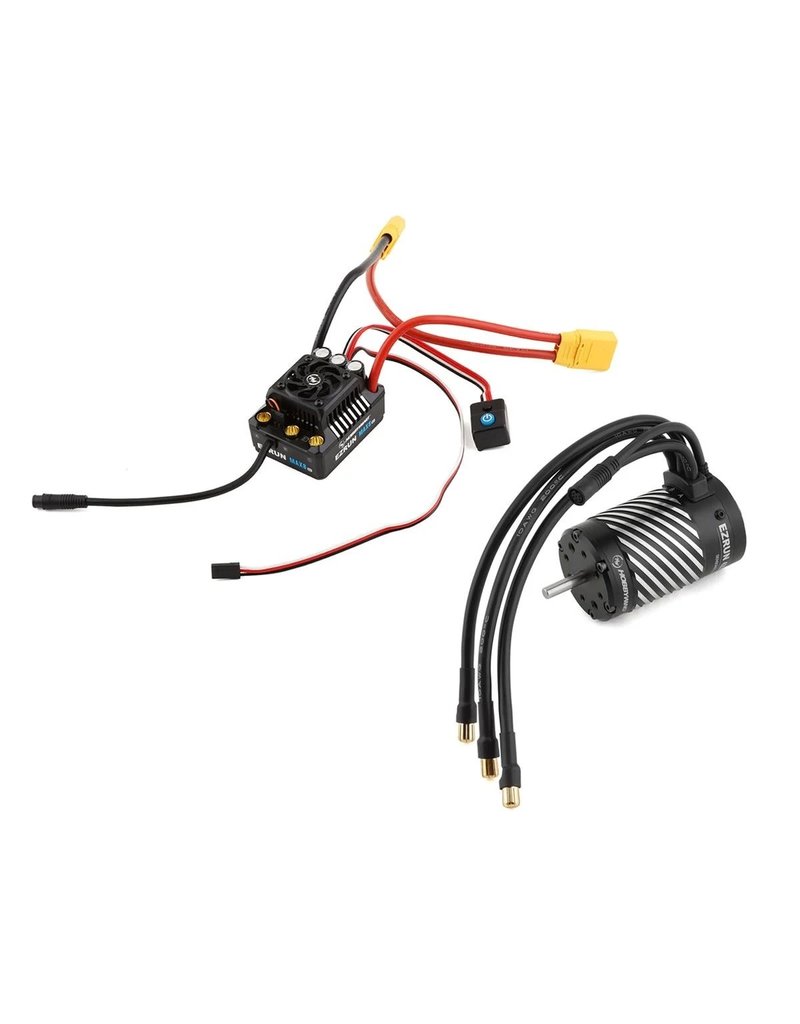

  • Includes:
  • EZRun Max8 ESC with XT90 connectors
  • Accessories (double sided tape, etc)
  • 4268SD - 2500kV Brushless sensored motor
• This product was added on 8/1/22 by CQ.
