FURITEK FTK-FUR-2596 LOSI® NASCAR SCORPION BRUSHLESS SENSORED ESC/MOTOR COMBO (5600KV)

Availability:

In stock

High-Performance ESC & Motor Combo

The Furitek SCORPION 5600KV Brushless Sensored ESC/Motor Combo delivers unmatched performance and precision for the 1/12 Losi NASCAR AWD RC truck. Designed with advanced technology, this system offers smooth throttle control, live tuning capabilities, and wireless setup through the Furicar app. Perfect for both beginners and seasoned drivers, the SCORPION combines power and efficiency to enhance your racing experience.

About the SCORPION Brushless Combo



Sensored and Sensorless Operation

This combo supports both sensored and sensorless modes, offering a constant current of 40A and a burst current of 70A. The flexibility ensures superior performance across various driving conditions, making it suitable for precision driving or high-speed racing.

Wireless Configuration and Live Tuning

The built-in Bluetooth module enables wireless parameter adjustments via the Furicar app on Android and iOS. Real-time tuning ensures seamless customization without interrupting your drive, delivering unmatched control at your fingertips.

Compact Design and Smooth Performance

With a lightweight and compact build, the Furitek SCORPION system enhances agility and responsiveness. The high-torque, sensored motor ensures smooth throttle response, maximizing driving precision for consistent on-track performance.

Features:

• Supports sensored and sensorless modes
• Built-in Bluetooth for wireless setup
• Real-time tuning via the Furicar app
• Smooth throttle control for precision driving
• Compact, lightweight design
• 2-3S LiPo battery compatibility
• Free lifetime firmware updates
• High-performance 5600Kv brushless motor
• Real-time telemetry for performance tracking
• Compatible with stock pinion and shaft

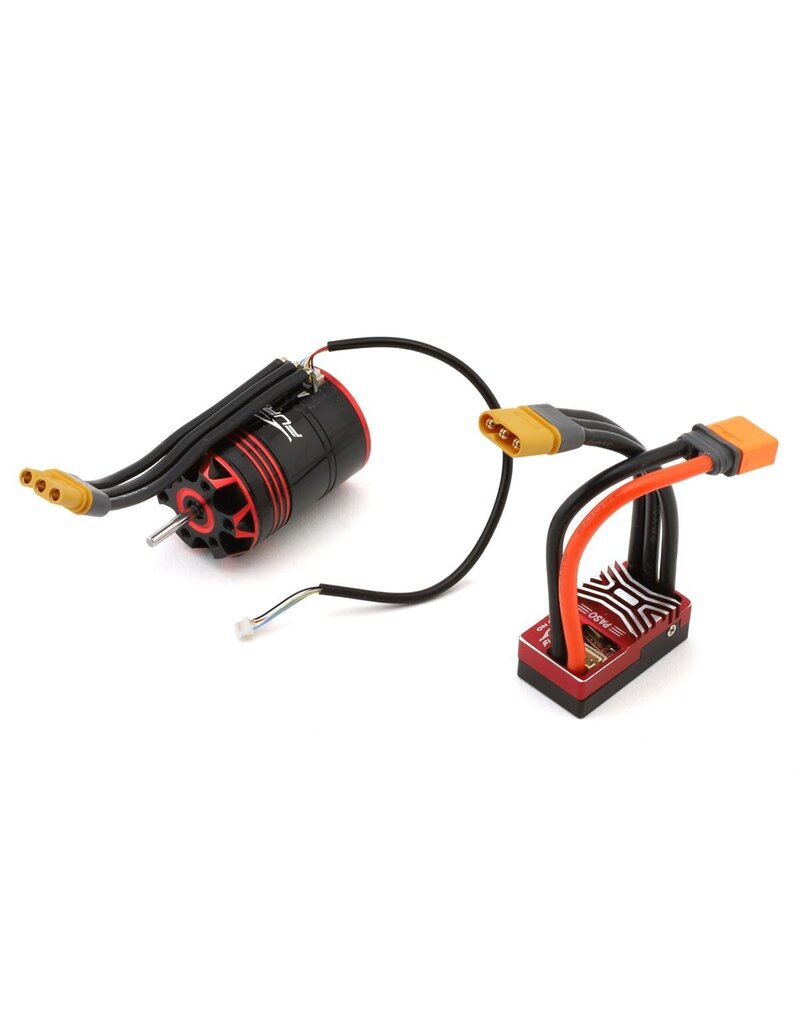

Includes:

• (1) Furitek 40/70A PASO Sensored/Sensorless ESC with built-in wireless module
• (1) Furitek 5600KV KINETIC Brushless Sensored Motor
• (2) Sensored Cables
• (1) Signal Cable
• (1) User Manual

Specifications:

ESC
Suggested Application	1/12
Motor Type	Brushless-Sensored
Input Voltage	2-3S LiPo (7.4-11.1V)
Continuous Current	40A
Burst Current	70A
Dimensions (LxWxH)	0.63x1.1x0.39in (16x28x10mm)
Weight	0.53oz (15.2g)
BEC Voltage	5.5/7.4V
BEC Continuous Current	-
BEC Peak Current	3A
Motor Connector	3 Pin
Battery Connector	IC2
Motor Wire	-
Battery Wire	-
Throttle Wire	-
Programming	Furicar Wireless App
Motor
Suggested Application	1/12
Size	5600kV
Type	Brushless-Sensored
Voltage	2-3S LiPo (7.4-11.1V)
Adjustable Timing	-
Watts	300
Connector	3 Pin
Dimensions	0.94x1.38in (24x35mm)
Shaft Length	0.47in (12mm)
Shaft Diameter	0.09in (2.3mm)
Weight	1.9oz (54g)

*Tech Note: Heat sink aluminum adaptor is not included, the angle of motor solder has been changed to fit in the Losi Nascar.
