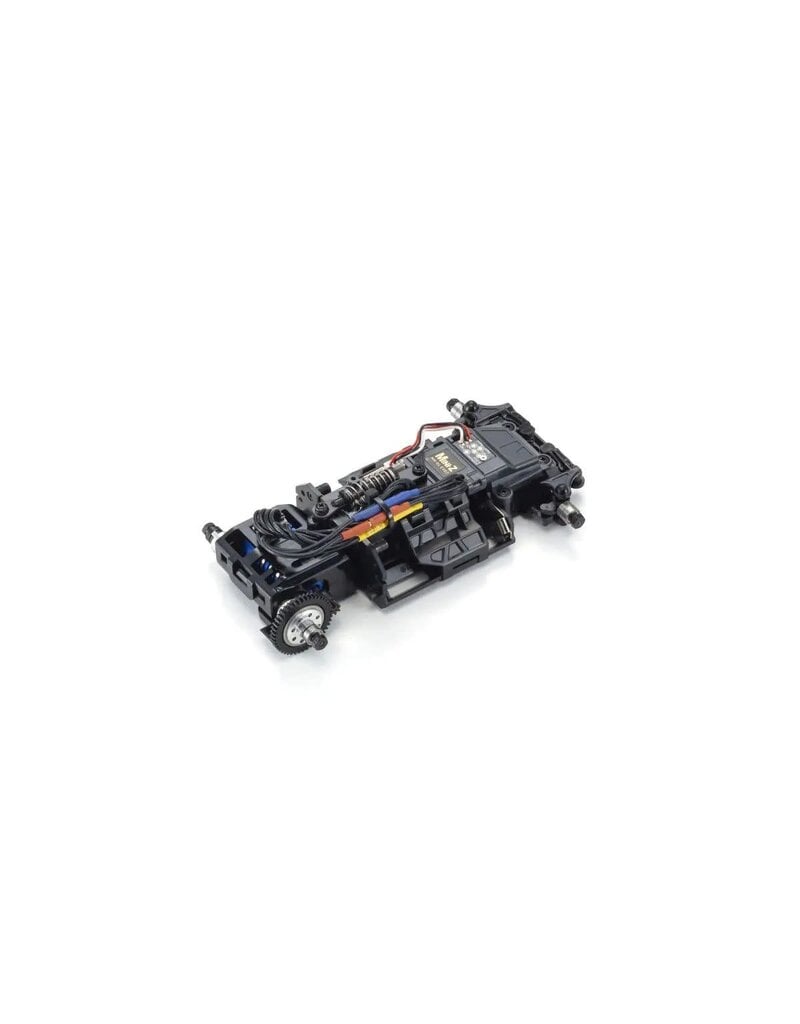

MR‑04EVO2 Chassis Set (W‑MM/5600KV) w/ V2 Gyro – Kyosho 32894G
Take your Mini‑Z Racer performance to the next level with the MR‑04EVO2 chassis set featuring a powerful brushless motor and integrated Version 2 gyro system — designed for precision handling, advanced tuning, and responsive control.
Overview
The MR‑04EVO2 represents a major evolution of the classic Mini‑Z platform, combining sensored brushless power with a lower center of gravity and refined suspension geometry for enhanced stability and agility. With reinforced front suspension arms and a Version 2 gyro unit included, this chassis delivers improved cornering performance and confidence‑inspiring control right out of the box.
Key Enhancements
The updated gyro system features a dedicated CPU for faster response and tighter control, allowing higher gain without compromising turn performance. A new RC unit supports motor RPM control, letting racers fine‑tune power delivery to meet class requirements and personal preferences. Adjustable tread settings and configurable wheelbase ensure compatibility with a wide range of body styles and race setups.
Specifications:
Length: 124.5 mm
Width: 72 – 76 mm
Height: 31 mm
Motor Mount: MM
Wheelbase: 98.0 mm (LL)
Tread (F/R): 63.5–65.0 mm / 61.5–65.0 mm
Motor: KYOSHO SPEED HOUSE XSPEED 56 Brushless (5600 kV)
Gear Ratios Included: 7.3, 6.3, 5.5, 4.9:1
Weight: ~135.5 g (body, tires, wheels not included)
Features:
Sensored Brushless Motor – Delivers smooth, efficient power suitable for competitive Mini‑Z racing.
Version 2 Gyro Unit – Enhances cornering precision and stability across varied driving conditions.
Motor RPM Control – Enables precise tuning for modern racing class rules.
Adjustable Tread & Wheelbase – Customizable to match body choices and handling preference.
Lower Center of Gravity – AAA battery mounting position improves stability and speed.
Ball Differential Included – Helps balance traction and wheel speed during cornering.
High‑Speed Control Support – Compatible with high‑end transmitters and receivers for ultra‑responsive performance.
Kit Content:
• Factory‑assembled MR‑04EVO2‑W‑MM chassis with 5600 kV brushless motor
• Front tread adjustment parts
• Pinion gears (6T, 7T, 8T, 9T)
• Wheel wrench and pinion tools
• Spare wheel nuts
Required to Run:
• Transmitter
• Compatible receiver (EVO/EVO2)
• ASC body
• 4× AAA batteries for chassis
• Batteries for transmitter
A perfect choice for racers and hobbyists seeking cutting‑edge Mini‑Z control, tunability, and race‑ready capability.
