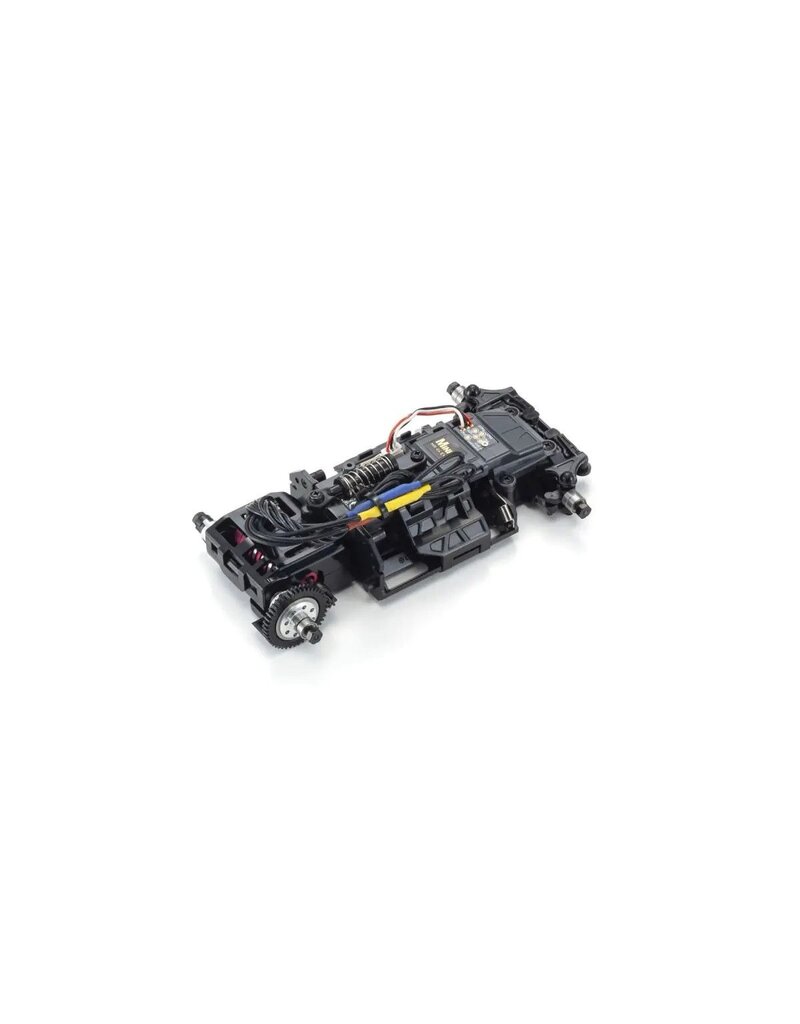

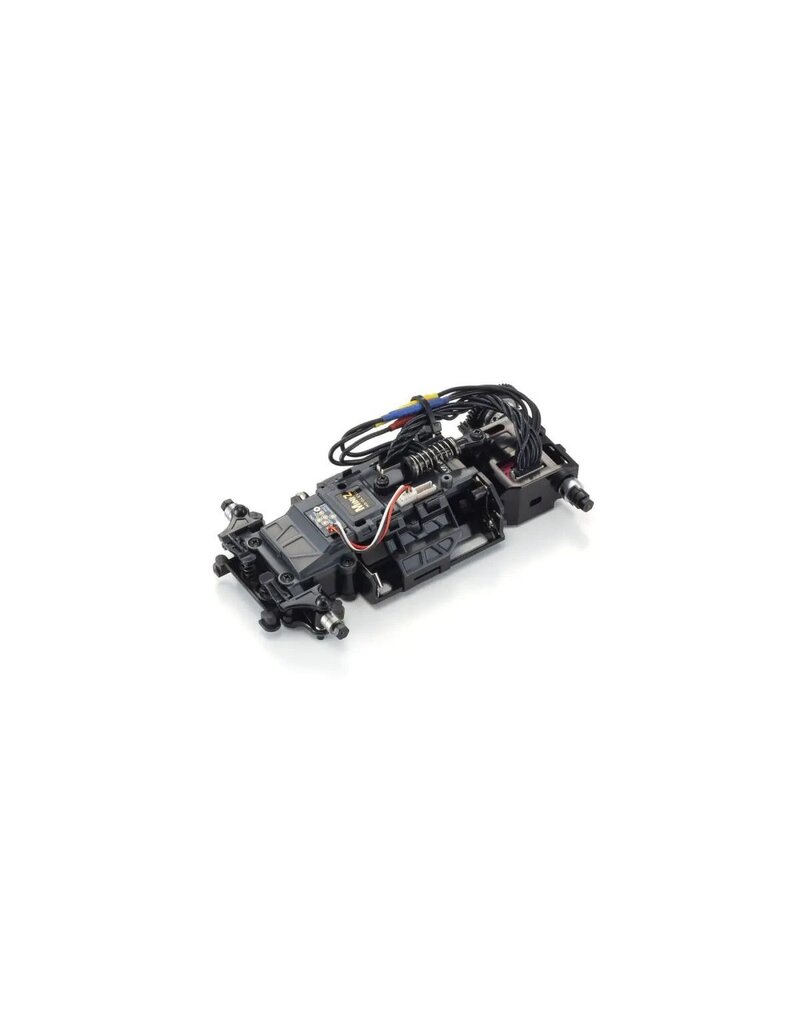

Mini‑Z Racer MR‑04EVO2 Chassis Set (W‑MM/8500KV) w V2 Gyro – Kyosho 32893G
Elevate your Mini‑Z racing performance with the MR‑04EVO2 chassis set equipped with a high‑speed brushless motor and integrated Version 2 gyro system — engineered for precision handling, enhanced stability, and responsive control in competitive RC driving.
Overview
The MR‑04EVO2 is a major update to the Mini‑Z platform, building on classic chassis architecture with a sensored brushless motor, reinforced front suspension arms, and a lower battery position for improved center of gravity. The included Version 2 gyro offers refined cornering performance and enhanced overall stability, making this chassis ideal for racers and hobbyists who want sharp handling and control.
A newly updated RC unit supports motor RPM control, allowing precise tuning to meet class‑specific regulations and personal preferences. Adjustable front tread settings and wheelbase configuration provide flexibility to tailor the chassis setup to your chosen body style and driving style.
Specifications:
Length: 124.5 mm
Width: 72 – 76 mm
Height: 31 mm
Motor Mount: MM
Wheelbase: 98.0 mm (LL)
Tread (F/R): 63.5–65.0 mm / 61.5–65.0 mm
Motor: KYOSHO SPEED HOUSE XSPEED 85 brushless (8500 kV)
Gear Ratios Included: 7.3, 6.3, 5.5, 4.9:1
Weight: ~135.5 g (body, tires, wheels not included)
Key Features:
Sensored Brushless Motor – Smooth, efficient motor response with competitive power delivery.
Version 2 Gyro Unit Included – Enhances cornering precision and overall control for improved lap times.
Motor RPM Control Support – Fine‑tune motor behavior to match racing class requirements.
Adjustable Front Tread & Wheelbase – Configure chassis setup to suit your body choice and driving preference.
Lower Center of Gravity – AAA battery placement improves stability and handling.
Integrated Ball Differential – Optimizes traction and rotational balance through turns.
3 mm Internal Diameter Ball Bearings – Reduce rotational resistance for smoother operation.
High‑Speed Communication Support – Compatible with high‑end transmitters for ultra‑responsive control.
Kit Content:
• Factory‑assembled MR‑04EVO2‑W‑MM chassis with 8500 kV brushless motor
• Parts set for changing front tread
• Pinion gears (6T, 7T, 8T, 9T)
• Wheel wrench and pinion tools
• Spare wheel nuts
Required to Run:
• Transmitter
• Compatible receiver (EVO/EVO2)
• ASC (AutoScale Body)
• 4× AAA batteries for chassis
• Batteries for transmitter
Perfect for racers and hobbyists seeking cutting‑edge Mini‑Z control, tunability, and precision performance.
